Thread / Rope / Fringe / Cord Twister Modular

Thread Twister Tool

This model is designed to twist multiple strands of yarn, thread, or embroidery floss together into one consistent cord for decorative or functional use. The design is modular, which means you can choose to spin any number of threads!

Perfect for keychains, fringe on the end of scarfs, or adding that special touch to your handmade creations — the possibilities are endless!

Features

• Efficient manual tool for creating twisted thread or yarn cords
• Produces uniform, even twists for clean results
• Compact design for easy handling and storage
• Works with various thread types — cotton, acrylic, embroidery floss, or fine yarns

Print Specifications

• Printable without supports
• Optimized for standard FDM printers
• 15% Infill, Gyroid Infill Preferred.

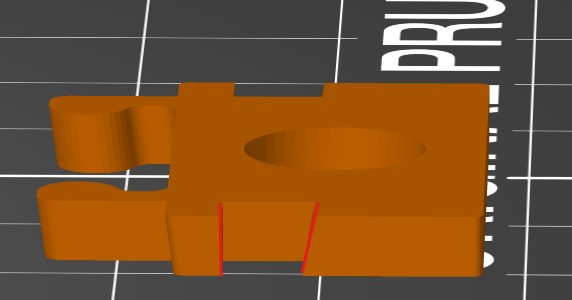

Print Post-Processing: Only the hook requires post-processing. Remove the internal support within the cross — the blue area shows a completed section, while the red and yellow still need to be removed.

Printing Instructions

For 2-thread use (full combined files available).  (<20g of filament and <2hr)

Print with or without a handle: the handle improves ease of use, but the gear can also be spun from the side. Assembly layouts are show below for printable files

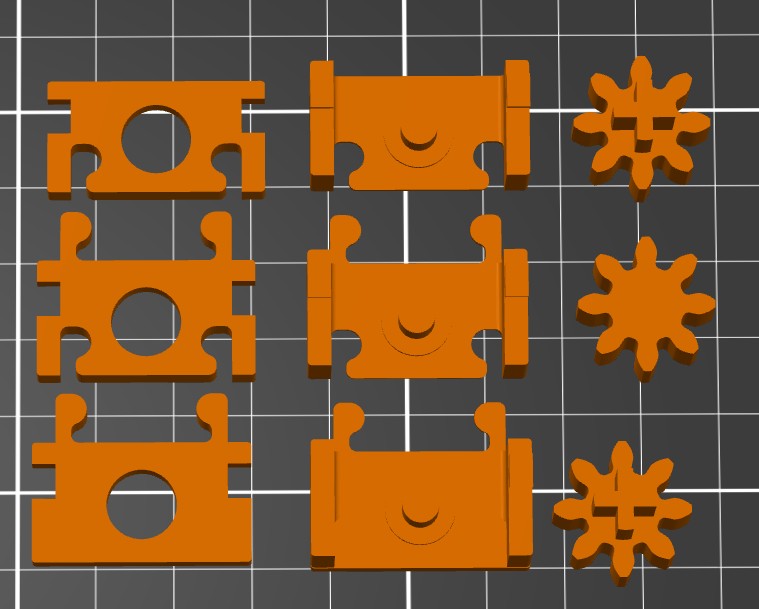

File: “Thread Twister - 2 Threads No Handle”

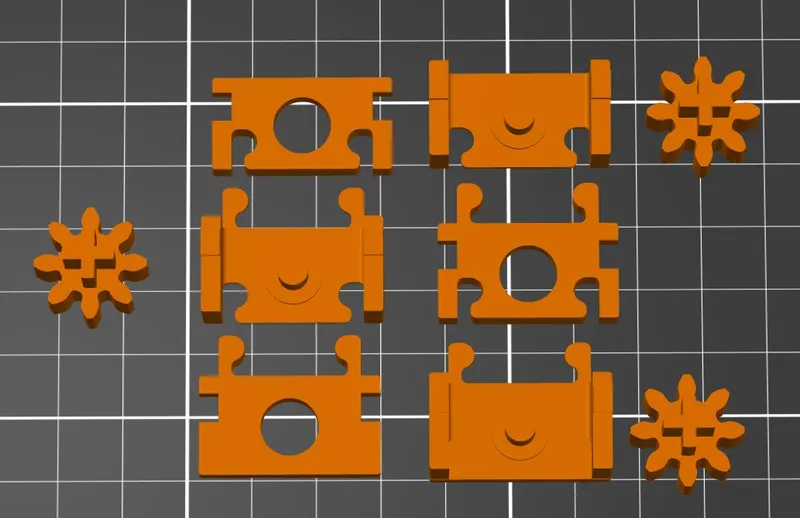

Print File: “Thread Twister - 2 Threads With Handle”

3+ Threads

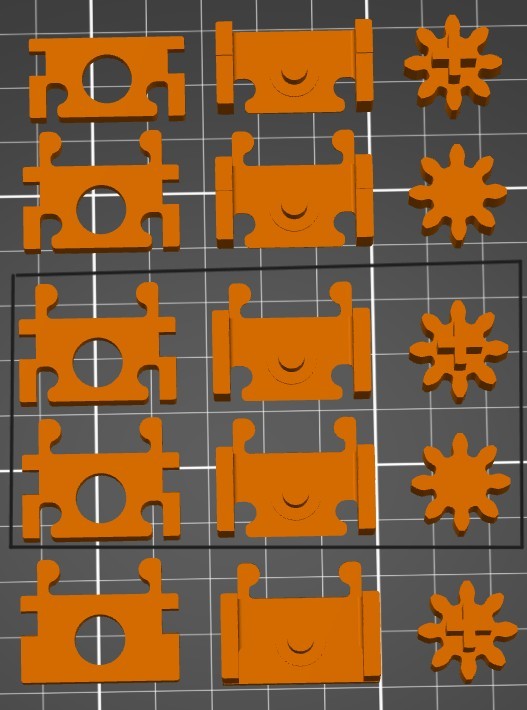

Option 1: “Thread Twister - 2 Threads” + “Middle Sets - Option 1” times x

Total Number of threads = 2 + n*x

          Where n = number of addition of threads

Option 2: Using a large gear system, you can add as many as you want to each side (fits up to 4 segments).

Assembly Instructions

1. Snap the bottom and top sections together to form the upper assembly. Ensure the slight slant on the sides all face the same direction.
2. Insert the gears, alternating between Gear Cross and Gear Flat. Note: All threads must twist in the same direction — alternating the flat and cross gears ensures this alignment.
3. Attach the top assembly to the bottom section. The easiest method is to wedge one side in first, then snap the other side into place. You may need to gently flex the walls to secure the fit.

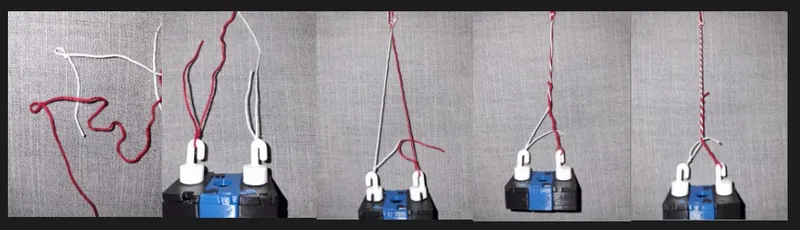

Use Instructions

1. Tie a small loop at each end of your threads. Do not tie the threads together yet.
2. Hook each loop onto a separate hook.
3. Once all threads are hooked, apply gentle tension and then tie the loose ends together. Begin turning the gears to twist the threads. Continue twisting until the strands begin to bunch slightly.
4. Twist the top of the threads by hand to start the spinning process — when released, the threads should stay twisted together.
5. Carefully remove the finished thread from the hooks.

Future goal: Print in place version for 2 threads
