DN75 Rain collector G3/4 V2

I made a second DN75 (75mm) with a G3/4" connector, the first i made was good but difficult to clean.

This version is easy to open, so you can remove leaves and dirt from it.

The collector insert and the back cap has a 1,75mm slot for a O-ring

I used a  string  TPU for that, which you can mold together with a lighter

• Collector insert             : 195mm
• Back cap                        : 158mm

Print settings i used

• Printed with PETG / ASA ABS
• 3 Perimeter
• 15% infill Gyro

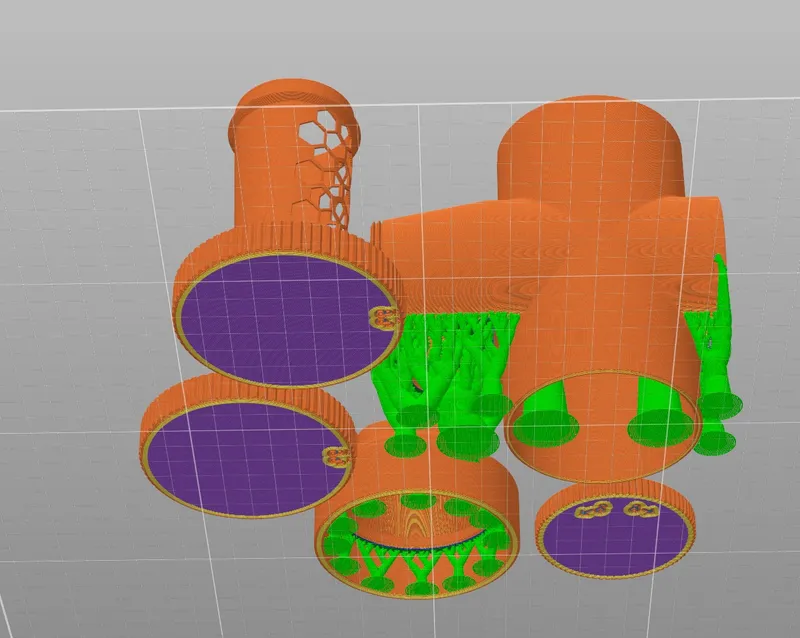

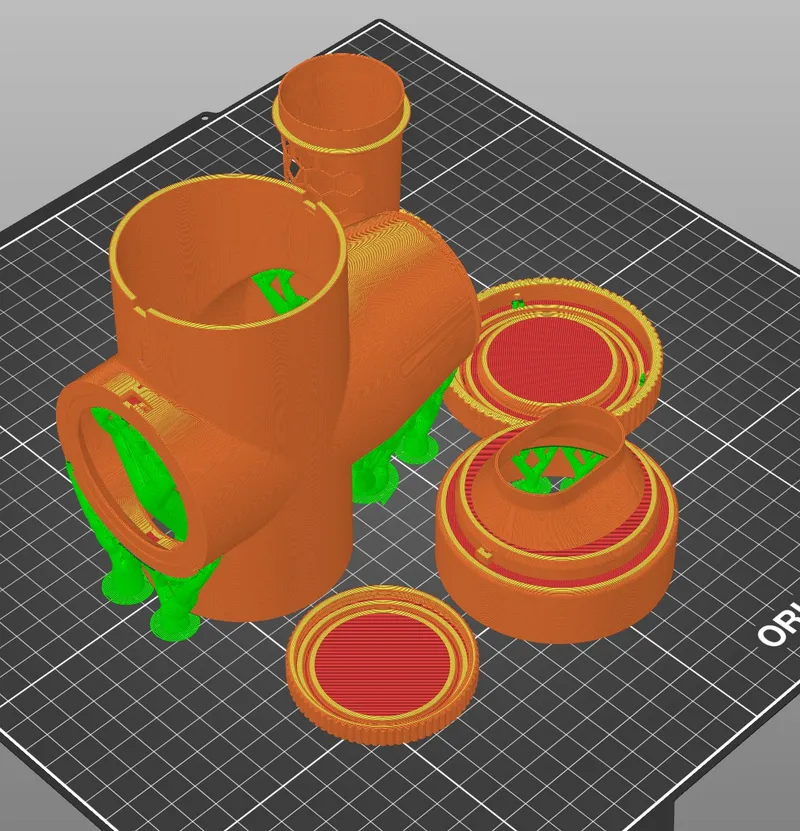

• organic supports needed as shown on the pictures
• make sure that the thread don't have supports

After Printing all parts you can click the funnel in the body (you can glue them together if you want)

You may need some lubricant for the thread and the open lock.

if you have some ideas let me know.
