Nail Polish Stand/Organizer (Parametric)
A parametric nail polish (or other small items/bottles) display stand.
6
26
0
118
updated
October 7, 2025
Description
PDFA parametric nail polish (or other small items/bottles) display stand.
What can you change?

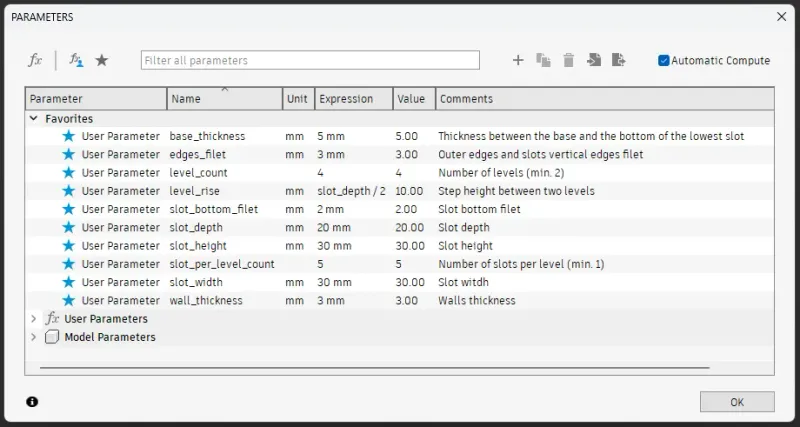

This model is fully parametric. Download the Fusion 360 design file, open it, then go to Solid → Modify → Change Parameters to customize any value, so you can:
- Fit any bottle/items: the slots width, height and depth are customizable.
- Change the number of levels (min. 2).
- Change the number of slots per level (min. 1).
- Change the steepness.
- Change the walls and base thickness.
- Change both the vertical and slots bottom filets.
Interresting parameters shortlist
| Parameter | Default Value | Description |
| level_count | 4 | Number of levels (min. 2) |
| slot_per_level_count | 5 | Number of slots per level (min. 1) |
| slot_width | 30 mm | Slot witdh |
| slot_height | 30 mm | Slot height |
| slot_depth | 20 mm | Slot depth (the base automatically adjusts to prevent a hole from forming, see base_thickness) |
| base_thickness | 5 mm | Thickness between the base and the bottom of the lowest slot |
| level_rise | 10 mm | Step height between two levels, update to change the steepness |
Tags
Model origin
The author marked this model as their own original creation.
