Dart Board Mount

Like the title says, this is a mount for mounting a dart board to a wall or a cabinet.

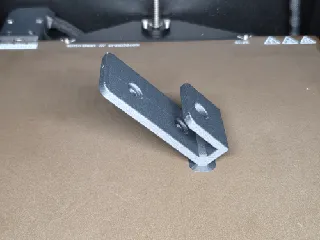

Don't mind the poor print quality in the photos. I printed it using my old Creality Ender 3 V2, so it came out terribly. I didn't take any pictures when I printed it again for a friend on my Prusa Core One, but it came out perfectly that time.

Print Settings

• Supports: Everywhere

Additional Materials Required

• 4 short pan head wood screws for dart board side
• 6 countersunk screws for wall/cabinet side
• 3 nails to nail spacers onto board

Instructions

1. Measure dart board height. Look it up for more detail, but the center of the bullseye should be 5'8" or 173cm from the floor. There are center holes in the mount parts.
2. Mark the center of your dart board, if there's not already a hole or mark there.
3. Line up the center of the board side with the mark, and screw it in. No pilot holes should be necessary.
4. Screw in the wall side to the wall or cabinet.
5. Nail at least three spacers equidistant apart into the back of your board so it doesn't lean.
6. Slide the dart board onto the wall mount.
