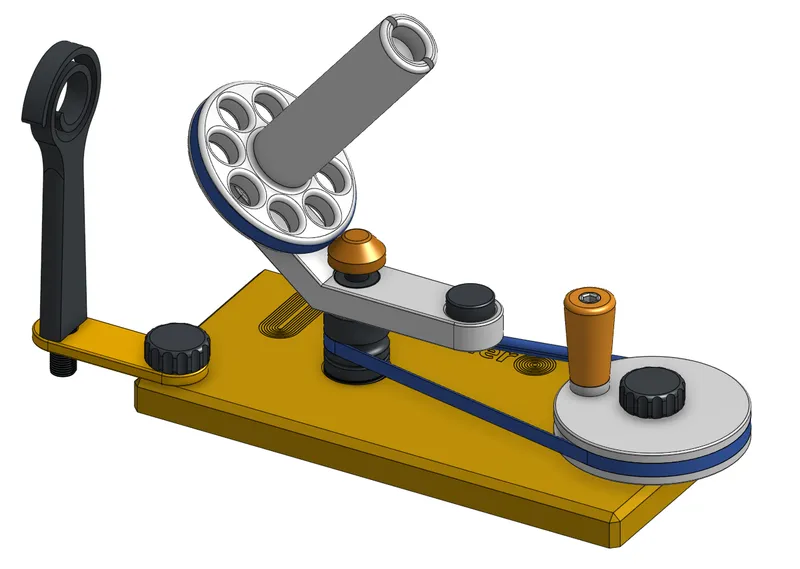

3D Printed Yarn Winder – 100% Printable

Summary

This is a 100% printable yarn winder. It allows you to wind individual threads into balls easily, quickly and without any problems.

Key Features

• Fully 3D printable, requires no screws, bearings, rubber bands or glue
• Fast yarn winding with a 1 to 3.25 transmission ratio
• Easy yarn removal from the machine thanks to open guide spiral, no cutting required
• Print in place rotary handle, allows comfortable turning

New Version Available

I have released an improved, fully PLA-printable gear-driven version of this yarn winder.
It includes all upgrades from this model plus a redesigned mechanism for easier printing and smoother operation.

New Version - only PLA, 100% printable

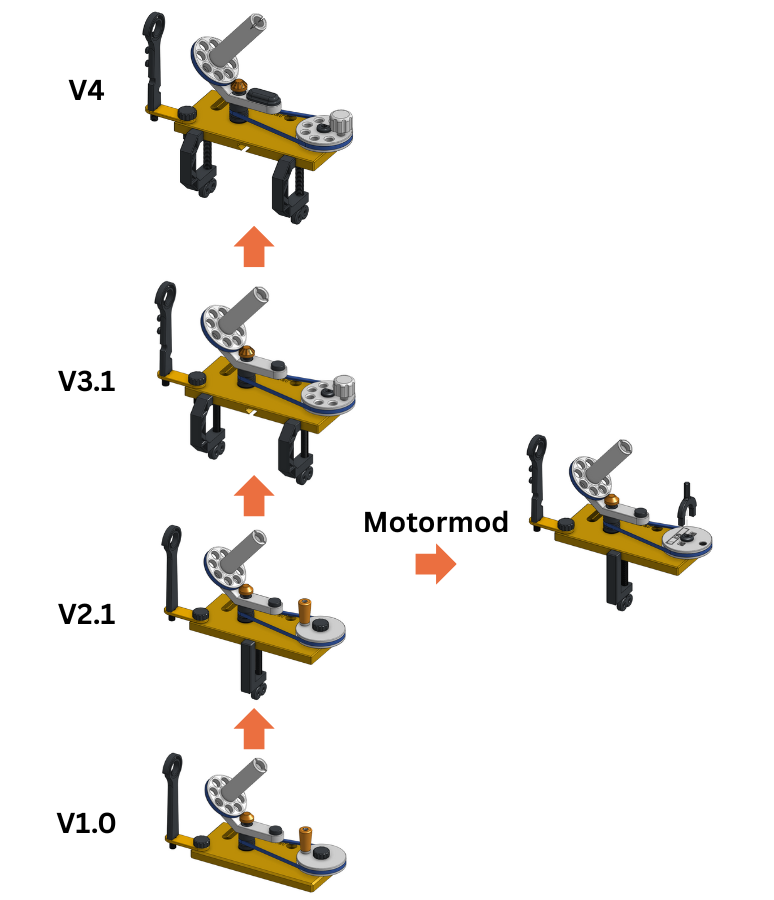

Development tree

Changelog

	Changes

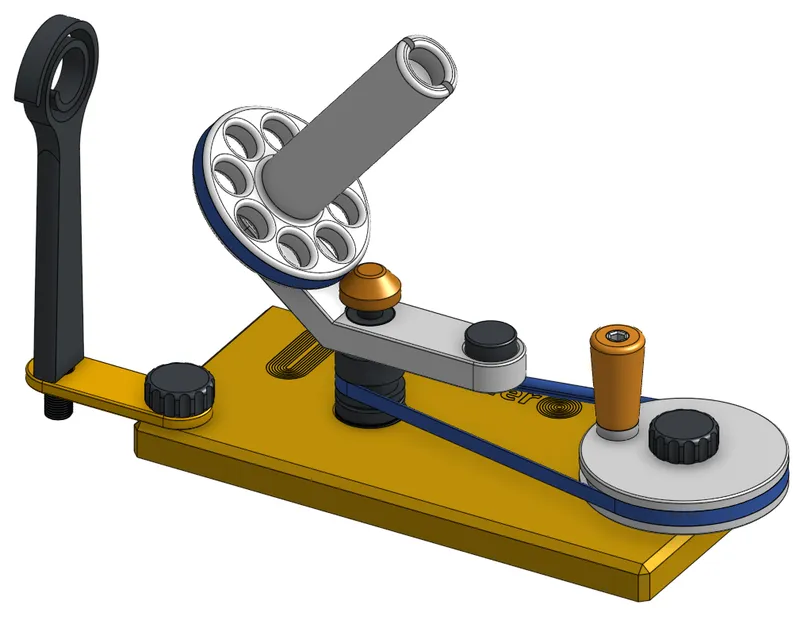

V1.0	Initial Release
V2.0	The Clamp Update New printable clamp for stable table mounting, opening on both sides in plate [right-handed use, left-handed use] for attaching the table clamp. Photos of the table clamp added.

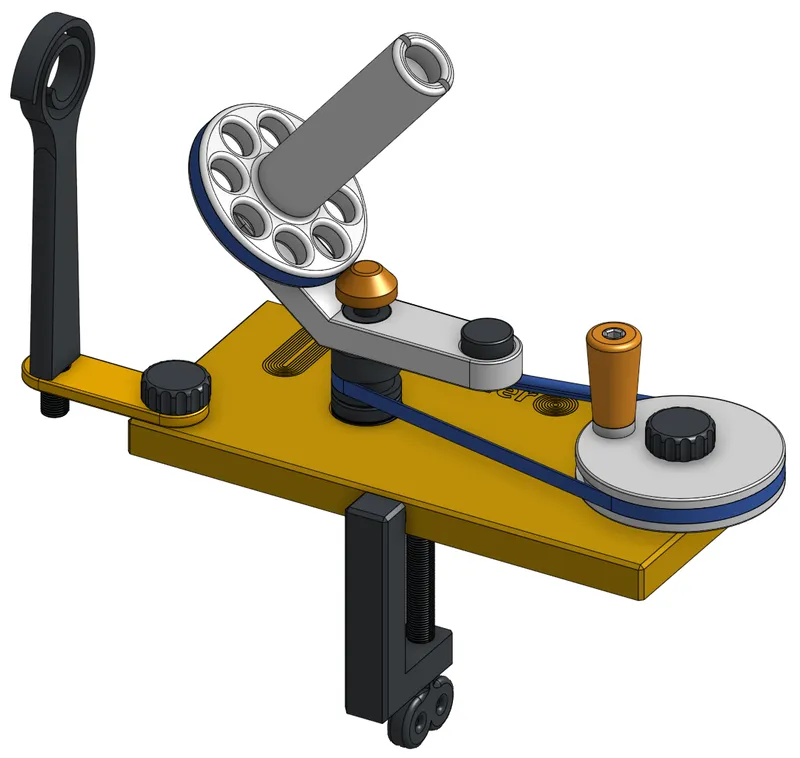

V2.1	Service-Update Table clamp redesigned, longer bracket, smaller contact surface to increase pressure. All STL files are now in the optimal print position. All STLs now have printing instructions. Project description has been revised for better clarity. Print files for model V2.1 added for the MK4s

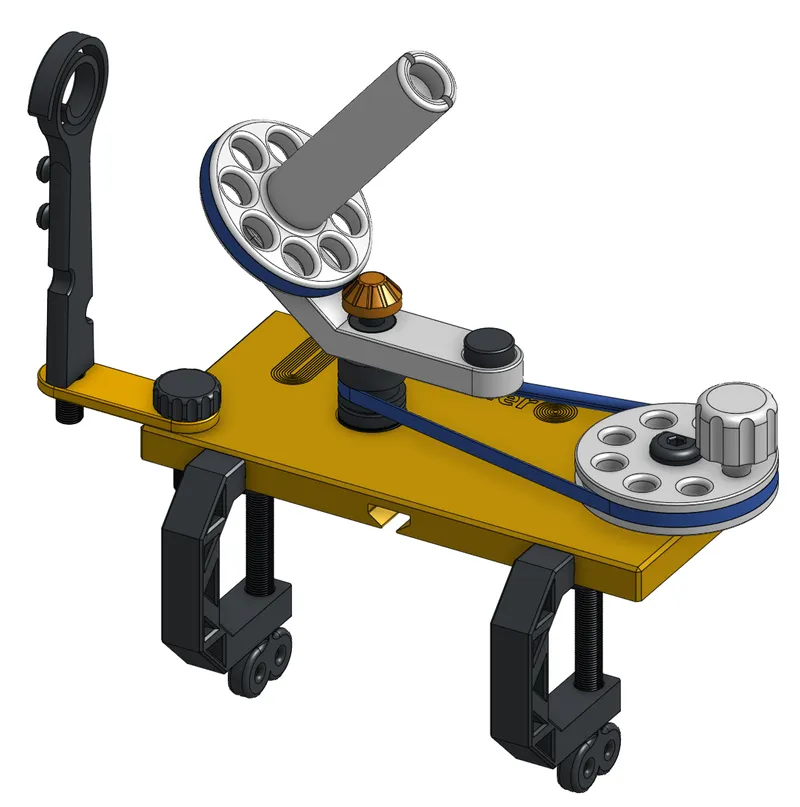

V3.0	The Tension and Motor Mod Update Yarn guide improved with deflection options to increase yarn tension New drive wheel with emergency operation and recesses for the quick-release adapter, for operation with a cordless screwdriver Drive wheel screw revised (head reduced in size and internal hexagon socket) Photo and GIF of the new version parts  Add to the list of materials for the prototype shown
V3.1	Service-Update At the request of @drbdanieli_589544, table clamp revised, several openings in the plate to attach multiple clamps. New foot for more stable standing At the request of @ClimbingSeb_1732611, new print-in-place drive wheel At the request of @ClimbingSeb_1732611, new axle end with more grip Various threads revised
V4.0	Thread-Update At the request of @MomoKo_3884049, the spinning wheel has been extended The weight has been optimized All threads have been completely revised and improved The entire project has been tested in PLA (excluding the ring and the drive belt), printed with 0.2 mm layer height and 15% infill

Parts that have been superseded can be found in the ‘Older Version Parts’ folder.

Assembly

Tip: Lightly sanding and lubricating the rotating parts can improve smoothness.

Step 1 – Spinning Unit Preparation

• Screw the spinning wheel screw into the spinning centre.
• Place the weight into the recess.
• Screw the drive screw into the spinning centre.

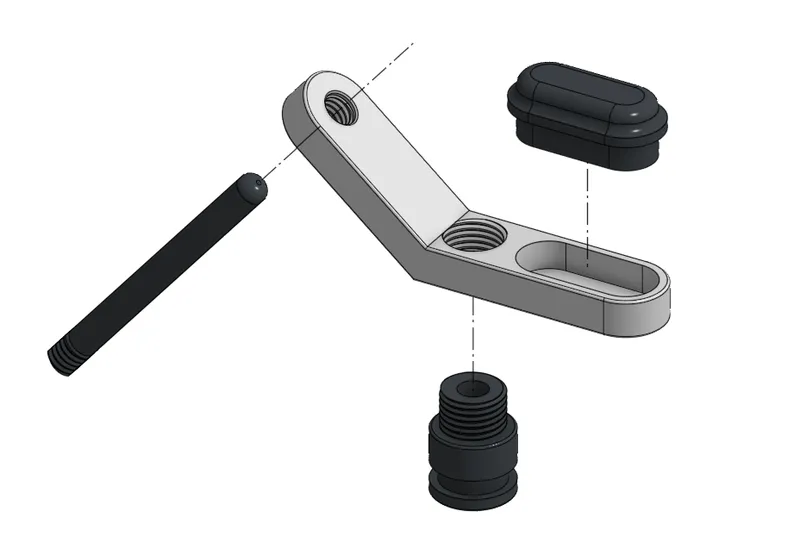

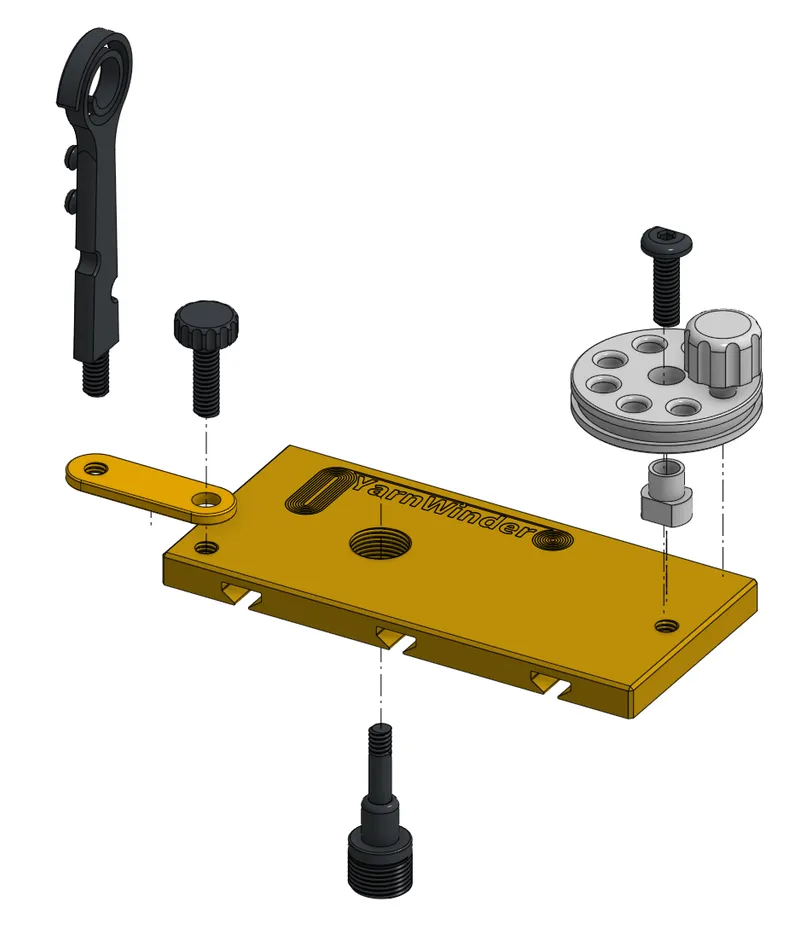

Step 2 – Plate Assembly

• Attach the outrigger to the plate using the outrigger bolt.
• Screw the yarn guide into the outrigger.
• Screw the axis into the plate.
• Position the drive wheel spacer in the plate recess and mount the drive wheel on top.
• Fasten the drive wheel using the drive wheel screw.

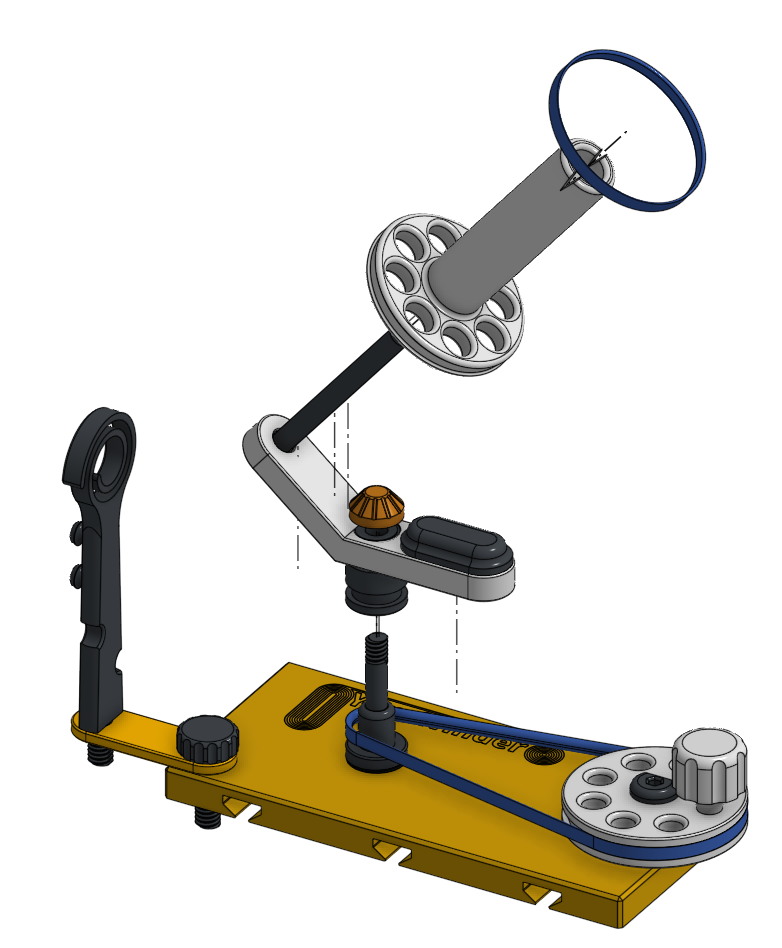

Step 3 – Connecting Drive System and Spinning Unit

• Place the drive belt into the drive wheel and lay it ready around the axis.
• Slide the fully assembled spinning unit onto the axis and secure it with the axis end.
• Stretch the ring onto the spinning wheel.
• Place the spinning wheel onto the spinning wheel screw.

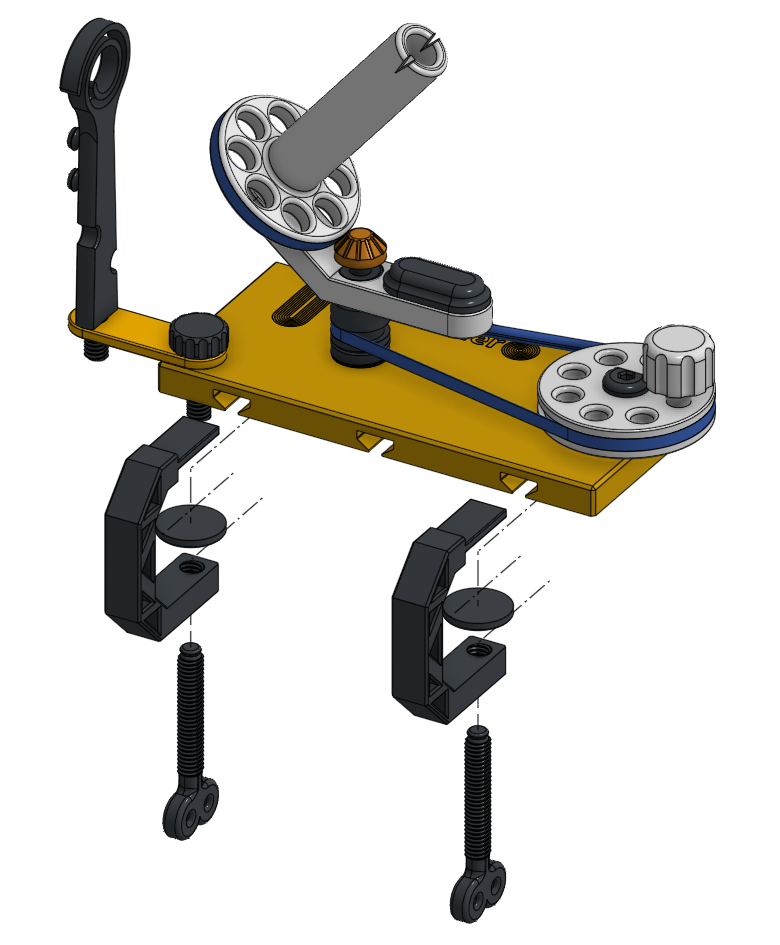

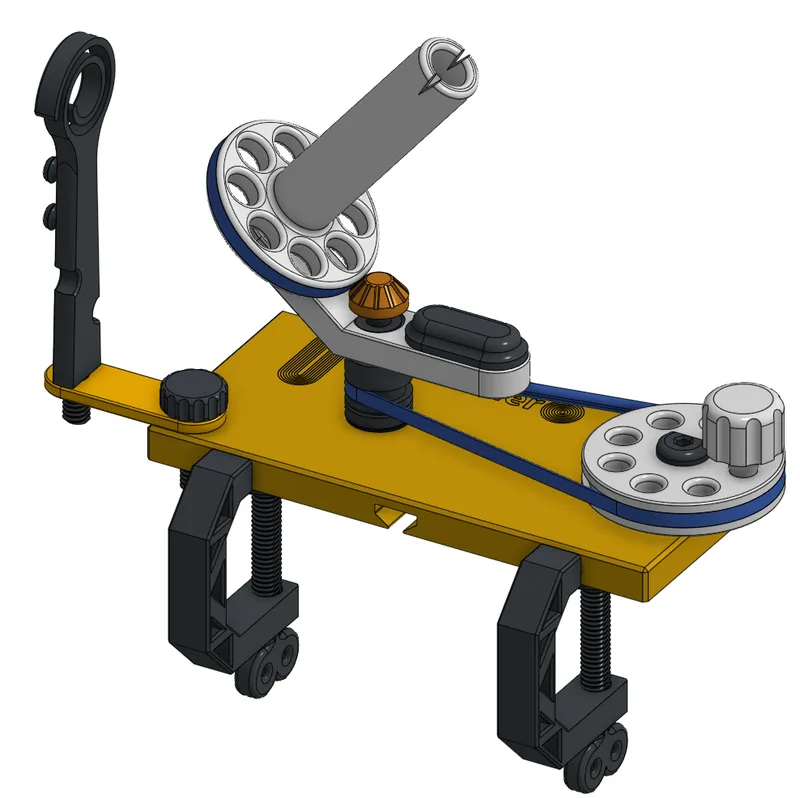

Step 4 – Table Clamps

• For as many table clamps as needed, screw the clamping screw through the clamp mount.
• Push the foot onto the joint of the clamping screw.
• Insert the clamp mount into the plate wherever required and tighten to secure.

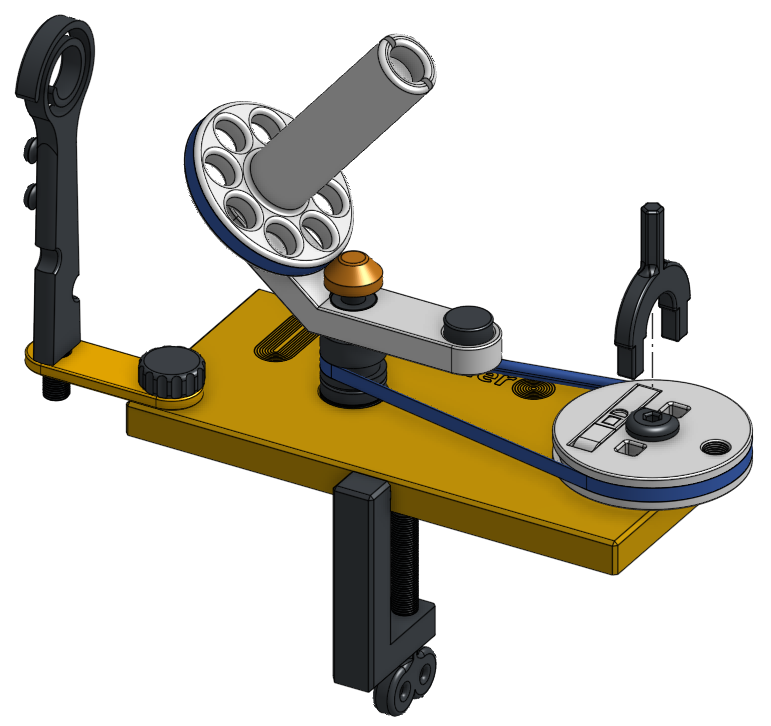

Motor-Mod

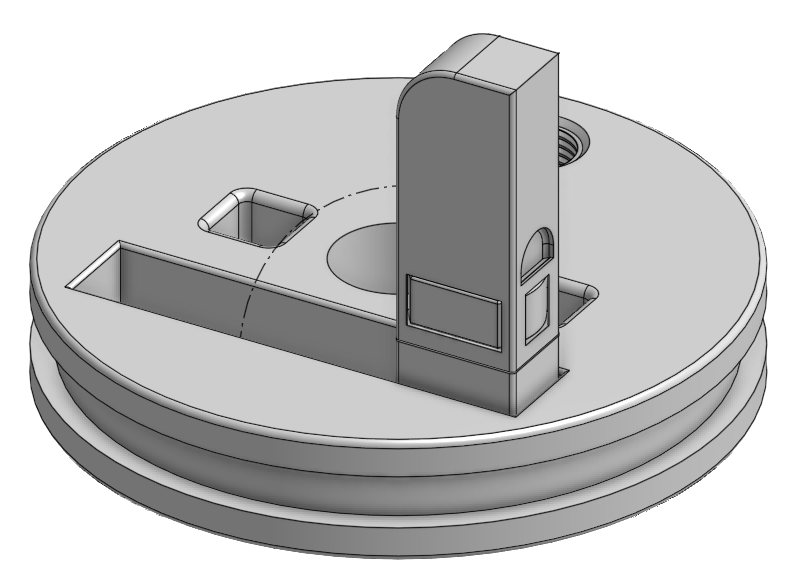

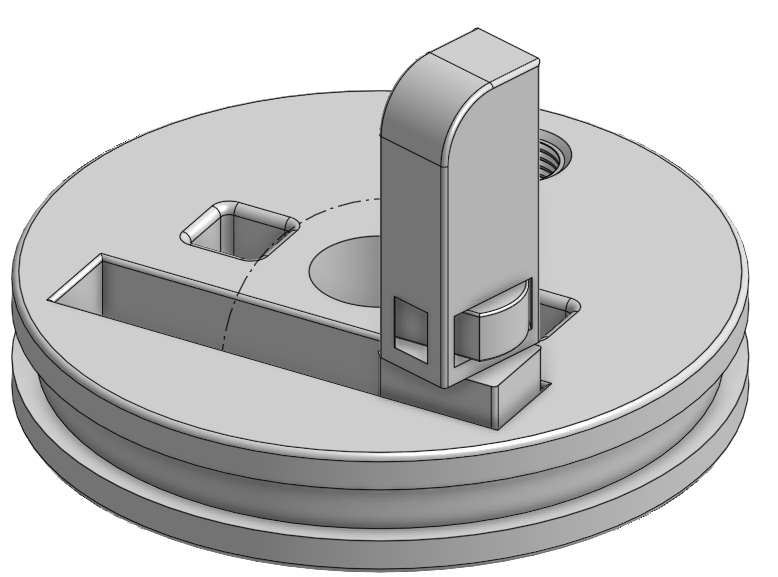

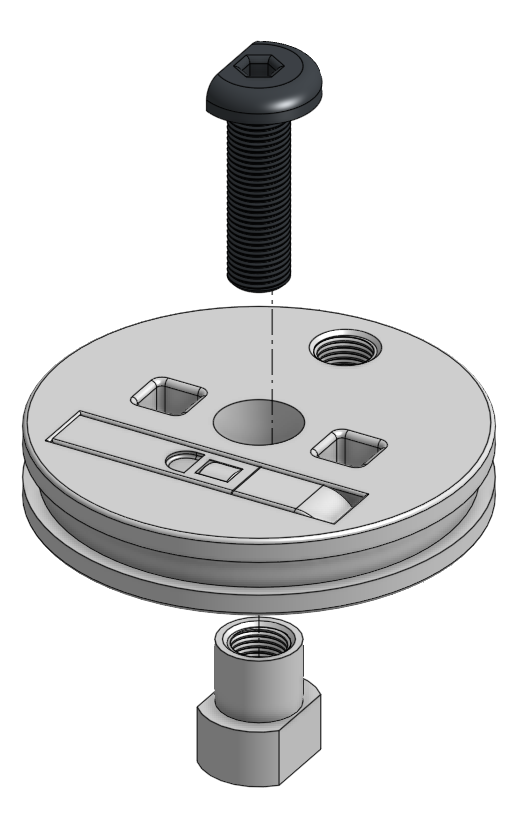

The motor mod allows the yarn winder to be operated with a cordless screwdriver or similar device. The modified drive wheel has an emergency turning handle so that the wheel can also be operated without a motor. When not in use, the emergency turning handle folds seamlessly into the wheel.

Motor Mod README!

The motor mod should be used with caution. Since the parts are all PLA or PETG, friction heat can cause the parts to melt if operated too quickly.

Done :)

Leave a comment if you like the project or leave a make if you made it too :) have fun winding

Prototype material list

• TPU RECREUS FILAFLEX 70A Navy Blue
• PETG Azure film PETG Black
• PLA 3DJAKE ecoPLA Wood Dark Brown, 3DJAKE matte PLA White, R3D Silk Copper
