D&D Female Elf Mage HueForge Filament Painting (2 Colors)

D&D Female Elf Mage

HueForge Filament Painting (2 Colors)

By Kimball Marston

© 2025-07 Kimball Marston and Mars-TonFoundries

Visit our Store for Bookmarks at:

Mars-TonFables.com

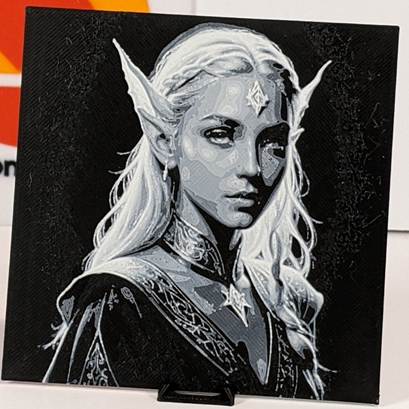

✨ With timeless grace and an aura of arcane power, this Female Elf Mage embodies the elegance and mystery of elven spellcraft. Her mastery of the arcane is etched into every gesture, her portrait capturing both wisdom and wonder in equal measure. Brought to life through HueForge filament painting, this piece blends fantasy art with 3D printing magic—perfect for Dungeons & Dragons adventurers, fantasy collectors, and lovers of enchanted imagery.

Designed for easy two-color printing, this HueForge model doesn’t require a multi-material printer: simply pause at layer 7 (0.64mm) to swap from black to white filament.

The artwork was created using a custom AI image generator, then refined and converted into a HueForge STL. Every setting was tuned manually for the best result. This ensures unique, fantasy-inspired wall art perfect for D&D fans and 3D printing enthusiasts.

🖨 Print Setup

• Nozzle: 0.4mm
• Layer Height: 0.08mm (first layer 0.16mm)
• Bed: Smooth High Temp (other beds also fine)
• Top Layers: 0
• Bottom Layers: 99
• Infill: 100% (rectilinear)

·         Prime Tower Enabled:

o    Width: 10mm

o    Prime Volume: 10mm³

• Brim Width: 3mm

·         Brim Type: Mouse ear (Optional)

o    Brim Width: 5mm

o    Brim-Object gap: 0.1mm

o    Brim ear max angle: 125

o    Brim ear detection radius: 1mm

🎨 Filament Swap

·         Start with Black HS-PLA+ (TecBears) – TD ~0.3

·         At Layer 7 (0.64mm) → switch to White PLA+ (high TD recommended)

For the best light and shadow effects, use a white PLA with a high transmission distance (TD). Below are some tested options:

·         Sunlu PLA White – TD 7.5

·         Creality PLA White – TD 10.4

·         Elegoo PLA White – TD 5.5

·         TecBears HS-PLA+ -- TD 7.8



📏 Model Info

• Size: 100 × 100mm
• Thickness: 1.52mm (Base: 0.48mm)
• Infill: 100%

This is the instructions from HueForge:



Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm

  The Model is 100x100mm in size

 You may print at higher layer heights below the Base Thickness of 0.48mm

 The Max allowed Thickness is 1.52mm and the Actual Thickness is 1.52mm

 Filaments Used:

            #000000 PLA+ TecBears Black  Transmission Distance: 0.3

            #ffffff PLA+ TecBears White  Transmission Distance: 7.8

This print uses 2 unique filaments

 Swap Instructions:

            Start with Black

            At layer #7 (0.64mm) swap to White for the rest.



If you enjoy this model, please Like, Comment, and Post your prints—I’d love to see them!
A Commercial License option will be available soon for makers who want to sell prints.
