D&D Female Dwarf Ranger HueForge Filament Painting (2 Colors)

D&D Female Dwarf Ranger

HueForge Filament Painting (2 Colors)

By Kimball Marston

© 2025-07 Kimball Marston and Mars-TonFoundries

Visit our Store for Bookmarks at:

Mars-TonFables.com

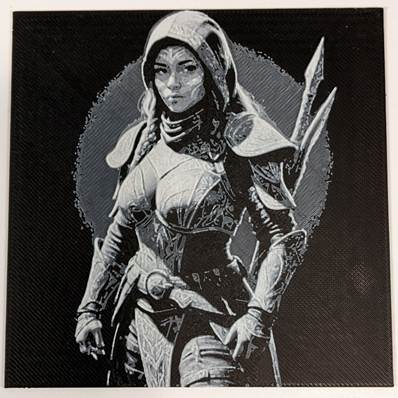

⛰ Stout of heart and sharp of eye, this Female Dwarf Ranger is as skilled beneath mountain pines as she is in the shadow of stone halls. With crossbow or bow in hand, she blends dwarven resilience with a ranger’s mastery of the wild, making her both protector and relentless hunter. Captured in portrait style, this HueForge filament painting highlights her steadfast spirit and unyielding bond to the land—an ideal piece for Dungeons & Dragons fans, fantasy art collectors, and lovers of heroic imagery.

Designed for easy two-color printing, this HueForge model doesn’t require a multi-material printer: simply pause at layer 7 (0.64mm) to swap from black to white filament.

The artwork was created using a custom AI image generator, then refined and converted into a HueForge STL. Every setting was tuned manually for the best result. This ensures unique, fantasy-inspired wall art perfect for D&D fans and 3D printing enthusiasts.

🖨 Print Setup

• Nozzle: 0.4mm
• Layer Height: 0.08mm (first layer 0.16mm)
• Bed: Smooth High Temp (other beds also fine)
• Top Layers: 0
• Bottom Layers: 99
• Infill: 100% (rectilinear)

·         Prime Tower Enabled:

o    Width: 10mm

o    Prime Volume: 10mm³

• Brim Width: 3mm

·         Brim Type: Mouse ear (Optional)

o    Brim Width: 5mm

o    Brim-Object gap: 0.1mm

o    Brim ear max angle: 125

o    Brim ear detection radius: 1mm

🎨 Filament Swap

·         Start with Black HS-PLA+ (TecBears) – TD ~0.3

·         At Layer 7 (0.64mm) → switch to White PLA+ (high TD recommended)

For the best light and shadow effects, use a white PLA with a high transmission distance (TD). Below are some tested options:

·         Sunlu PLA White – TD 7.5

·         Creality PLA White – TD 10.4

·         Elegoo PLA White – TD 5.5

·         TecBears HS-PLA+ -- TD 7.8



📏 Model Info

• Size: 100 × 100mm
• Thickness: 1.52mm (Base: 0.48mm)
• Infill: 100%

This is the instructions from HueForge:

Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm

  The Model is 100x100mm in size

 You may print at higher layer heights below the Base Thickness of 0.48mm

 The Max allowed Thickness is 1.52mm and the Actual Thickness is 1.44mm

 Filaments Used:

            #000000 PLA+ TecBears Black  Transmission Distance: 0.3

            #ffffff PLA+ TecBears White  Transmission Distance: 7.8

This print uses 2 unique filaments

 Swap Instructions:

            Start with Black

            At layer #7 (0.64mm) swap to White for the rest.

 If you enjoy this model, please Like, Comment, and Post your prints—I’d love to see them!
A Commercial License option will be available soon for makers who want to sell prints.
