1lb Plastic Ant

This is a 1lb Plastic Ant that was made for use in Combat Robotics. I have been developing this robot for around 2 years now. Before I retire from Robotics and the internet for 2 years, I want to post the designs so someone can carry on the legacy.

This robot has consistently ranked among the top 30 bots in the nation, placing 5th in nationals and achieving multiple podium finishes at various events. This is a dangerous robot, so please make sure you test safely and do research into how to build combat robots and safe practices with them generally. Only test the weapon when not in the room. For a test box look at what SPARC and SCAR recommends.

The entire robot is 3D printed out of Overture Super PLA Plus; other PLA+ will work too, but the robot has been designed with this material in mind. Another material that has been tested has been DURAMIC PLA+ but the robot tends to be more explody due to the material its self breaking before bending unlike Overture super PLA plus bending before breaking. This robot was not designed as a kit and may be challenging for beginners to understand and build. Don't hesitate to try modifying the design to make it easier to create and fight with.

The electronics need to be compact for everything to fit in the robot. The parts I listed are the parts I used but they can vary from what you use. The weapon motor esc doesn’t have to be that specific one but I chose that one because it has more start up torque than a blheli esc. The repeat robotics esc I listed for the weapon will need to be reprogrammed using the esc programmer that is in the list below. Instructions on how to do it is listed on the repeat robotics website. The setting that need to be set are in the images below.

Print settings-

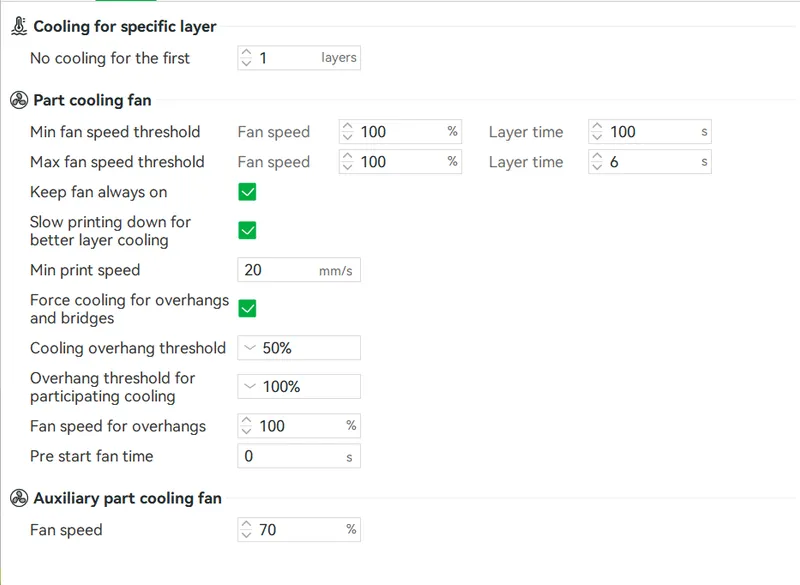

Filament settings-

General-

.2mm layer height

5 wall loops

5 Top layers

3 bottom layers
15% infill

Cubic
Wall generator- Arachne

Weapon-

1 wall loop

Rectinlinear Top Surface

100 Top layers

100 Bottom Layers

Rectilinerar Bottom Surface

Top-
Supports Enabled

Uprights-

5 bottom layers

5 top layers

Wheel hubs-

3 wall loops

3 top layers

Parts list-

1x (Weapon Motor) D3530 1100k or 1400kv

https://www.amazon.com/dp/B0D3DTMGDH?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1&th=1

1x (Weapon motor supporting side) Flanged Ball Bearing 5 mm x 11 mm x 5 mm

https://www.amazon.com/dp/B07Z3CLZP5?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_3&th=1

1x (Weapon ESC) Repeat AM32 Drive ESC (Needs to be reprogrammed not to be bidirectional using a USB to ESC Programming Tool found here https://repeat-robotics.com/buy/usb-to-esc-programming-tool/)

https://repeat-robotics.com/buy/am32/

1x (Brushless Drive ESC) Repeat AM32 Dual Brushless Drive ESC (can control 2 drive motors)

https://repeat-robotics.com/buy/repeat-am32-dual-brushless-drive-esc/

2x (Drive motors) Repeat Mini Mk4, Gear motor, 4mm shaft, 28.5:1 Drive
https://repeat-robotics.com/buy/mini-mk4/

1x (switch) Fingertech Switch

https://repeat-robotics.com/buy/fingertech-switch/

1x (receiver) Flysky FS2A Receiver (can be bought anywhere)

https://repeat-robotics.com/buy/flysky-fs2a-receiver/

1x (battery) GNB LiPo Battery 3S 380mAh 11.4V HV (can buy anywhere that it is available)

https://www.gaoneng.shop/products/gaoneng-gnb-lihv-3s-11.4v-380mah-90c-xt30-lipo-battery

1x (filament) OVERTURE Super PLA+ Filament

https://www.amazon.com/dp/B0BQRBM5RB?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_3

2x 37x22mm Lego tires (original design bought from Team Malice, but the store recently shut down)
https://www.amazon.com/Eske-Kouri-Compatible-Childrens-PiecesTechnical/dp/B0BH7V1M43

Screws-

Stainless Steel Flat Head Thread-Forming Screws for Plastic

Phillips Drive, 90 Degree Countersink, M3 Size, 6mm Long (Used to attach drive pods to chassis)

https://www.mcmaster.com/90485A439/

M2.5 Machine Screws Nuts Washers Set (Weapon screws)

https://www.amazon.com/dp/B0CLM7XB39?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_7&th=1

M2 Machine Screws Nuts Washers Set (face mounting for drive motor)

https://www.amazon.com/dp/B0CLMBB5TM?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_7&th=1

M3 Machine Screws Nuts Washers Set (wheel set screw/Weapon motor Screws)

https://www.amazon.com/dp/B09WJ1C8JP?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_3

Small Parts 0406LPP410 410 Stainless Steel Thread Rolling Screw for Plastic, Passivated Finish, Pan Head, Phillips Drive, #4-20 Thread Size, 3/8" Length (Used to attach uprights to chassis)

https://www.amazon.com/dp/B00GDYBCZO?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_9

Other Items required to build-

Flysky FS-i6 6 Channels 2.4G RC Transmitter

https://www.amazon.com/dp/B0B2D86L13?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_10

18 Gauge Silicone Wire (power wires)

https://www.amazon.com/dp/B089CW7YSR?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1

22 Gauge Silicone Wire (drive motor phase wires)

https://www.amazon.com/dp/B089CQHRDT?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_23

Heat Shrink

https://www.amazon.com/dp/B0C8STNGB8?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_2&th=1

Xt-30 connectors

https://www.amazon.com/dp/B0875MBLNH?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_2

MR-30 (for weapon to esc)

https://www.amazon.com/dp/B09TQP1SZL?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1
