Liquid Laundry Detergent Dosing Cap & Measuring Cup for Savo

A smart cap that doubles as a measuring cup - exactly what a laundry gel needs.
Savo is a great laundry gel, but it hasn’t had a smart cap—until now.

I made two variants:

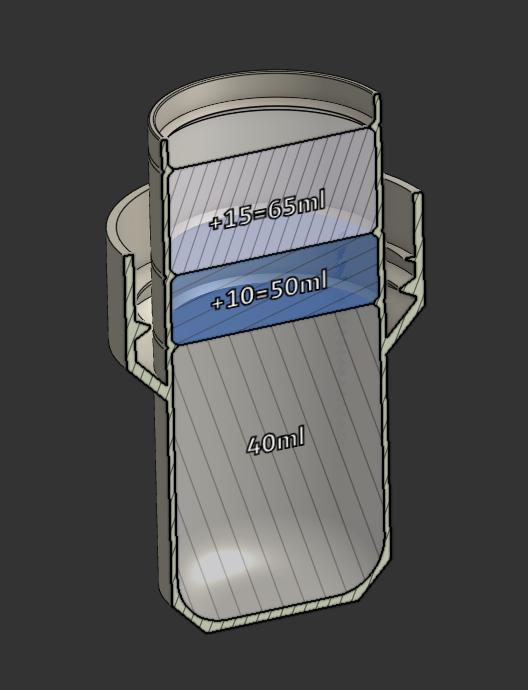

• for soft water
• for hard water

The label shows the recommended gel amounts per wash for soft vs. hard water.
So there’s one model for soft water and another for hard water—choose the one you need.

The dirtier the laundry, the more gel you should use.
I accounted for this with three fill levels, highlighted by raised bumps on the cap.

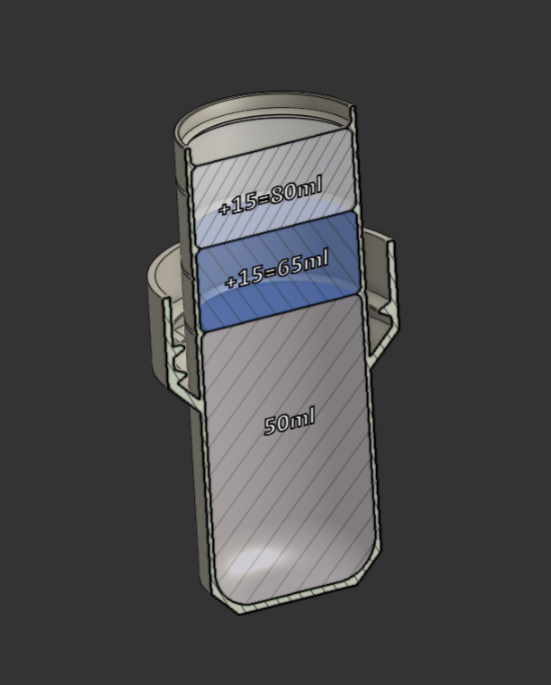

Variant for hard watter:

However, with a single-color print the marks aren’t very visible.
Use two colors so the marks are printed in a bold, contrasting color.

Print instructions

• layer height: 0.2 mm
• 3 perimeters
• no infill
• no supports
