RJ-45 Network Jack Dust Cover Plug CCD Version

RJ-45 Network Jack Dust Cover Plug

Wanted a good one, ended up designing my own.


I wanted something that emulates a RJ-45 plug and stays in place.

Sample blue parts printed in Polymaker PRO PLA.

Tab actual locks parts in place. Tab also releases dust cap when squeezed.

Nozzle Temp 220 deg C

Plate Temp 60 deg C

Recommended Material : PLA
Nozzle Diameter : 0.4mm
Layer Height : 0.2mm
Support : NO
In-fill Percentage : 25% Gyroid


Vertical Layers : 3

Bottom Layers : 3

Top Layers : 5

This is a Case CAD Designed version. (CCD version).

https://casecaddesign.com/

3 print versions available, single part, 12 part matrix, and 48 part matrix versions.

These parts have successfully tested on the following devices. Will work with 99.9% of RJ-45 ethernet ports out there.

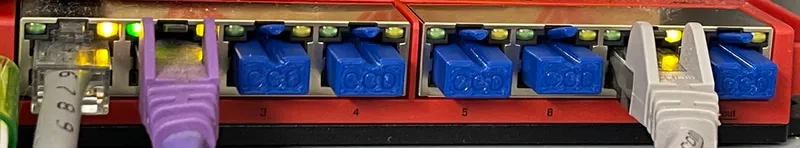

Mikrotik Router / Switch

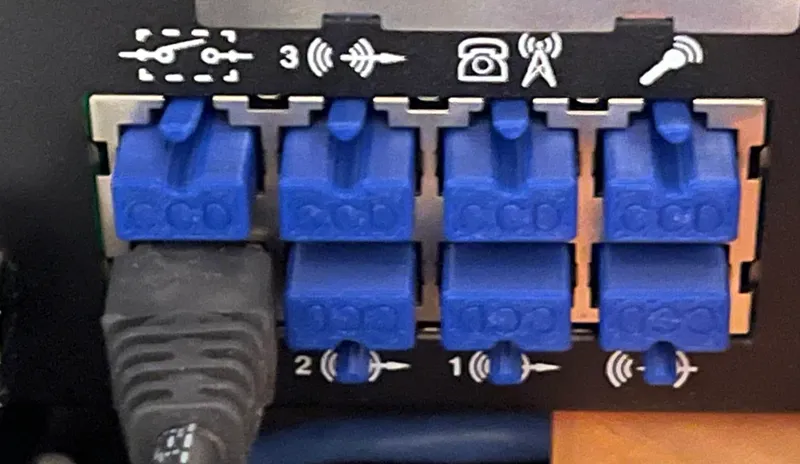

Motorola CC-HUB

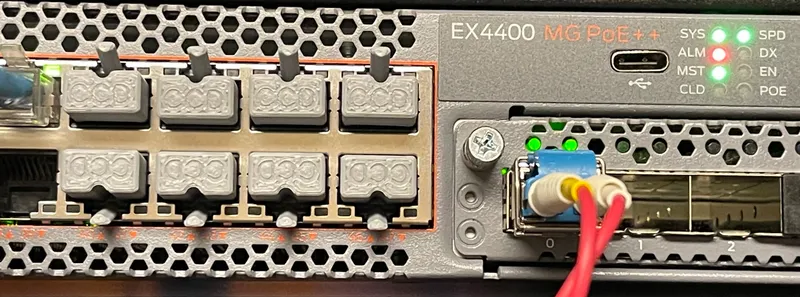

JUNIPER EX-4400 Switch

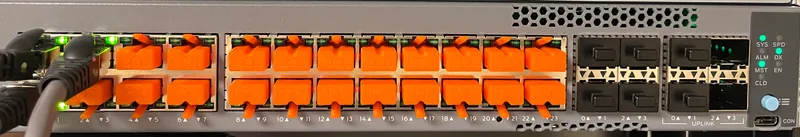

Juniper EX-4100 Switch

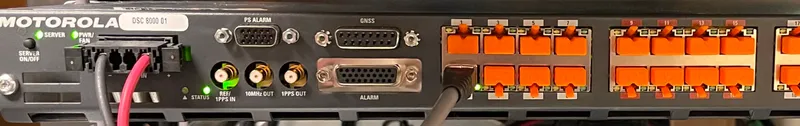

Motorola DSC-8000 Site Controller for K Core.
