HIKMICRO Mini2Plus V2 Mounting Adapter

This is a camera cage and tripod adapter for the HIKMICRO Mini2Plus V2 thermal imaging camera module. The combination of a thoughtful design and a specific material choice results in a ¼-inch mounting solution that is both easy to print and easy to use—particularly well-suited for stationary PCB troubleshooting and video capture.

Caveats

I don't know if repeatedly knocking on the camera body by installing it into the cage will mess with it's optics. Be aware of that and avoid excessive snapping.

I also haven't tested the cage with the camera running over a longer time-period. Temperature build up on the aluminium housing might be a problem.

Additional Hardware

With the camera module being as light as it is, there is not really a point in using a thread insert; Therefore you don't need any additional hardware. The hole in the clamp is sized to be a self tapping ¼ inch .

If you want to get fancy, the file with the “insert” suffix comes with an 8 x 14 mm hole that'll take a Ruthex ¼ insert (standard or short).

Print Instructions

This model is specifically designed to be printed in PETG, with 4 perimeters and 100% infill.

Features

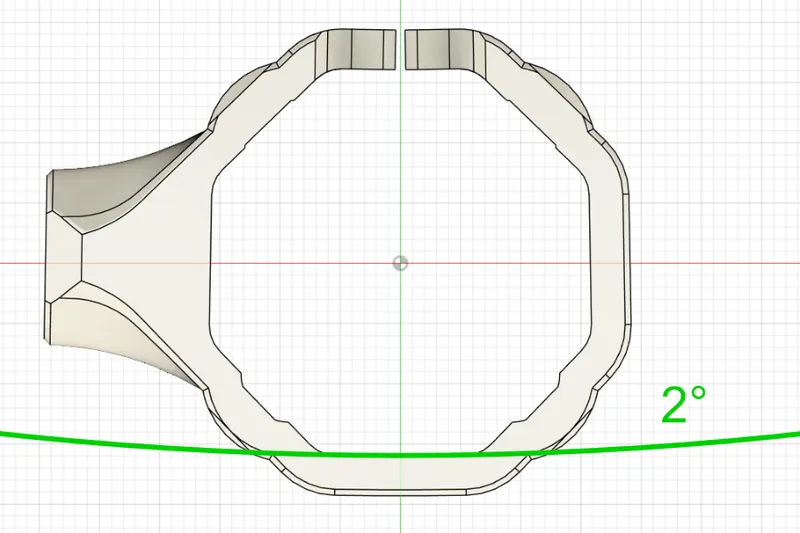

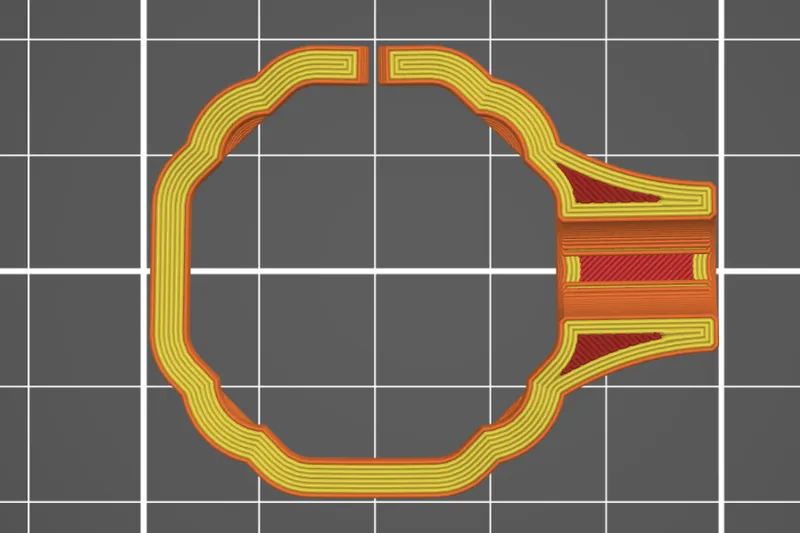

In contrast to its simple nature, this model is packed with features that improve printability and ease of use. Slight preload provides a firm grip on the module, keeping it secure and reducing potential rattling. Consistent wall thickness along its main perimeter generates continuous tool paths, thereby minimizing weak points. The locking tabs that restrict the camera are asymmetric—less pronounced where the clamp doesn’t open as much—making installation easier.

Usage

Once printed, getting the camera in and out of the cage—against its preload—may seem more troublesome than it actually is. The design allows the camera body itself to act as a lever to open the cage. From the rear, begin with the camera rotated about 30° counterclockwise. Press the body down while twisting it clockwise; after only a few degrees, you should be able to push it into the clamp. Grip firmly and continue twisting until the camera reaches its final orientation—rotating clockwise flexes the clamp outward to make room. When the module snaps into place, press it down until the clamp closes again. To remove the camera, first install the lens protector. Then rotate the camera clockwise while gently pressing against the USB connector; this opens the clamp enough for you to push from the front and release the camera.

Customization

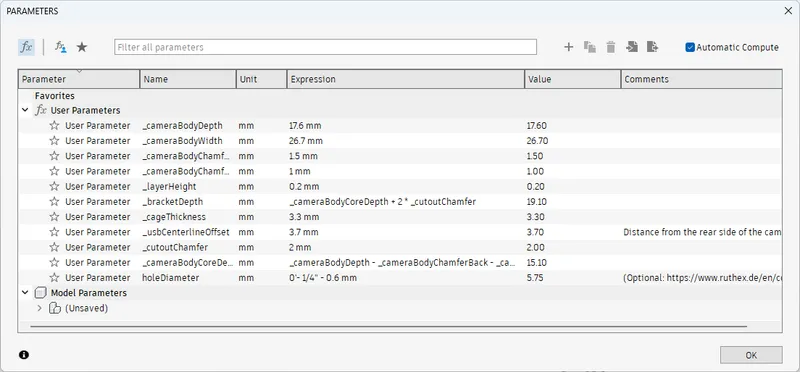

Find the Fusion 360 file in the Download Section. It's not more than a function draft right now, the timeline is far from perfect, but the model itself is in a relatively robust state. If you want to change the connector hole diameter, find the parameter holeDiameter in the Parameters Dialog. Parameters Prefixed with _ are not meant to be changed and might break the history.
