Yet Another Direct Extruder (YADE) bracket with BLTouch Mount for Ender 3

This bracket for the direct extruder motor & BLTouch nicely complements the YAMM fan ducts for Ender 3.

 It uses the wheel-bearing screw to provide a solid extension bracket and mount the extruder motor perfectly aligned with the filament tube into the stock hotend. It includes holes for two M3 x 8mm screws for additional support, as installed in the pictures.

Printing YAMM

It is recommended to print 100% infill at 0.2mm layer height.
Bracket in photos was printed with Ender 3/Klipper sliced with Orca with eSun PETG.

Assembly

Remove left side wheel-bearing screw. Insert from above and reinstall screw through bracket.

Illustration Images Attributions

• Ender 3 component models in pictures by Creality at Github/Creality3DPrinting.
• BLTouch model in pictures by Grabcad user Felix.Ort-1.

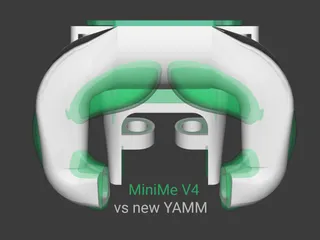

• YAMM fan ducts in Printables by Tingopix (shown in white).
