OpenSCAD library for HSW wall and attachments

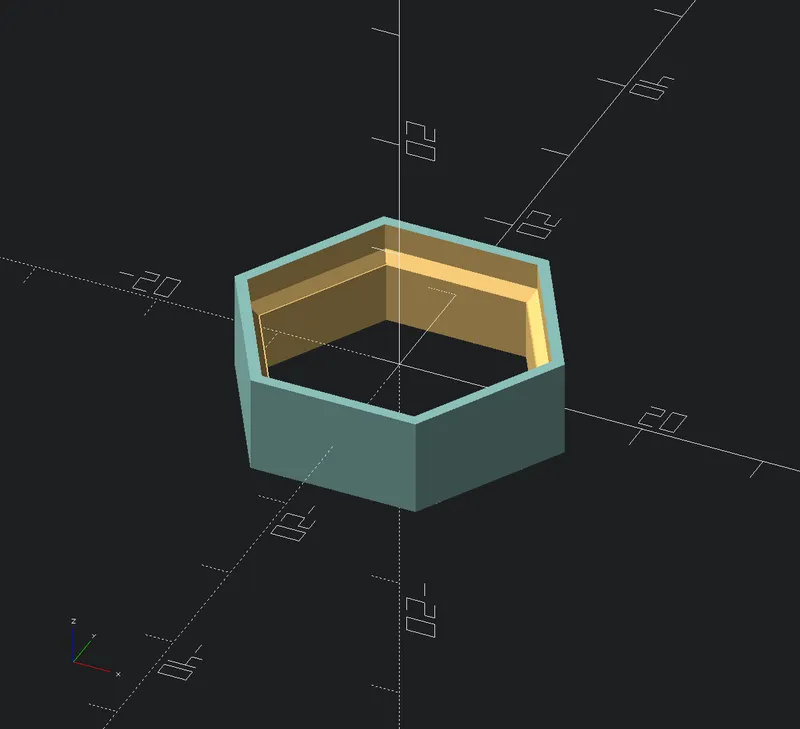

Single HSW hex

use <hsw.scad>
hex();

hex() options:

• fill: true / false

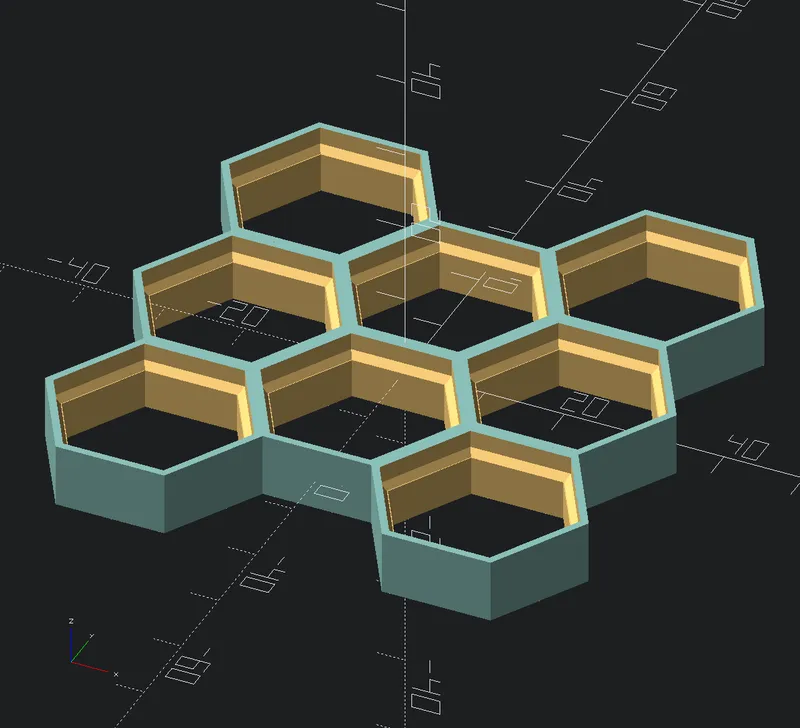

HSW hex grid by hex count

use <hsw.scad>
hex_grid(count_x=3, count_y=5)

hex_grid() options:

• size_x: size [mm] of grid X axis
• size_y: size [mm] of grid Y axis
• count_x: size (number of hex) of grid X axis
• count_y: size (number of hex) of grid Y axis
• fill: fill in hex. Values: true / false
• negative: use to subtract from shape to achieve HSW grid. Values: true / false

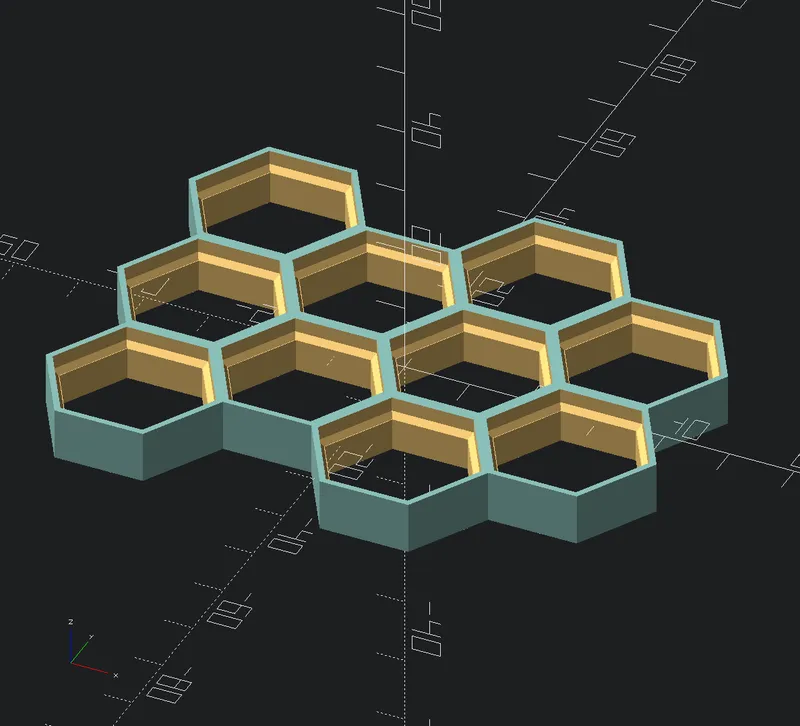

HSW hex grid by size

use <hsw.scad>
hex_grid(size_x=80, size_y=50);

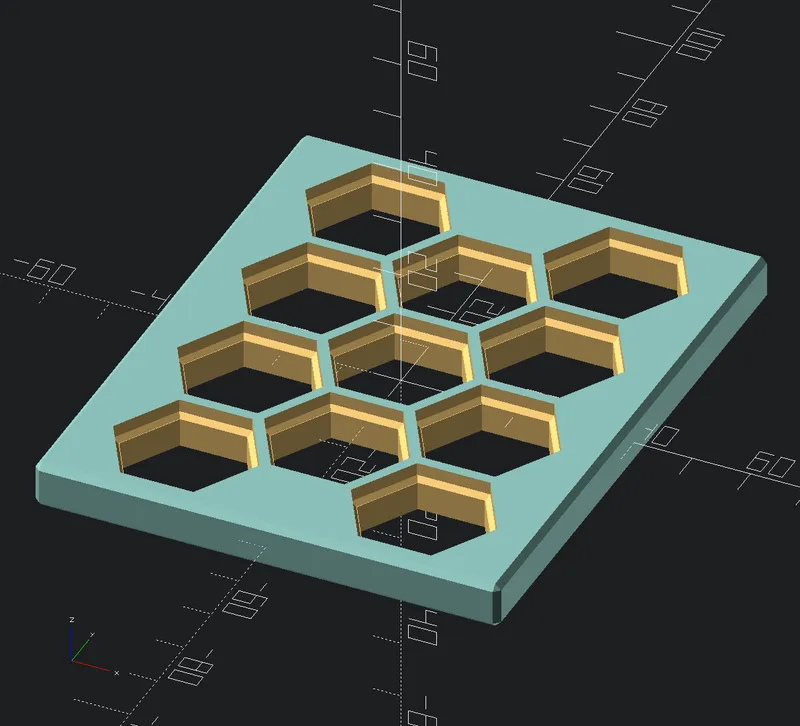

Subtract HSW grid from shape

use <hsw.scad>
difference() {
    cuboid([80,100,8], chamfer=1);
    hex_grid(count_x=3, count_y=7, negative=true);
}

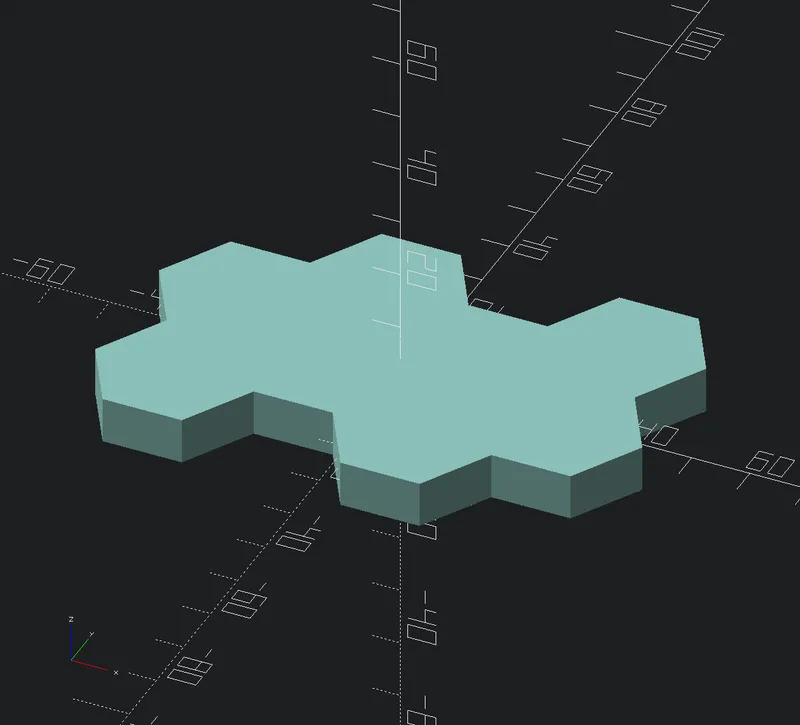

HSW grid with infill

use <hsw.scad>
hex_grid(count_x=4, count_y=4, fill=true);

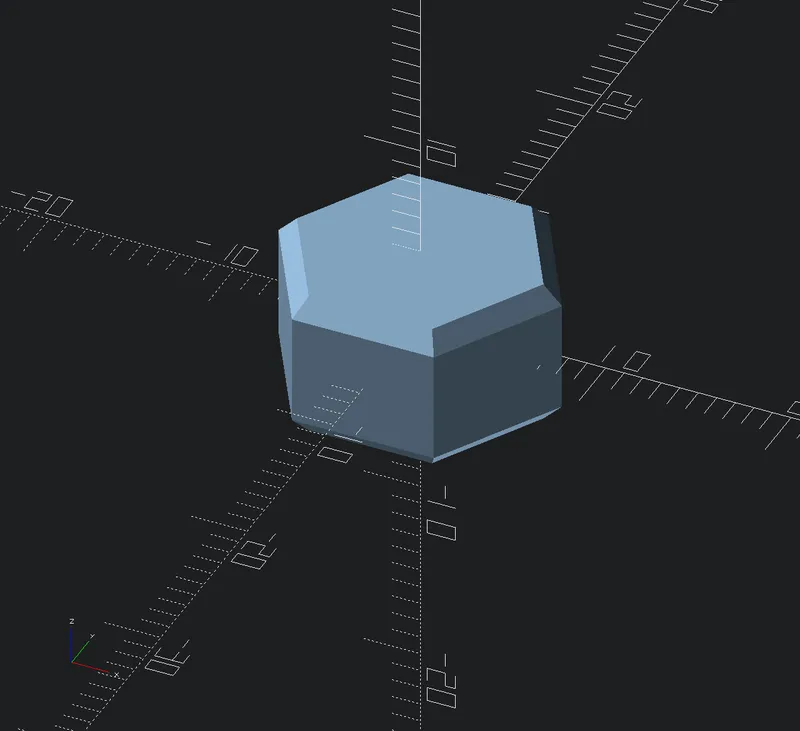

Single attachment

use <hsw.scad>
attachment();

attachment() options:

• hex_diameter: diameter of the attachment. Default: 15.2. Range:  [15.0:0.1:16.0]
• length: length of the attachment (on Z axis). Default: 8. Range: [7:0.1:200]
• chamfer: chamfer on top and bottom of the attachment. Default: 1. Range: [7.5:0.01:8.0]

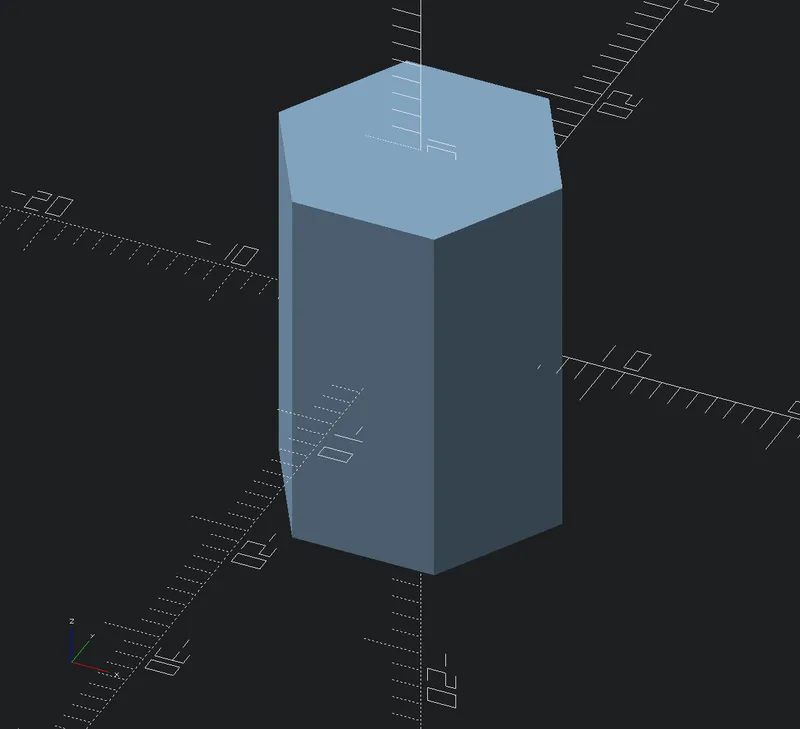

Single attachment with custom length, no chamfer

use <hsw.scad>
attachment(length=20, chamfer=0);

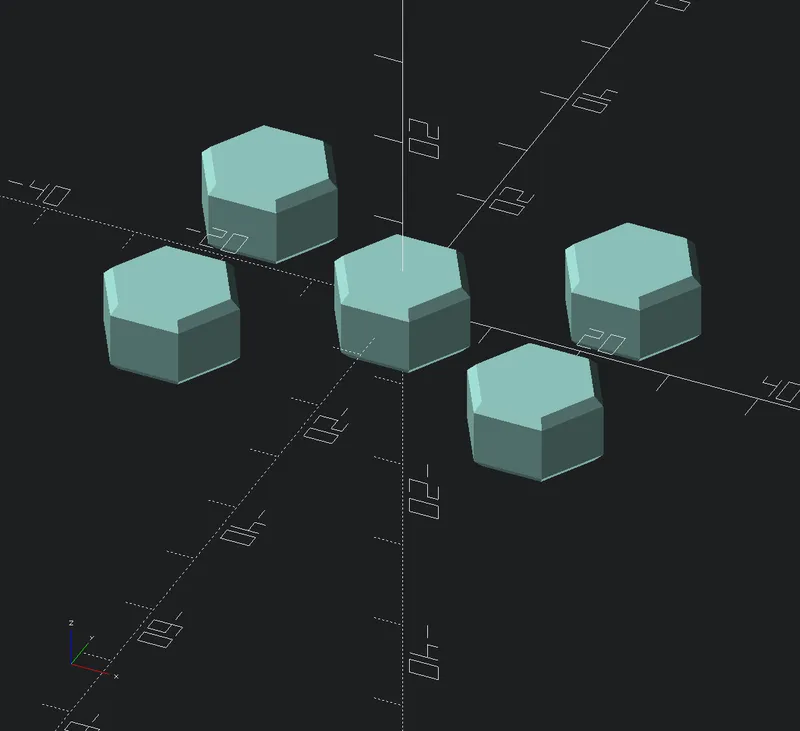

Grid of attachments by count

use <hsw.scad>
attachment_grid(count_x=3, count_y=3);

attachment_grid() options:

• hex_diameter: diameter of the attachment. Default: 15.2. Range:  [15.0:0.1:16.0]
• length: length of the attachment (on Z axis). Default: 8. Range: [7:0.1:200]
• chamfer: chamfer on top and bottom of the attachment. Default: 1. Range: [7.5:0.01:8.0]
• size_x: size [mm] of grid X axis
• size_y: size [mm] of grid Y axis
• count_x: size (number of attachment) of grid X axis
• count_y: size (number of attachment) of grid Y axis

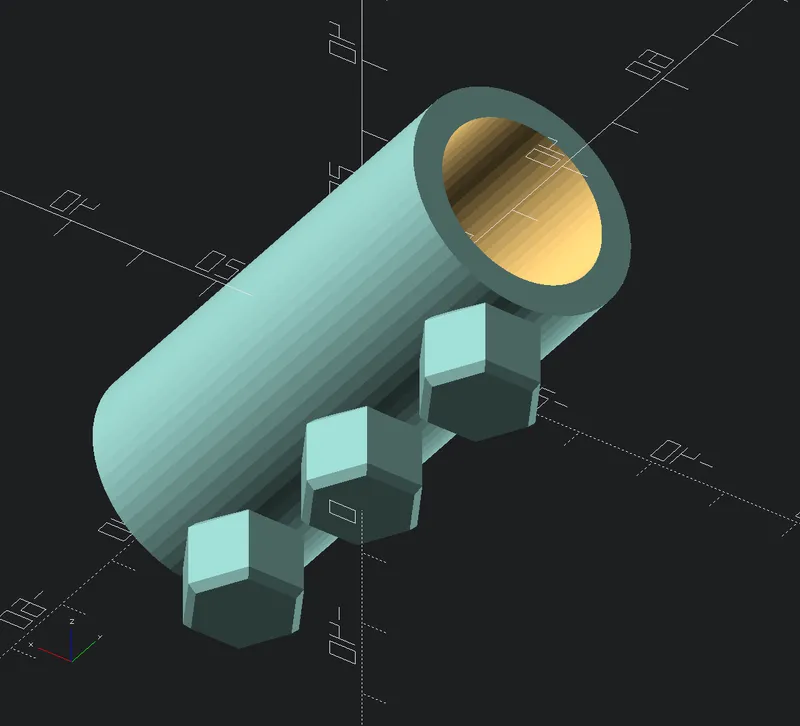

Add attachments to model

use <BOSL2/std.scad>
use <hsw.scad>

size_x=30;
size_y=64;

down((size_x/2)+4)
    attachment_grid(size_x=(size_x - 10), size_y=(size_y - 10), length=10);

difference() {
    ycyl(d=size_x, l=size_y, $fn=64);
    back(4)
        ycyl(d=size_x-8, l=size_y-8, $fn=64);
}
