Filament Guide for Ikea Lack Enclosure

This filament guide, designed for the Ikea Lack enclosure, keeps the filament aligned with the X-carriage movement.
I designed it to ensure the filament runs smoothly, without bending, during the full 260 mm X-axis travel, providing a consistent and reliable path.

• Easy to print, no supports required
• Snap-fit system: no screws needed
• Filament path length: 260 mm, (optimized for the MK4S X-axis range)
• Filament/PTFE channel width: 5 mm (for Ø4 mm OD PTFE tube)

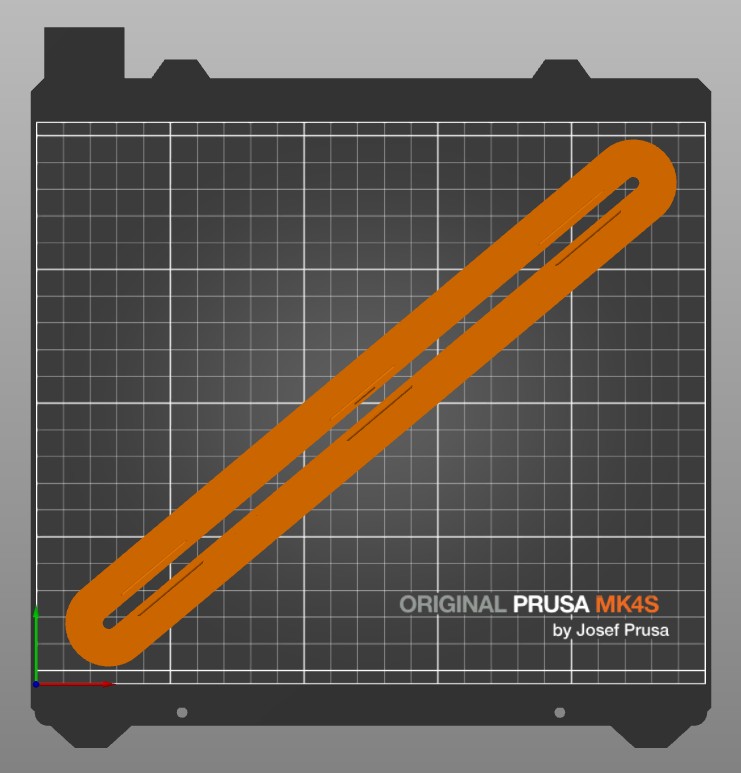

Print settings

• Material: PETG
• Layer height: 0.25 mm
• Perimeters: 3
• Infill: 5%
• Infill pattern: Rectilinear
• infill angle: 40°
• Supports: not required
• Verifying the XY size compensation in the slicer may improve filament print accuracy and ensure a proper fit.

Installation

During installation, make sure the two tabs on the top part fit correctly into their slot in the bottom part.
