Compact Electrical Junction Box for WAGO 2273-204/205

This is a compact electrical junction box, designed specifically for WAGO 2273-204/205 connectors.
The enclosure features M15x1.5 threaded holes for cable glands and a cover secured with M3x0.5 screws. The inside includes compartments to keep wiring organized.

✅ Fits WAGO 2273-204/205 connectors
✅ Threads: M15x1.5 (cable entries) and M3x0.5 (cover)
✅ Compact design – perfect for limited space
✅ Easy to print and assemble

Print settings (recommended)

• Material: PETG or ABS (for durability and heat resistance)
• Layer height: 0.2 mm
• Walls: 3–4 perimeters
• Infill: 20–30% (grid/gyroid)
• Support: only for threads (optional, depending on printer)
• Nozzle: 0.4 mm
• Heated bed: 70–80°C (PETG) / 100°C (ABS)

Additional accessories

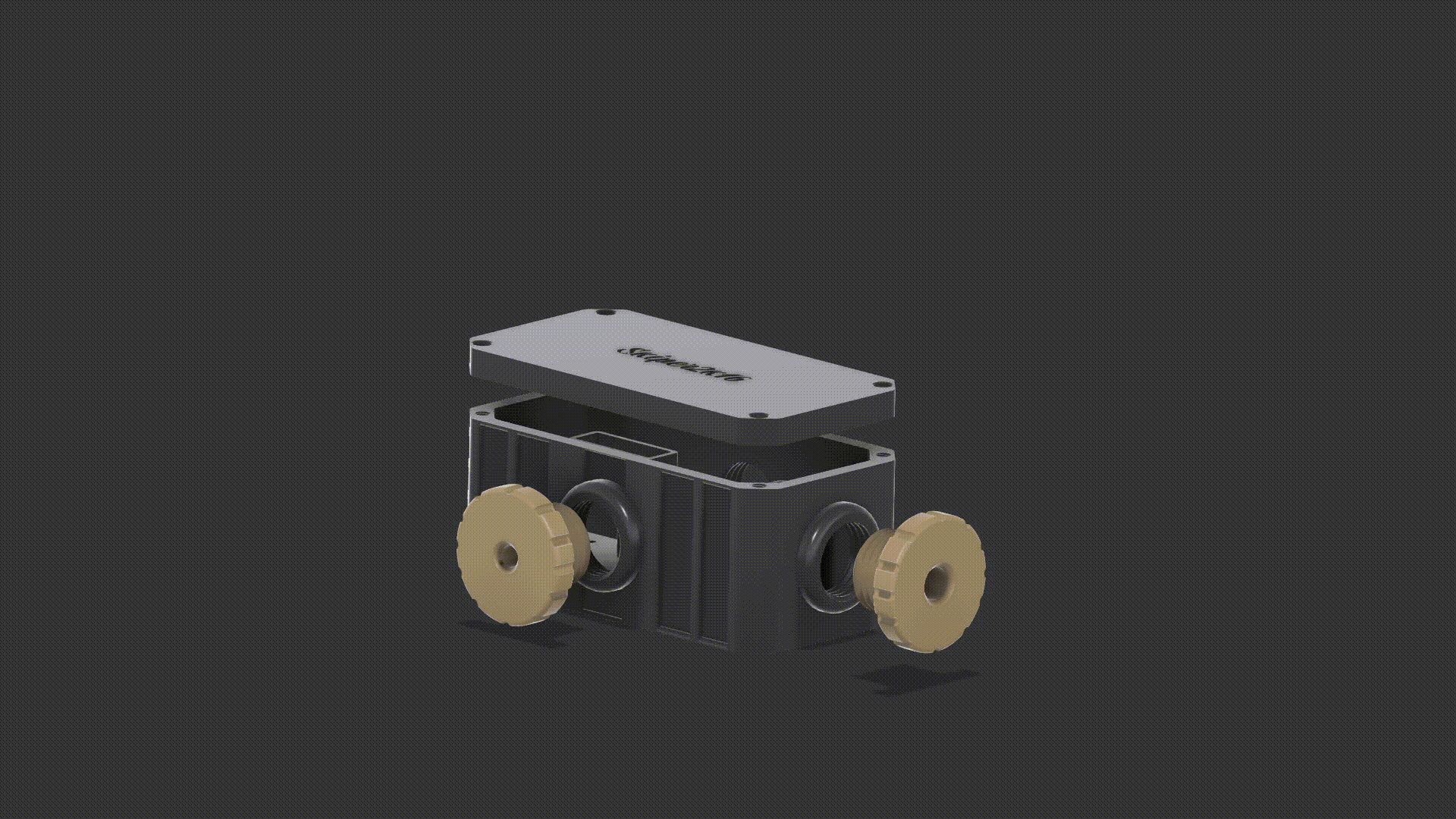

The project also includes adapters for M15x1.5 openings, which allow secure cable insertion. They help stabilize wires and provide a cleaner, more professional finish inside the box.

Cable entry sizes:

• Ø4 mm
• Ø6 mm
• Ø8 mm
• Ø10mm
