Mount for switches or buttons for an Aftermarket steering wheel

Mount for switches or buttons for an Aftermarket steering wheel ideaized after seen in fast and furious
0
1
0
30
updated November 8, 2025

Description

PDF

So this was styled for those mounts seen in the original fast and furious movies. this version of design was made to fit a Honda Integra DC5 with an HKB steering wheel hub, utilizing a 70mm x 6 PCB

Whats needed

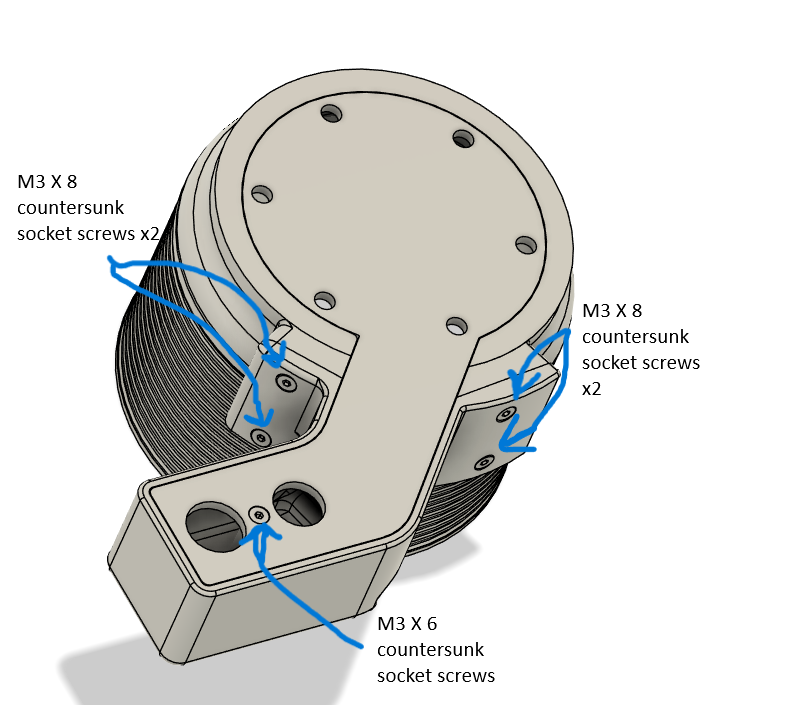

M3 X 5 Heat set insert x5

M3 x 6 countersunk socket screw x1

M3 x 8 countersunk socket screw X4

Heat set insert locations are marked out in the photos, when i made the plate i cut it out of aluminium RHS with hands but someone like PCBWAY or send cut send should be able to manufacture it
