Qidi Q1 Pro Improved Visibility Duct - "Medium"

This is a “medium” version of an improved visibility duct for the Qidi Q1 pro that I made using the stock as a reference. It offers much better nozzle visibility than the stock duct but not as much as the version by Chaz and my remix of it. However the airflow here is more balanced and refined.

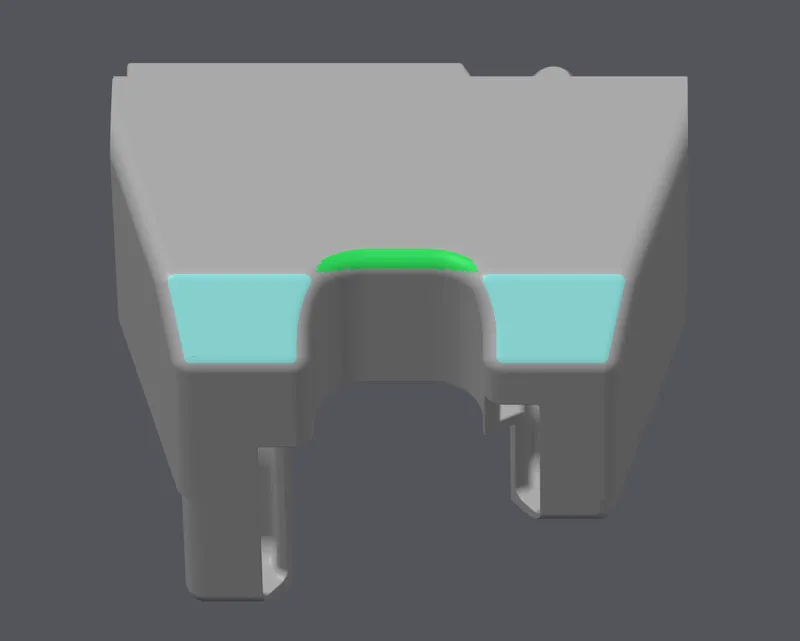

This is made for use with the stock fan with the wide outlet, which has a bias towards the right for the airflow. I designed this to account for that and achieve a much more balanced flow between the left and right air exits. This is meant to be printed at a 50 degree angle, simply place it on the surfaces shown in blue. You likely don't need a support for the bridge but if you want you can colour in the area in green for support, it's very minimal.

Print using ASA/ABS or an appropriate heat resistant filament of your choice. STEP file is provided if you'd like to make alterations or adjustments. Stay tuned for additional Q1P related mods/upgrades ;)
