RUR 03

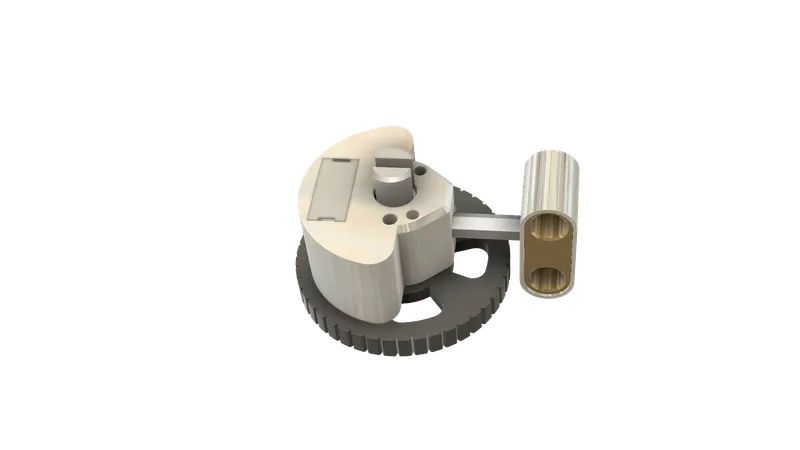

Completely redesigned model, using the author's ideas @Judhini_1605028 , @x4443

Easy printing, no glue required

tested for various tolerances

Print 0,15mm structural, 15% infill

I printed on Prusa core one, size 5.19mm, fits well, no need to use glue

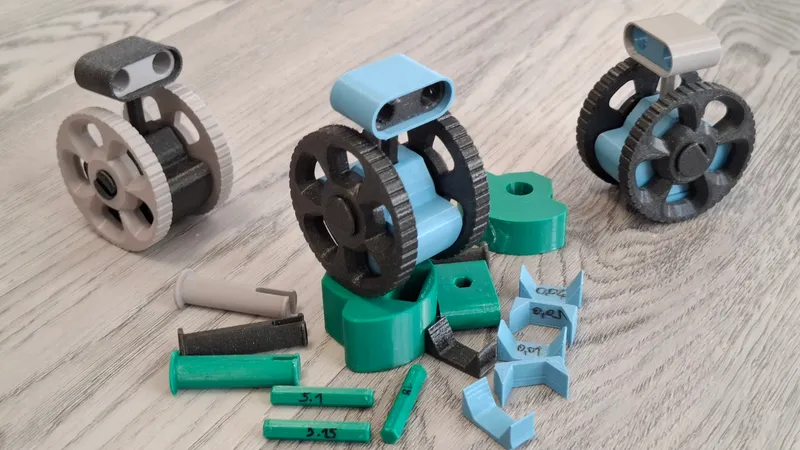

I added models with additional tolerances.

Print 0,2mm structural

100% infill

3 perimeters

100% infill

printing position of the hole

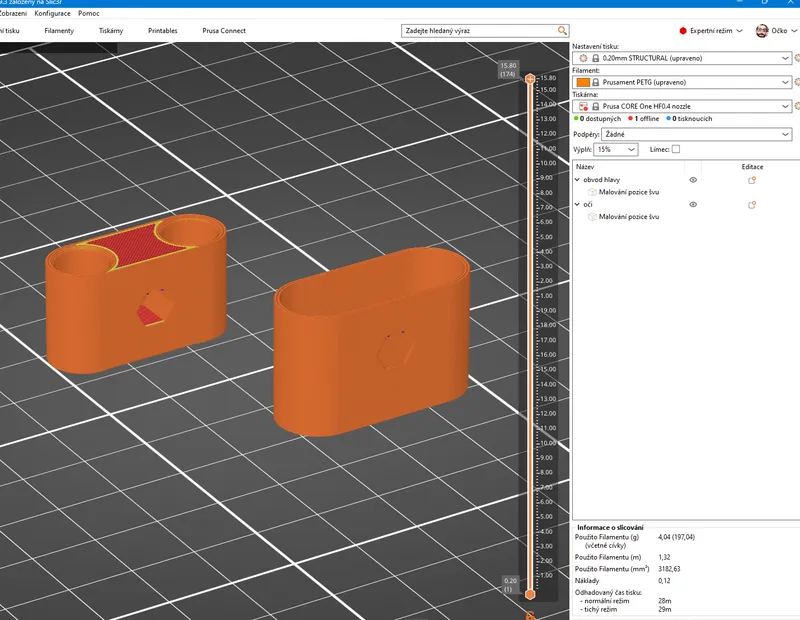

print 0,2mm structural

15% infill

Print 0,15mm structural, 15% infill

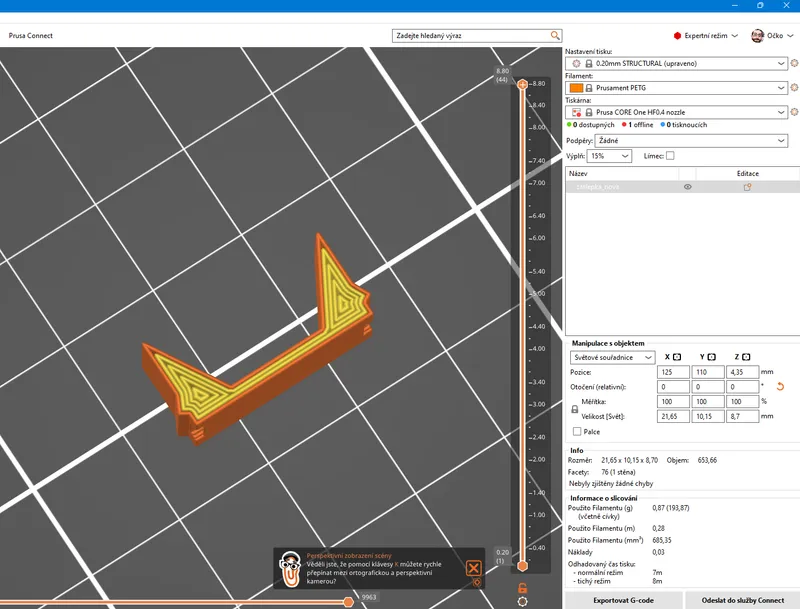

Print 0,2mm structural

15% infill

5 perimeters

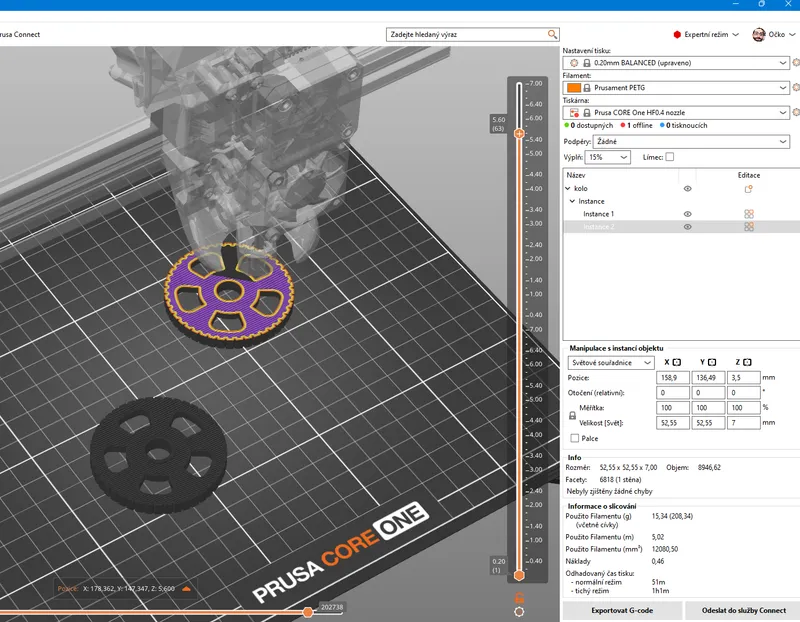

Print 0,2 mm balanced, 15% infill

3 perimeters

Print Output options - comlete individual objects

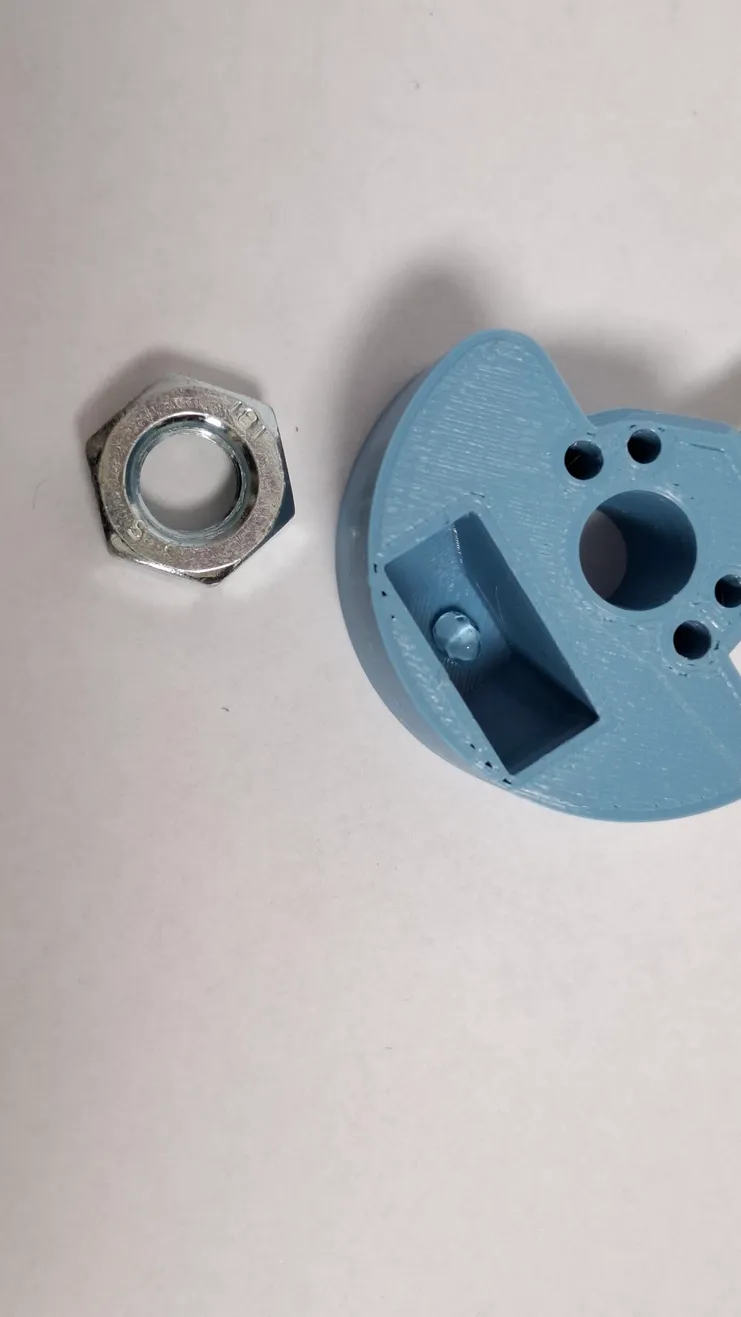

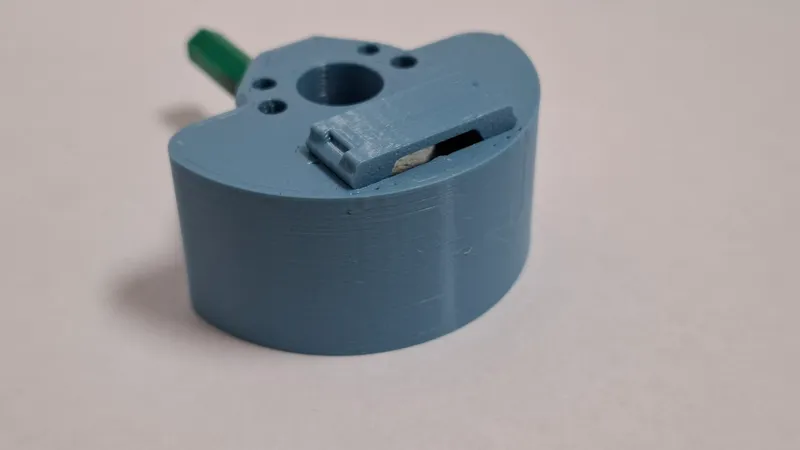

for good stability I used a nut as a weight

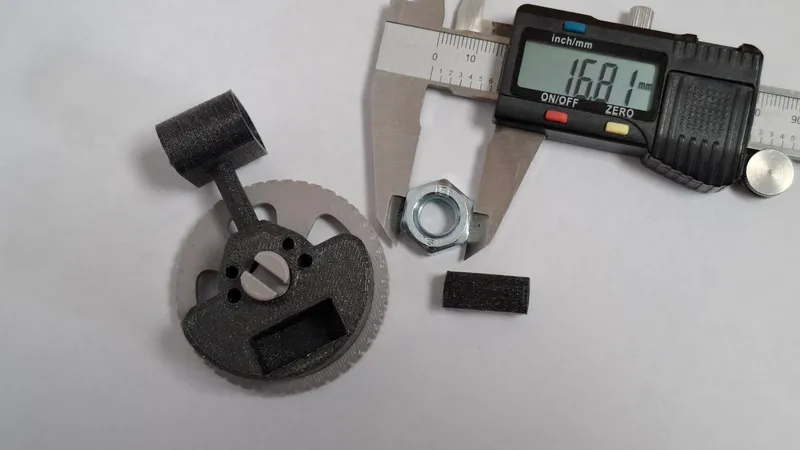

The nut hole has a deliberately large tolerance to allow for the use of different nuts.

Superglue can be used to secure, but it is not necessary.

The cap locks the nut in place, after pushing the cap it is difficult to open again, it holds firmly

assembly

1:

2:

3:

4:

insert nut !!!!!   and plug!!!

5:

6:

7:

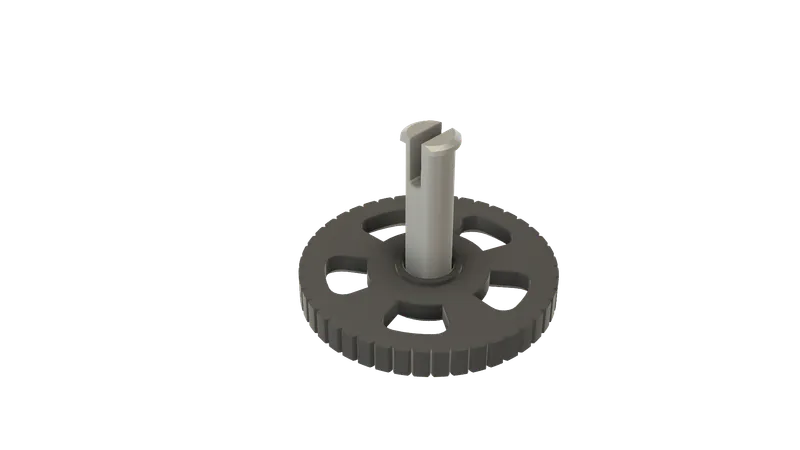

The recommendation is not necessary. For a better sliding surface, you can try smoothing the axle and inner hole of the wheel with fine sandpaper and using a lubricant.

kompletně přepracovaný CAD model, využívající původní autorskou představu.

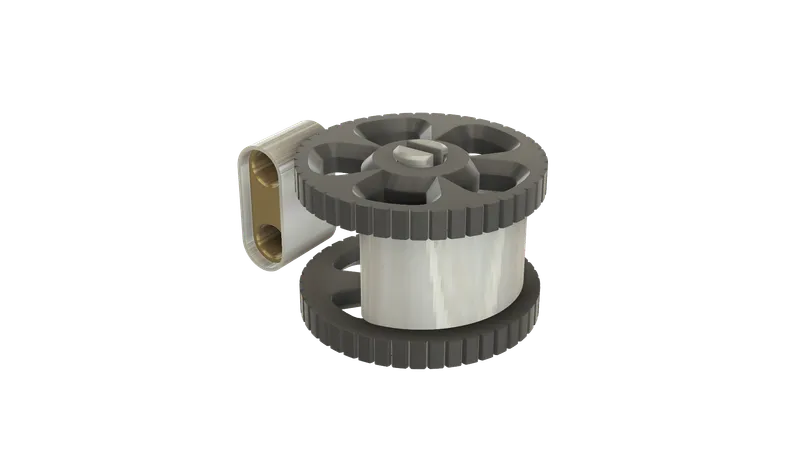

Přepracováno na dvě kola, přidána hmotnost do vyvažovacího systému

Tisk PetG
