E3CNC integrated vacuum port
integrated vacuum port modification of the spindle mount bracket to allow connection of 35mm vacuum hose
4
14
0
74
updated
September 15, 2025
Description
PDFI wanted a dust shield for my CNC with a Makita trim router that didnt block access to the collet lock button, and didnt decrease the work area. The brush assembly is magnetic and removable, and uses TPU printed brushes.
Model origin
The author remixed this model.
Differences of the remix compared to the original

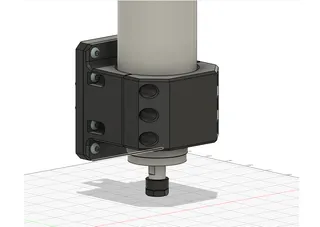

modified E3CNC spindle bracket to integrate the vacuum port
