Frame Protector Boot for Kids Ride Shotgun Saddle

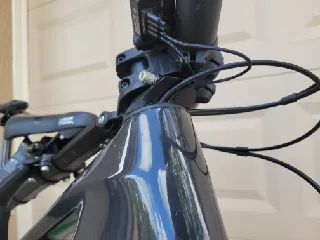

The Kids Ride Shotgun saddle sits very close to the frame on the Canyon. I made some boots for the lowers to protect the frame when things get a bit bumpy.

Printed on K2 Plus with 95A Overture TPU, .4mm nozzle, .16 layer, 4 walls, and tree supports.

Installation Instructions:
1. Remove the bolt that connects each foot peg to the adjustable peg supports. (5mm hex)
2. Remove 2x bolts that connect the adjustable leg ends to the main frame from each side. (4mm hex)
3. Pass the adjustable leg end through the large opening into the side with the tube. TPU will stretch a bit to allow it to go in.
4. Put the adjustable leg end back into the main frame to the proper height. Replace and tighten the bolts.
5. Put the foot peg through the large hole and set the alignment. Replace and tighten the bolts.
Note: Install this product at your own risk.Install this product at your own risk, use the manufacturer recommended torque specs for all fasteners. I am not responsible for damage or injury due to improperly installed or torqued fasteners.
