Cereal Container Drybox cheap and simple with added MANUAL REWIND function

I created this collection for the cerealbox i use (Link)

A scound reason for this was, that i hadn't found a good drybox with a easy and robust rewind function so i had to create this.

A third reason for this was, that all the dryboxes i found had many good remixes and i want all these wich ar good for my drybox project in one printables entry

Comment to the Variants and future Possibilities:

Most of the materials I use are from Sunlu Gen2 or Gen3 Spools.
If you like this Collection and use other Spools, let me know the inner diameter of your spool an if there ist any locking surface for the rotary protection and I want to try to generate the corresponding data. Hopefully it works at the first try :-)

Bill of Materials

to Print:

• 1 Axle
• 2 Roll Adapter
• 2 Rollholder
• 1 Silicagelbox
• 1 Silicagellid
• 2 Coupler nuts
• 1 coupler cap
• 1 Externalrewind knob
• 1 Hygrometer holder

to Buy or have:

• 1 Silicagel
• 2 M10 PTFE Fitting
• 1 Piece of PTFE Tube
• 4 M3x6 Screw
• 1 Hygrometer

needed Tools:

• Drill with Diameter 9mm, 6mm, 3mm
• Pen
• knife or deburring tool
• 10mm attachment for ratchet
• 15 mm open-end wrench
• Screwdriver

Comment to save Material:

Please consider to save material for the gauges. In my 3mf Data you found a good solution to save material without loosing to much stiffness.

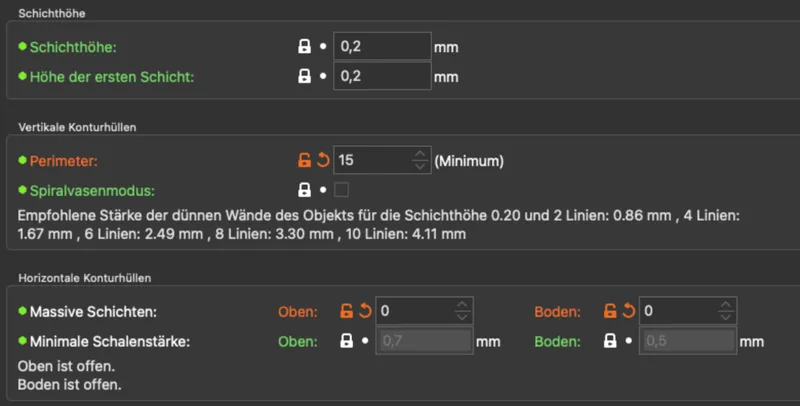

Settings for TOP gauge:

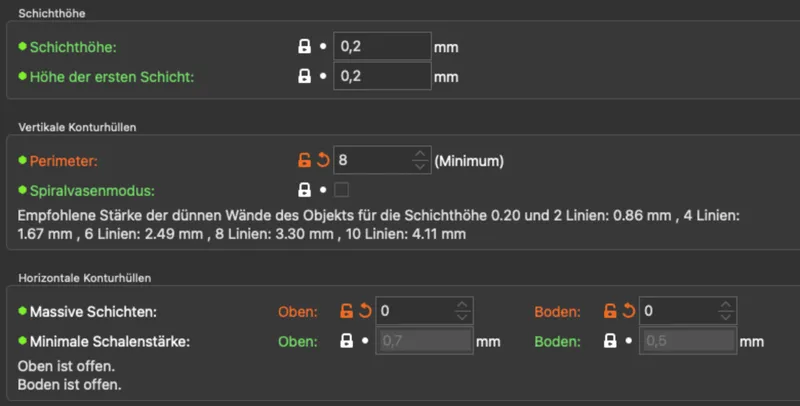

Settings for Side Gauge:

Comment to Support:

You don't need Support for alle the parts.

Assembly:

9mm Diameter:

3mm Diameter:

6mm Diameter and only one side of the box needed:

screw must sit flush on the inside

For a good rewind function make sure to screw it nice and tight together with the spool. Please consider to place the spool not to far left or right.

You can use the coupler cap for sealing the drybox during print process.

I hope you'll find here the best drybox for your special needs.


Drybox collection with rewind function: low cost, fast print, airtight, adaptable for many spools after request

• Added rewind function for manual material return
• Changed silica box size
• Flat version added for slim spools
• Further Optimized for minimal filament use
