LDO Jabberwocky SV08 mount (SV08,SV08 MAX,SV08 ZERO)

PLEASE NOTE: the files may not reflect the pictures anymore i have made a few changes but they should be similar enough to get an understanding of how everything works. I'll upload ne pictures eventually. still tuning everything.

LDO Jabberwocky SV08 mount (will need feedback for the SV08 MAX and ZERO. I'll make a lever stop shortly.

the 2.5x8mm screws are used for mounting the lever stop.

all screws are included in the LDO Jabberwocky SV08 kit. please refer to the LDO git hub for details on set up.

https://github.com/kinematicdigit/Jabberwocky

setting up the tool head follow this guide to update klipper
https://docs.ldomotors.com/en/Toolboard/nitehawk-36#hardware-setuphttps://docs.ldomotors.com/en/Toolboard/nitehawk-36#hardware-setup

i highly suggest being on mainline klipper
https://github.com/Rappetor/Sovol-SV08-Mainlinehttps://github.com/Rappetor/Sovol-SV08-Mainline

follow this for help

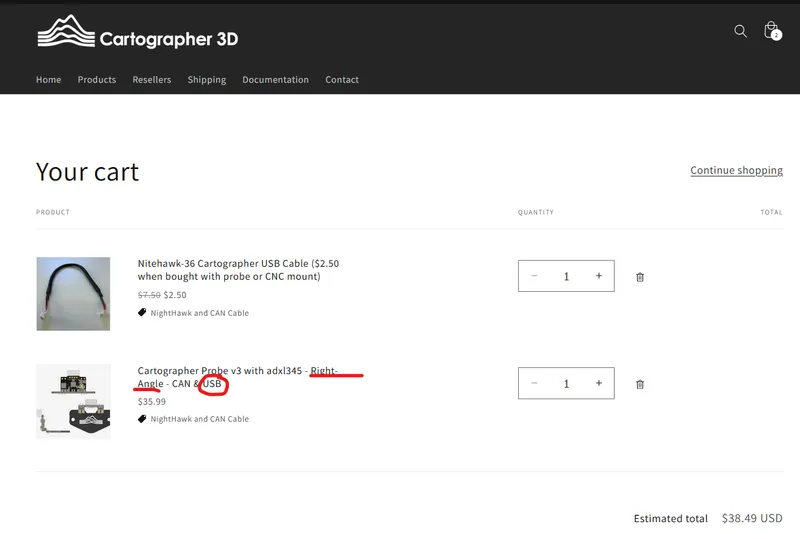

https://docs.cartographer3d.com/cartographer-probe/installation-and-setup/before-you-begin

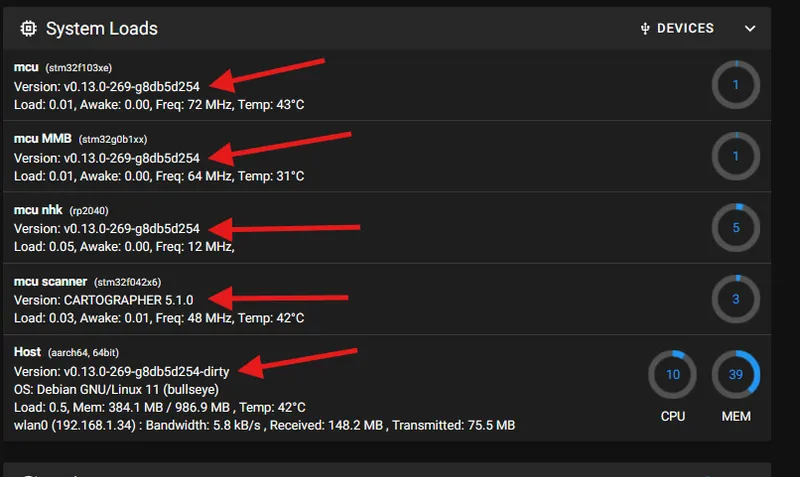

use the latest versions.

added a few configs.

[quad_gantry_level]
gantry_corners:
-60,-10
410,420
points:
  20,5   # Point 1
  20,285  # Point 2
  310,285 # Point 3
  310,5  # Point 4
speed: 500
horizontal_move_z: 10
retry_tolerance: 0.0085
retries: 10
max_adjust: 30

[stepper_x]
step_pin: PE2
dir_pin: !PE0
enable_pin: !PE3
rotation_distance: 39.76
microsteps: 32
full_steps_per_rotation:200
endstop_pin: tmc2209_stepper_x: virtual_endstop
position_min:-15
position_endstop: 342
position_max: 342
homing_speed: 25
homing_retract_dist: 0
homing_positive_dir: True

[stepper_y]
step_pin: PB8
dir_pin: !PB6
enable_pin: !PB9
rotation_distance: 39.80
microsteps: 32
full_steps_per_rotation:200
endstop_pin: tmc2209_stepper_y: virtual_endstop
position_min: -2
position_endstop: 362
position_max: 362
homing_speed: 25
homing_retract_dist: 0
homing_positive_dir: true

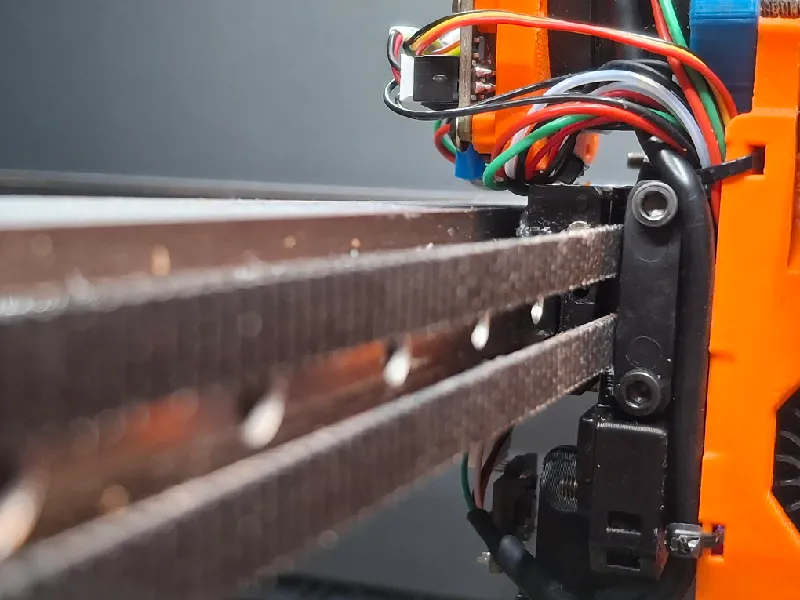

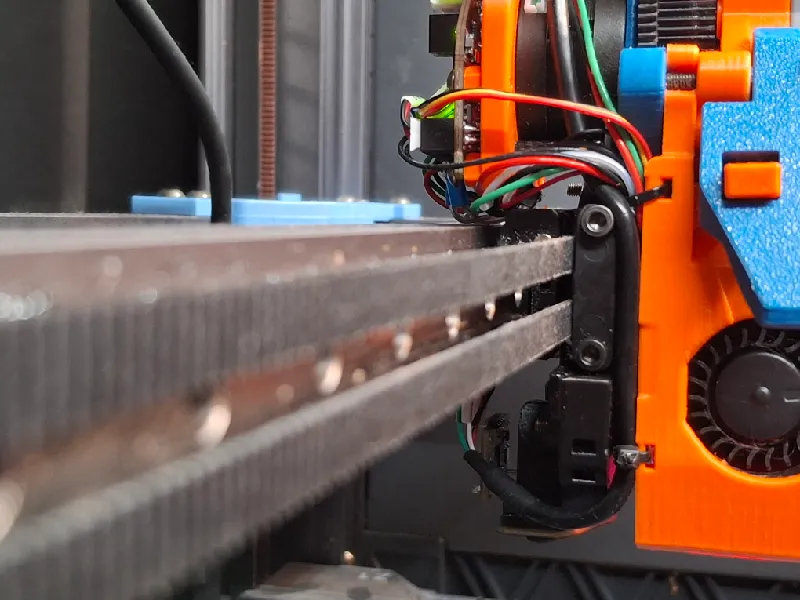

make sure your cables don't rub. re router them if needed. also don't over tighten your blade holder screws.
