Phone holder (case) Prawner by prawn.football

1. Functionality

Prawner is used in different kinds of sports activities for securing a mobile phone in a fixed position. The all-in-one grips allow placement on various sports equipment, tubes or tripods (optional).

2. Design

Printing settings. You should use infill=20% settings which is quite enough for the holder to be solid and durable.

The main elements of the design are :

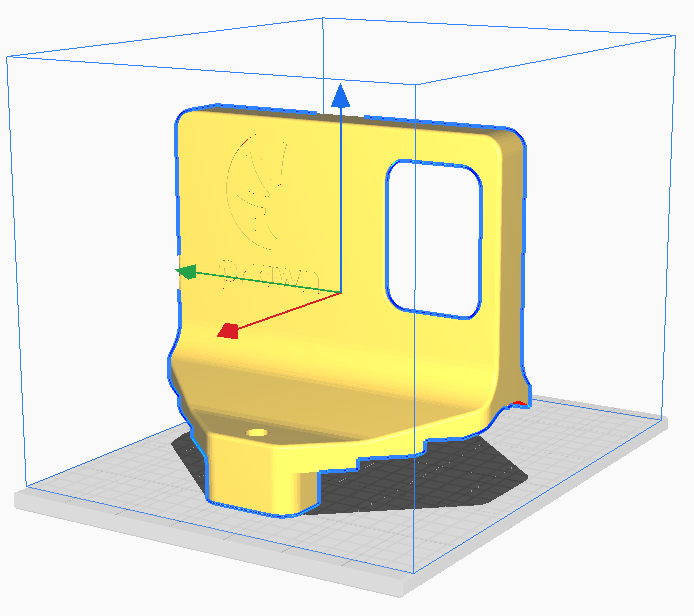

 Main holder part

It is where the phone is secured with tightened screws. The phone is placed between two opposite sides.

1. All-in-one camera opening for different sizes of phones and camera layouts.
2. The lower part has cutouts for grips to place on different tubes:

- square 12cm x 12cm

- square up to 8cm x 8cm (with additional liner included in the box)

- round up to Ø12 cm

- oval 12 cm x 8 cm (like football goals)

- Additional two openings for grips to place on the standard 1/4" tripod mechanism (optional).

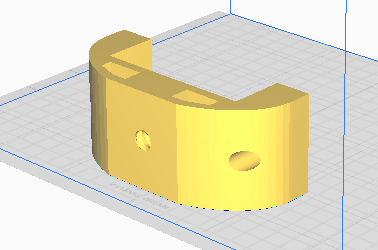

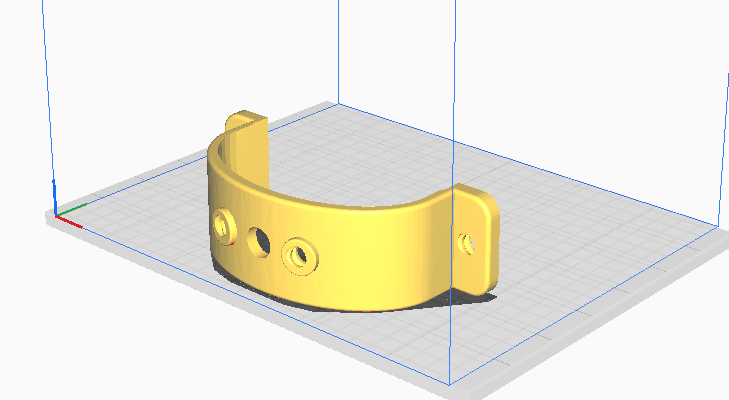

• Securing part

It is used to place the main part on the tubes of different sizes. It has 2 openings for screws at the lower part to secure uncommon tubes.

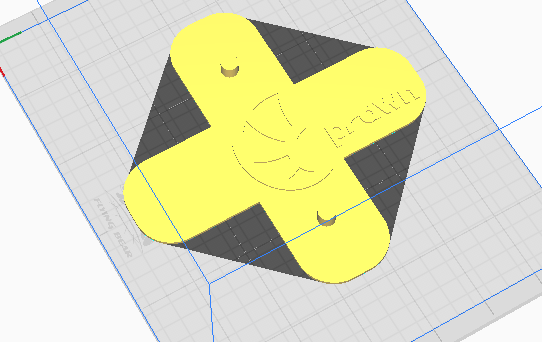

• Spacer

It is used for more secure placement on tubes of uncommon shape or diameter.

• Connection of parts is done with the help of special screws that are tightened easily and guarantee secure placement.

3. Advantages

• The parts can be connected in different modes for a wide variety of forms. There are no limits to the ways you use it.
• All-in-one design compatible with most phones and tubes.
• Secure and tight placement.

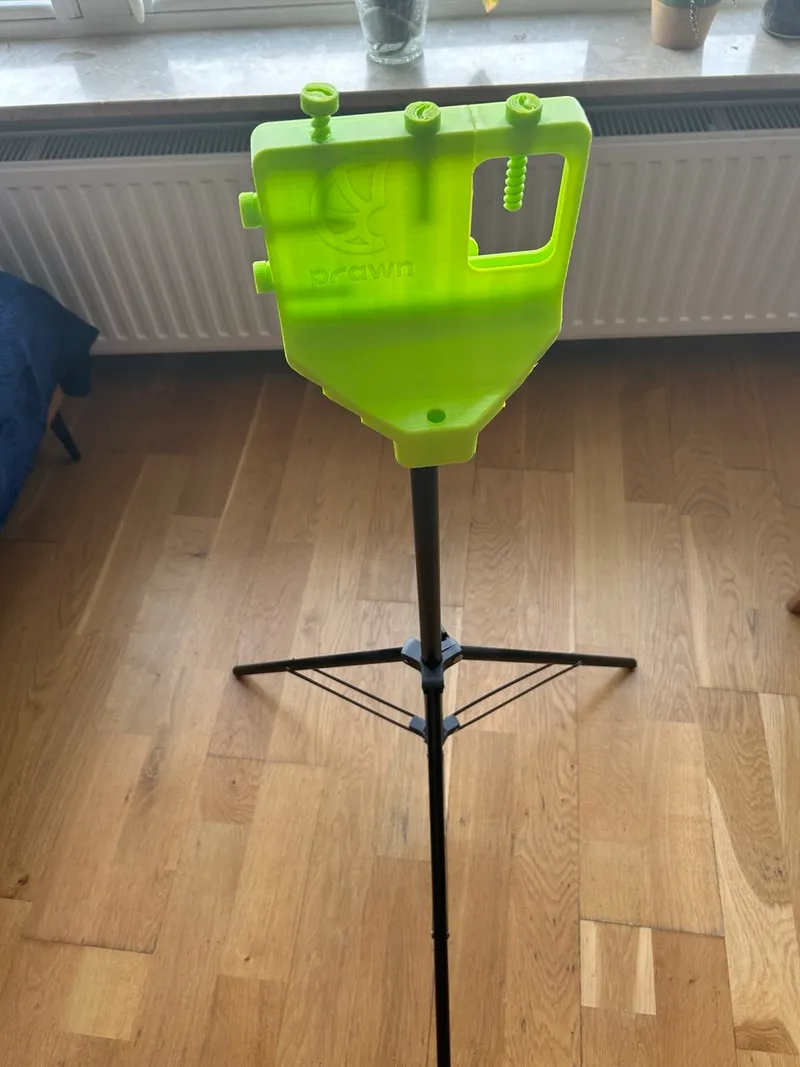

• Can be placed on tubes or just the usual tripod.
• Special spacers for uncommon tube sizes.

4. Assembly Modes
