Narrow Stack - Modular Storage Shelf Drawer For Tight Spaces

Narrow Stack is a compact and modular storage system that fits into tight spaces. Inspired by LeIN's Stackable Drawer. Feel free to remix on TinkerCad.

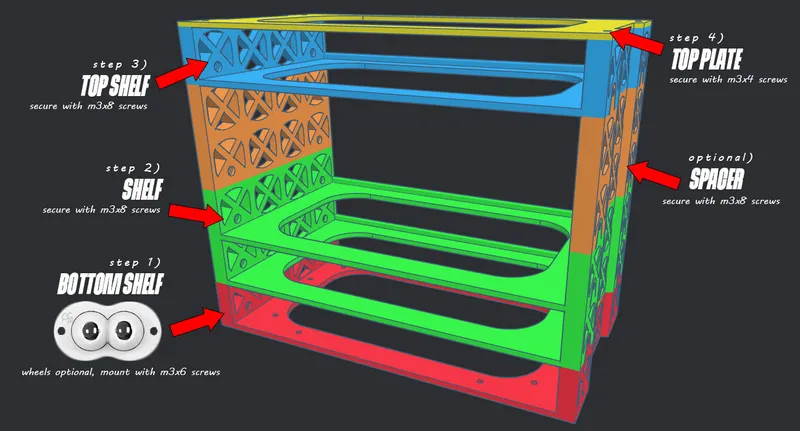

HOW TO BUILD

• Start with a bottom shelf (A1, A5, B1, B5).
• Stack as many shelves (A2, A6, B2, B6) as required, use M3*8 screws to secure the shelves.
  • You can stack without screws, but they reinforce and prevent the “tower” from collapsing.
• Add top shelf (A3, A7, B3, B7) and top plate (A4, A8, B4, B8), use M3*4 screws to secure the top plate.
• Optional - Use (D) spacers if you need higher shelves.
• Optional - Add caster wheels, use M3*6 screws.
• Optional - You can also expand the stack sidewards, use M3*14 screws to tie two stacks together.

SHELVES & DRAWERS

• Works as an open shelf (using solid shelves), drawers (C) are optional.
• Alternative - Buy grid storage boxes in bulk, should be somewhat cheaper with discount and free shipping.

MINI LABELS (OPTIONAL)

• Paste onto drawer/shelf with double sided tape, or just drop into grid.
• Print with 0.25mm layer height.
• 4 layers total, change filament at layer 3. Example : First 2 layers = white rectangle. Next 2 layers = black text.
• Font used : Roboto Condensed Bold

PARTS LIST

These are my affiliate links, they do not cost more. But I will make a small commission for every sale, that will help to offset some costs of my future projects.

• Adjustable Grid Storage Box (15 grids, 174x98x22mm) - Search On AE | This One
• Card Storage Box (Max 98x98x22mm) - Search On AE | This One
• M3 Screws
• Caster Wheels (2 bearings, 53x29mm) - Search On AE | This One

PRINT SETTINGS

• Material - PLA or PETG
• Layer Height - 0.2mm to 0.24mm
• Infill - At least 20%
• Supports - Can be printed without supports, except for the spacers.
