Pi Cam 3 mount with HDMI

I'm running a Pi Camera Module 3 with a CSI to HDMI adapter, and I made a case for the combo.
0
1
0
12
updated September 6, 2025

Description

PDF

I'm running an offical Pi Camera Module 3 with a generic CSI to HDMI adapter, and I made a case for the combo. The CSI to HDMI adapter I used is found on Amazon, link below. The adapter comes with nylon standoffs and mounting screws which I used to secure the camera and adapter together.

The assembled CSI to HDMI module slides into place, the tight tolerance allows for friction mounting of the board. The top cover snaps into place to further help with retention. The ball-cup mount is the standard size of most flexible mounts. Mines mounted to the 8mm poles within my enclosure with the base I made.

LINKS!>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

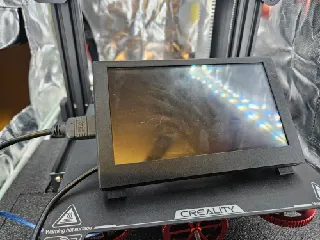

iUoyoMon 7" screen for RPi https://www.amazon.com/dp/B0F1D5PS5T?ref=ppx_yo2ov_dt_b_fed_asin_title

CSI to HDMI adapter https://www.amazon.com/dp/B06XDNBM63?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
