Federal Electric "fedelcode" type 1 siren

fedelcode type 1 model i made, going off reference photos of Newport, DE , Columbus, GA , Youngstown, NY fedelcode type 1 sirens. going off The siren wiki, the rotors are 9" wide, and using this info, imagemeter gave measurements for parts of the whole siren.

model info:

this model uses a 12V DC 365 motor, powered by 6V DC to sound accurate. for hardware, the stator is held on to the motor cover with 3mm machine screws. the housing is to be held on to the 2 plat bars by 2mm screws, but i left mine to just sit there without hardware. the louvers are to be glued to the main body of the housing.

print info:

rotor - 99% infill, supports are optional

stator - 60%+ infill, supports enabled

motor cover - 60%+ infill, supports enabled

all housing pieces - any infill, supports disabled.

will be revamped in the future.

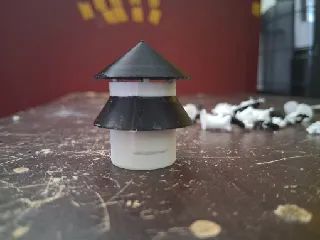

Edit: new thumbnail photo belongs to CB siren productions, CB's print is honestly better than mine!
