Chain Spray Nozzle 360°
With this spray head, the chain can be sprayed simultaneously and evenly on all sides. Fits all standard spray bottles.
In the contest Bike Gear
1,495
2988
21
15 k
updated
August 22, 2025
Description
PDFWith this spray can attachment, the chain can be evenly sprayed on all sides.
The attachment can be mounted onto standard spray heads and extension tubes.

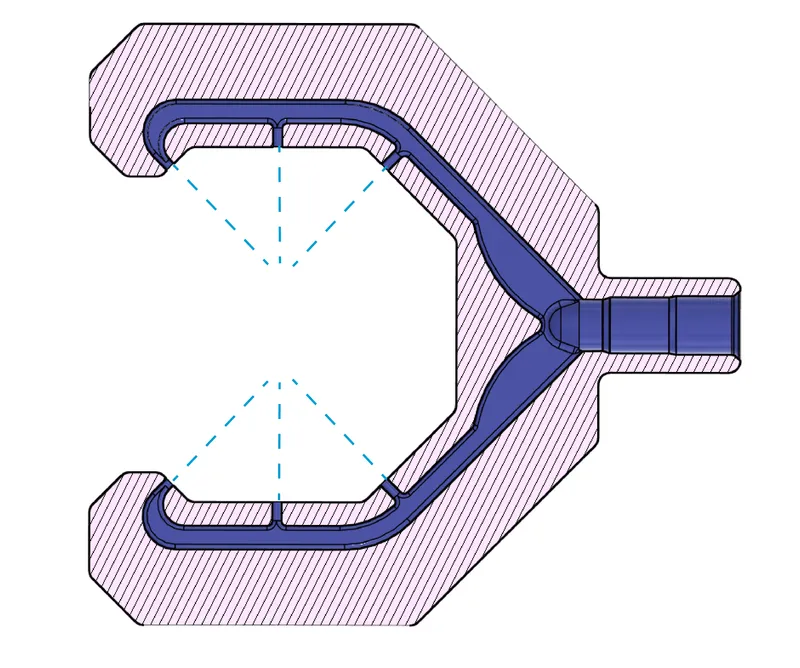

Inside the attachment, the liquid is distributed through channels to 6 nozzles.
PLA or a similar material can be used for printing. Do not print with support.

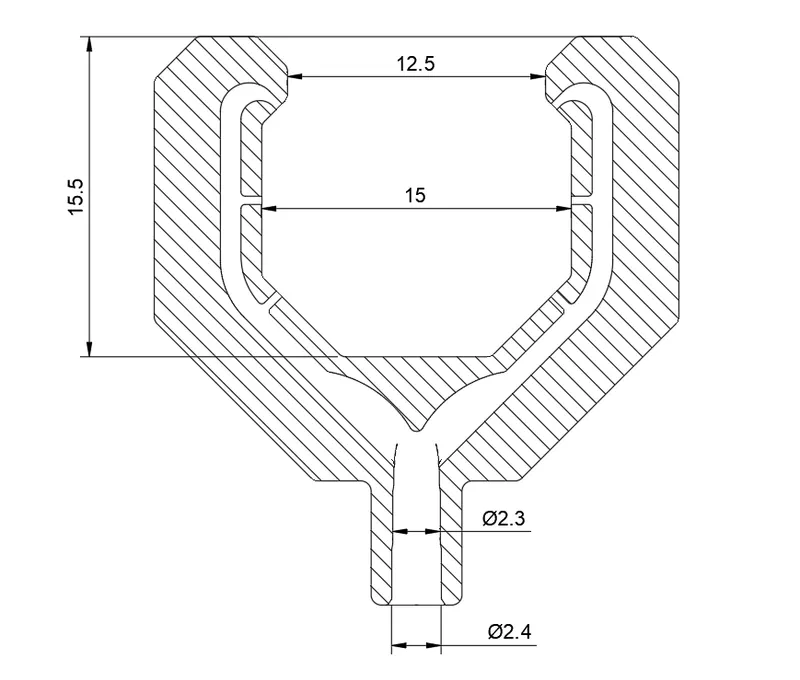

If the dimensions do not fit your needs, the model can be adjusted in Fusion360.
Tags
Model origin
The author marked this model as their own original creation.
