Bike Handlebar Bluetooth Speaker Mount

About

This is a Speaker Mount for the Soundcore Select 4 Go Bluetooth Speaker for your bike. After purchasing the soundcore speaker I envisioned using it while biking. So I made my own Mount for a bike.

This I think will also fit any of the JBL go speakers. I have not tested this. I have only googled the dimensions. Please comment if you try with any other speaker with this Speaker Mount and they work.

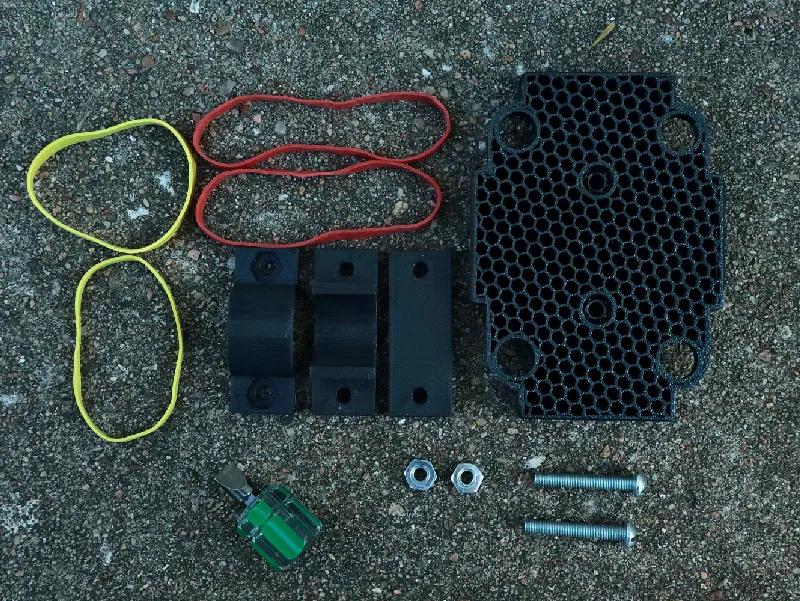

Materials:

• 1x Speaker Mount
• 1x Top Arch Clamp
• 1x Bottom Arch Clamp
• 1x Spacer
• 2x -30mm x 5mm Screws with Nuts

(I just found some Screws in my collection.)

• 2x ~92mm Rubber Bands
• 2x ~75mm Rubber Bands

(Just grab whatever Rubber bands you have if you don't want to buy any. That's what I did)

Printing:

I used Black PLA Creality Filament.

• Speaker Mount-- 10% Honey Comb infill (I did not have bottom layer print to achieve to awesome look!)
• Top Arch Clamp & Bottom Arch Clamp-- 25% Gyroid infill
• Spacer--15 Grid infill

Assembly:

Step 1:

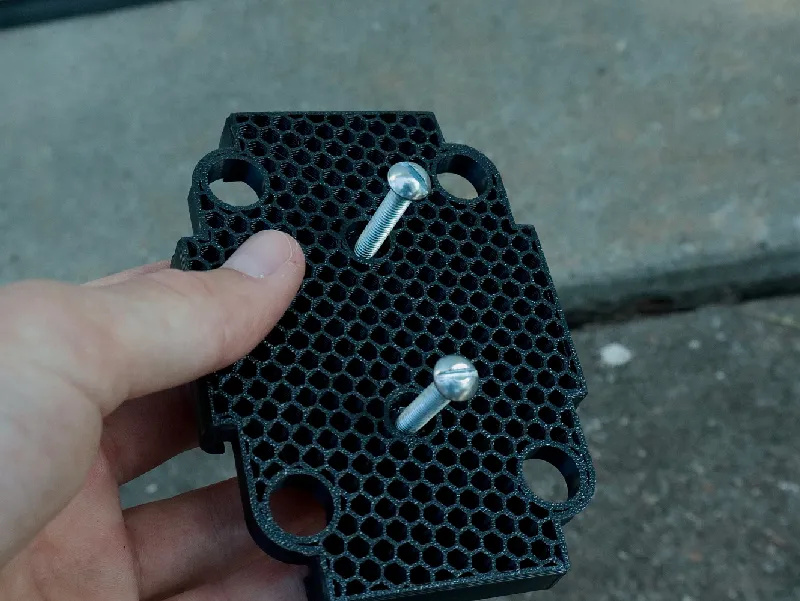

Put screws through the middle holes on Speaker Mount

Step 2:

Slide the Spacer on the screws.

Step 3:

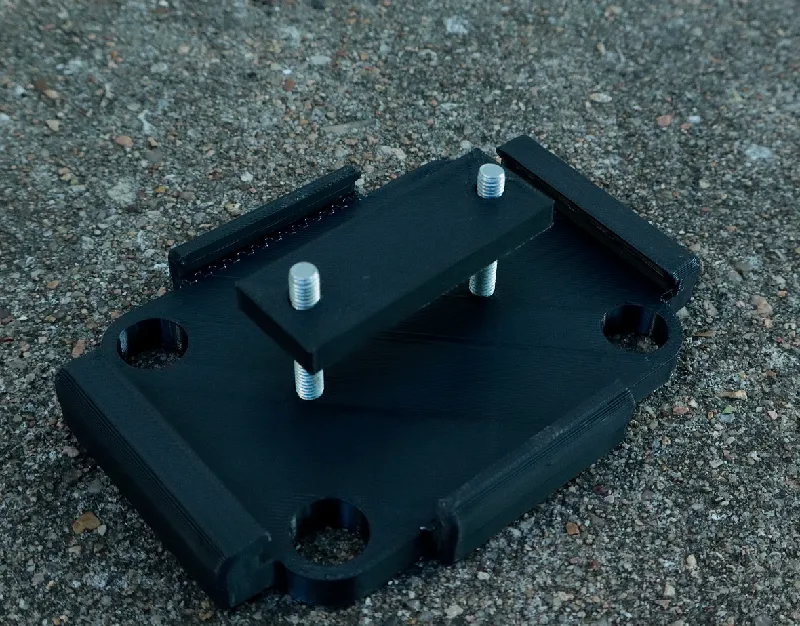

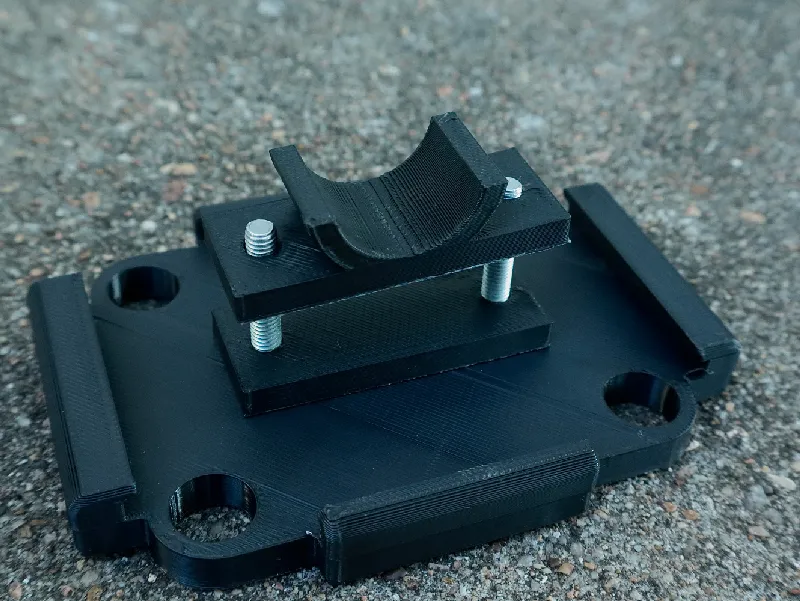

Slide the Top Arch Clamp on the screws on top of the Spacer.

Step 4:

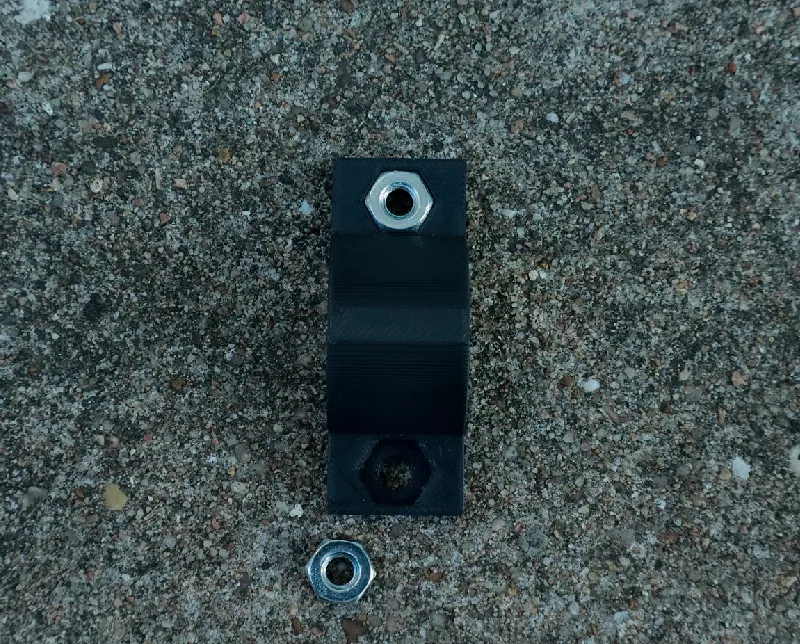

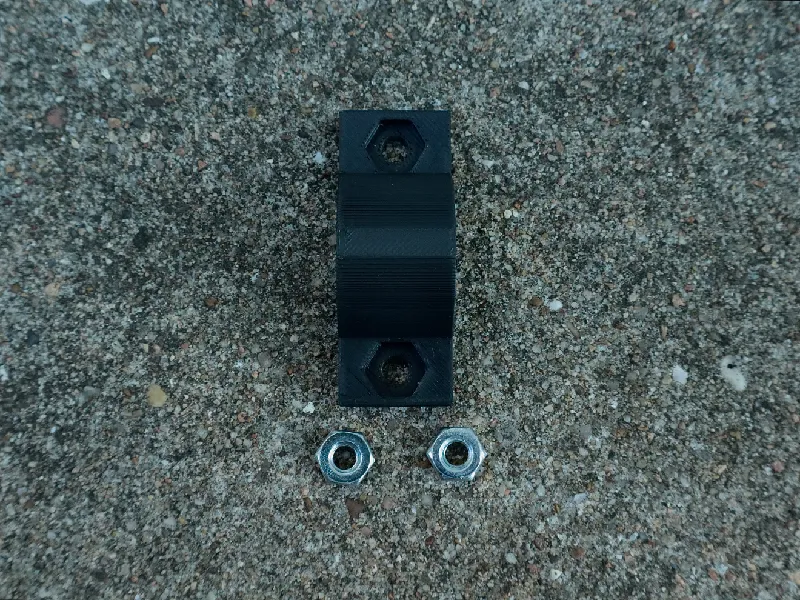

Grab the Bottom Arch Clamp and the Nuts from the screw in the hex holes.

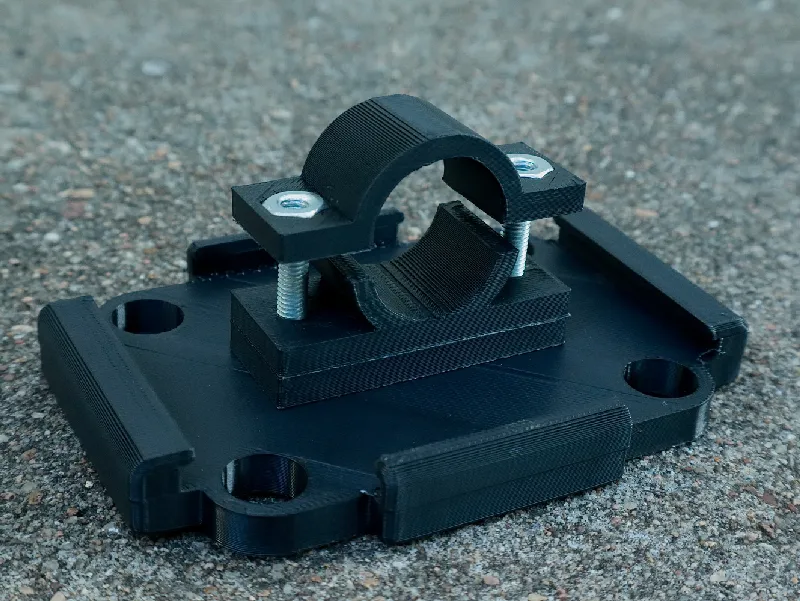

Step 5: You're done!! Go put it on your Bike!!
