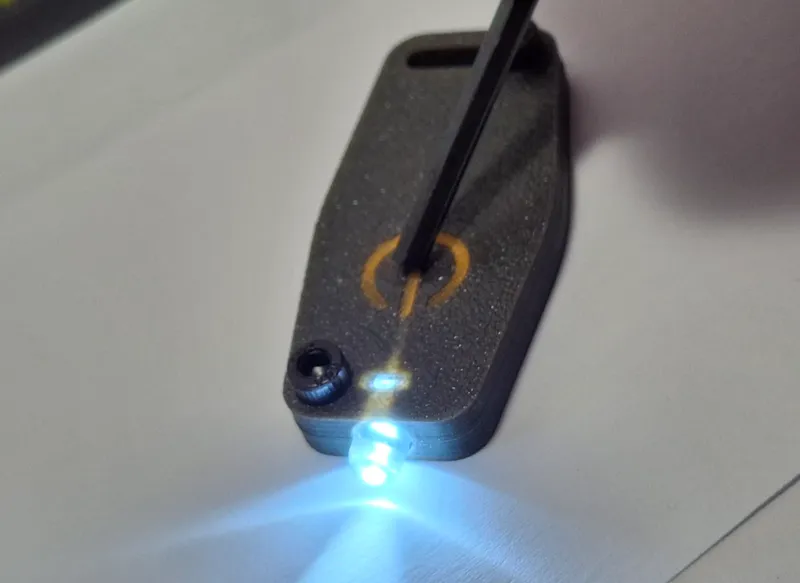

Keychain LED flashlight - Customizable Parametric Logo/Text!

Recommended print settings:

• Material:  PLA
• Layer Height: 0.10
• Infill % : 15+
• Supports: No
• Print Orientation: Default as modeled

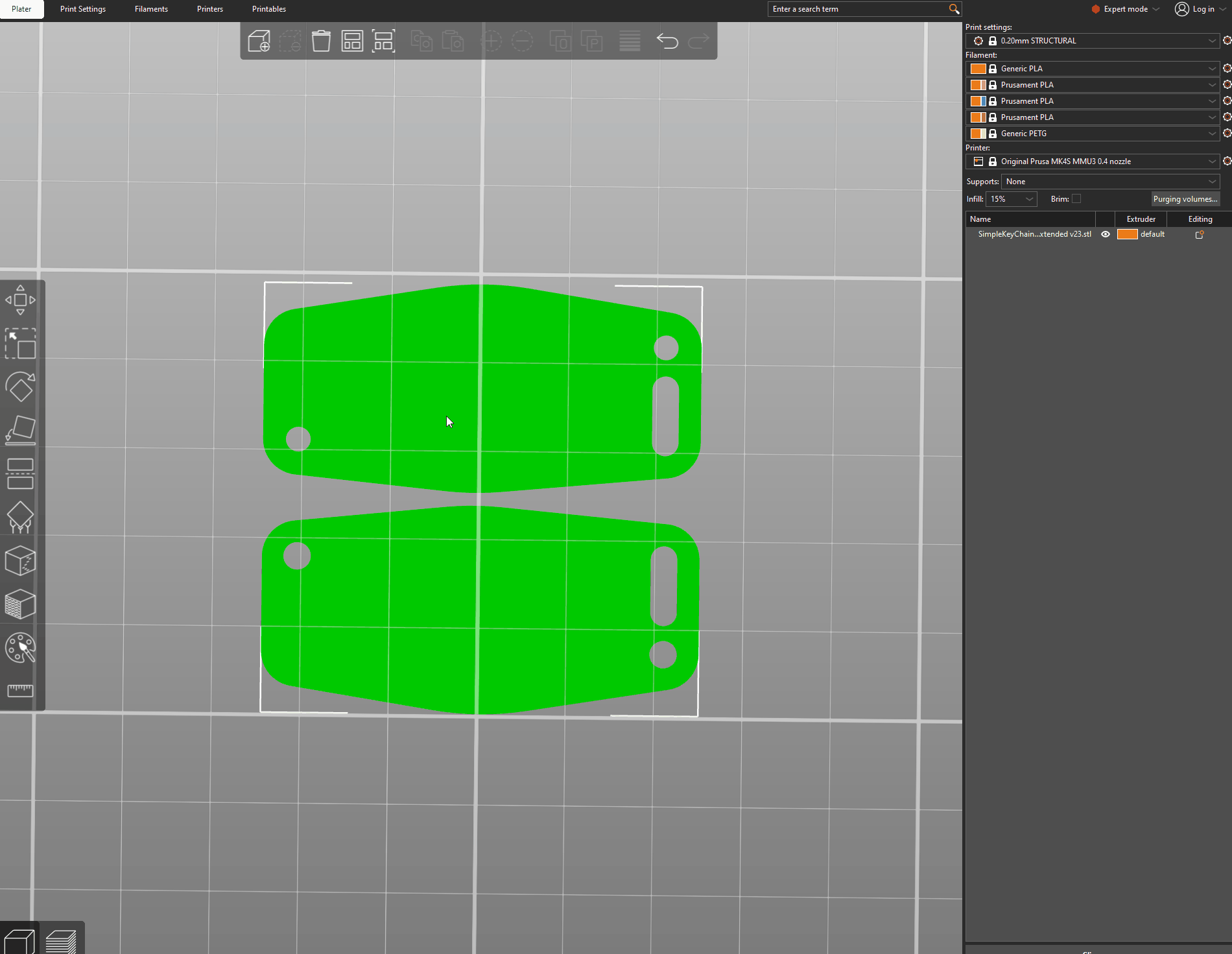

To customize, open the 3MF file in PrusaSlicer, and edit the SVG or Text - or add your own!

Required Parts:

Only three non-printed items are required:

*This model has no threads - the fastener grabs the print, so other similar sizes can work.

Assembly instructions are similar to the previous design: https://www.printables.com/model/1352790-lamp-light-assembly-minimal-parts-a-keychain-flash#assembly-

1.  Insert the LED with the positive lead on the bottom (marked with the +)
2. Add the battery.
3. Bend up the negative lead on the LED.
4. Slide the top onto the LED - adjust as needed, so the the light only comes on when pressed.
5. Install the fasteners to complete the process.

Increased the overall size.

Added a power button indication (https://www.svgrepo.com/svg/144497/power-button)

Eliminated the need for tape on the battery.

Added customizable logos and text - edit in your slicer!
