Description

PDF

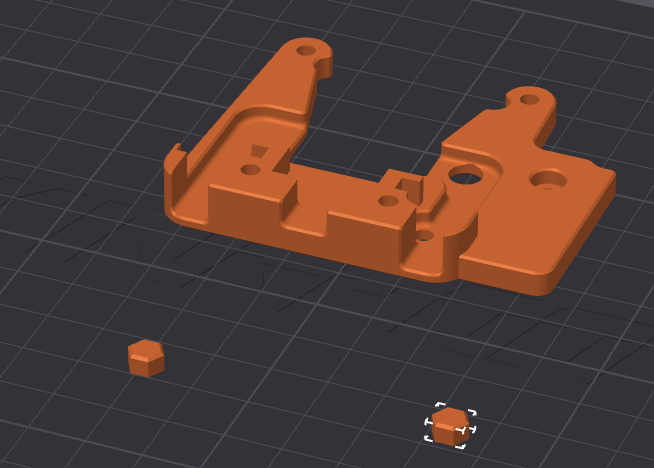

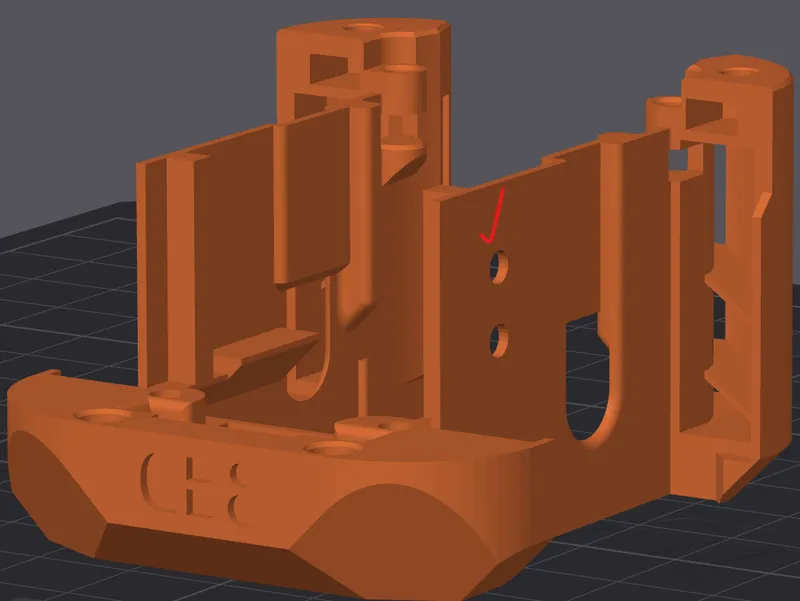

I modified original to avoid interference with the LM block.

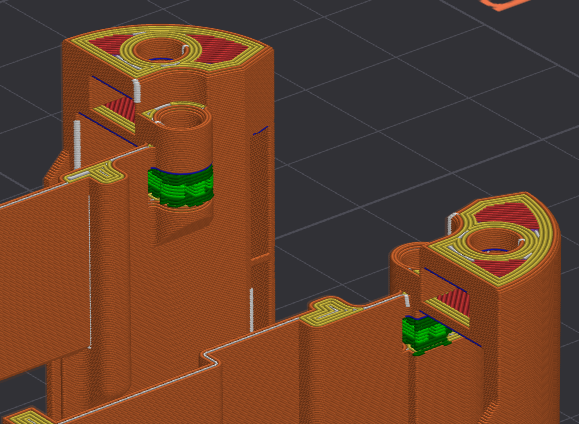

Eddy mount is designed with support at a 0.08mm spacing.

M3 x 6 Socket head screw *2 (Dragon burner ← Dragon burner mount)
M3 x 12 Socket head screw *2 (Dragon burner ← EDDY COIL mount)
M3 x 18 Socket or button head screw *2 (EDDY COIL mount ← EDDY COIL)
and 6 * M3 nuts are required

 *TZ-3.0 hotend used

Tags



Model origin

The author remixed this model.

Differences of the remix compared to the original

Modified, to install the Dragon Burner and Eddy Coil together on the KP3S.
