Please read:

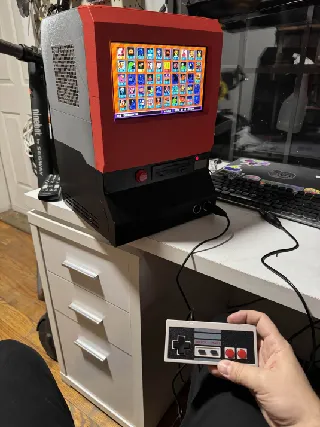

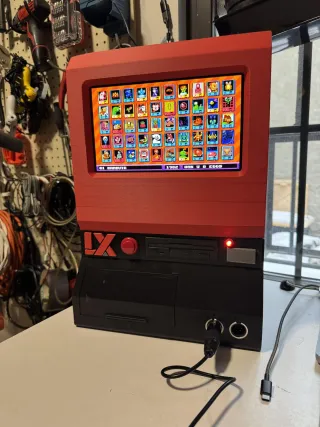

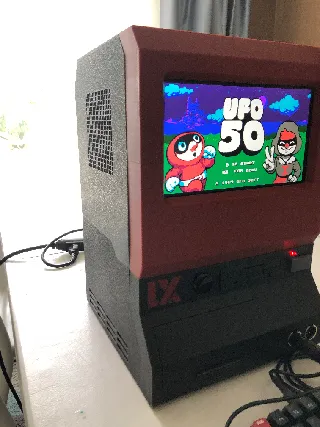

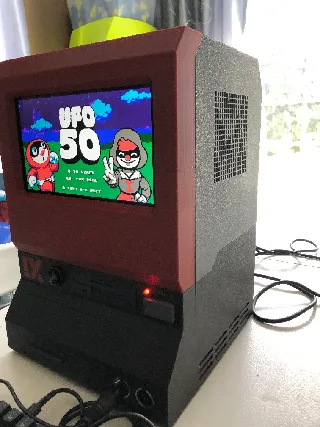

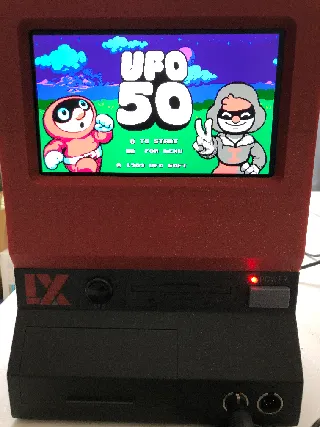

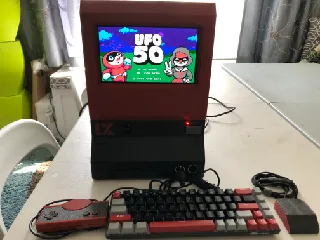

These are the files as I used them to make my LX system replica.

This includes raw STL files of each part as well as a bambu lab 3mf file that includes the parts pre cut into parts that fit the P1S build plate (256 x 256)

Please ensure you use supports where needed.

This model requires a 4 color multi-color printer. I use a Bambu Lab P1S with AMS. Alternatively you could design a label to print on a 2D printer.

This also includes the list of materials, as well as some basic assembly notes and observations.

Please be advised that this is an advanced project. This is not a beginner 3d printing or electronics project. Just know that in order to make something that functioned as mine did, you will need to know soldering, how to send code to an arduino, ability to trim a pcb and much more.

I want people to make this their own. Do not feel the need to copy mine exactly. Consider this a starting point.

I'm also including sounds to set as system sounds.

Happy to answer any questions!

BILL OF MATERIALS:
HDMI EXTENSION https://www.amazon.com/dp/B096YFNXQJ
POWER INLET https://www.amazon.com/dp/B0BCYYNRGP
GREY FILAMENT https://www.amazon.com/dp/B09X1KC61Z
RED FILAMENT https://www.amazon.com/dp/B0BD7KXV4K
BLACK FILMENT https://www.amazon.com/dp/B07XG3RM58
9 INCH 720P SCREEN https://www.amazon.com/dp/B0C2ZJY8KR
XLR JACK https://www.amazon.com/dp/B0BPCC22FW
XLR CONNECTOR https://www.amazon.com/dp/B0BPKVJWW2
FLOPPY ADAPTER https://www.amazon.com/dp/B07WCRF9H3
NES USB CONTROLLERS https://www.amazon.com/dp/B07M7SYX11
24MM BLACK SANWA BUTTON https://www.ebay.com/itm/171721479181
GAMECUBE POWER BUTTON https://www.ebay.com/itm/266243035237
ARDUINO https://www.amazon.com/HiLetgo-Atmega32U4-Bootloadered-Development-Microcontroller/dp/B01MTU9GOB/
Super Glue (cyanoacrylate)
Hot Glue
screwdriver
I used an old ASRock Deskmini PC, I would advise gutting some other random mini PC. I did not have any specific motherboard mount. Mine is held in by gravity.
1 RED LED

","category":{"id":"100","path":[{"id":"21","name":"Gadgets","nameEn":"Gadgets","description":"Everyone loves smart gadgets. Use 3D printing to make amazing items for audio, photo & video, computers, and phones. Top models are ready to download for free.","__typename":"CategoryType"},{"id":"100","name":"Video Games","nameEn":"Video Games","description":"Level up your gaming experience! Pick from a wide range of awesome gamer gear upgrades and accessories!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-08-07T14:11:01.847218+00:00","firstPublish":"2025-08-07T14:10:20.114188+00:00","datePublished":"2025-08-07T14:11:01.832431+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"The iconic computer from the 80s is back!","likesCount":3,"makesCount":2,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":77,"displayCount":518,"filesCount":2,"privateCollectionsCount":3,"publicCollectionsCount":0,"pdfFilePath":"media/prints/1377806/pdfs/1377806-lx-ii-system-ufo-50-with-build-instructions-436991e4-df2e-4952-864b-e8b8939a26e3.pdf","commentCount":2,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"4742855","filePath":"media/prints/0f891d63-6ea4-480e-82d4-ebf31f240b18/images/10400692_2c3cd039-2fa0-45fb-b6a4-f0ea94bd6fa1_f390c1e1-1030-4458-930f-83468231bdeb/il_fullxfull6363962572_2yn4.webp","rotation":0,"imageHash":"2FgGDwTAt6WfaJa1Wch19laG92+2T2kD","imageWidth":920,"imageHeight":948,"__typename":"PrintImageType"},"images":[{"id":"4742855","filePath":"media/prints/0f891d63-6ea4-480e-82d4-ebf31f240b18/images/10400692_2c3cd039-2fa0-45fb-b6a4-f0ea94bd6fa1_f390c1e1-1030-4458-930f-83468231bdeb/il_fullxfull6363962572_2yn4.webp","rotation":0,"imageHash":"2FgGDwTAt6WfaJa1Wch19laG92+2T2kD","imageWidth":920,"imageHeight":948,"__typename":"PrintImageType"}],"imagesCount":1,"tags":[{"name":"ufo","id":"2683","__typename":"TagType"},{"name":"ufo50","id":"249189","__typename":"TagType"},{"name":"lxsystem","id":"319116","__typename":"TagType"},{"name":"derekyu","id":"319117","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"5804921","filePreviewPath":"media/prints/434b68fc-17db-4471-8e4f-565b226bdaa9/previews/9662407a-1a54-4552-aada-7b9dcef3c173.png","__typename":"STLType"},"license":{"id":"7","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"easyprintProjects":[],"__typename":"PrintType","eligibleForNomination":true,"priceBeforeSale":null,"user":{"id":"237853","handle":"lukethemaker_237853","verified":false,"dateVerified":null,"publicUsername":"lukethemaker","avatarFilePath":"media/auth/avatars/d0/d01ce310-bbcc-4a50-a02b-6f130961d81f.jpg","badgesProfileLevel":{"profileLevel":12,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"isHiddenForMe":false,"canBeFollowed":true,"billingAccountType":"personal","lowestTierPrice":null,"designer":false,"stripeAccountActive":true,"membership":null},"contests":[],"contestsResults":[],"prusameterPoints":null,"latestContestResult":null,"referencingArticles":[]}}}
