THRUSTMASTER : T300RS Accessories

Material needed :

• 4 magnets, dimensions 8*2.5mm, and for best feeling : N52
• Cyanoacrylate glue, or any liquid superglue
• 2 pieces of double-sided 3M, or double-sided tape, 2*1cm

Magnet properties and instructions :

• Add one drop of cyanoacrylate glue (super glue) into one of the two holes of the printed part.
• Insert one magnet into the glued hole. Make sure the magnet is fully seated and allow the glue to cure completely before proceeding. Wait at least 5 minutes.
• Once the first magnet is secure, repeat the process with the second magnet and the other hole.
• After both magnets are glued and fully set, take one of the double-sided 3M adhesive pads and stick it to the back of the 3D printed part.
• Important: Determine which side of the T300RS wheel is compatible with the printed part before continuing.
• Once you've identified the correct side, firmly tape the 3D printed piece to the T300RS wheel.
• Repeat the same steps for the second printed piece.

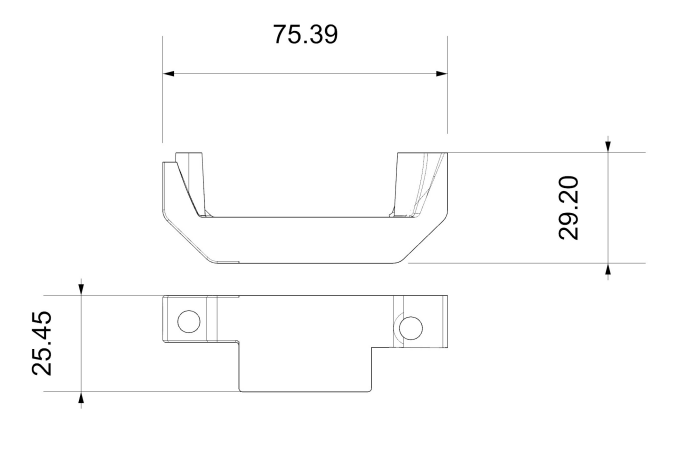

Technical information for all model files :

• Nozzle size: 0.4 mm
• Layer height: 0.2 mm (Quality)
• For more durability, add :
  • Infill : 15%
  • 4 perimeter layers
• No support needed
• Materials recommended: PLA
• Printer used for prototyping: Prusa MK4/Prusa Core One
• Type of bed used for prototyping: textured

Notes:

• All printers have different tolerances, we aimed to make a set of files that works on the maximum number of printers but your mileage may vary
• Customize at your own risks !
