GEN2 240-2W-1.5H Decor Drawer

⭐ Love the GEN2 system?
Support the project by joining the Jerrari Club or picking up a premium faceplate collection, it means a lot and helps fuel future designs.

	JERRARI3D.com

The GEN2 Modular System is a 3D printable storage solution offering ultimate flexibility and customization. Perfect for home users, hobbyists, and small businesses, so you can print exactly what you need and customize every piece to fit your space and style.

Unlike store-bought sets, GEN2 lets you print only what you need and expand your setup whenever you want. The drawers snap together seamlessly, giving you endless expansion possibilities. With the unique QuickLock mechanism, rearranging or relocating drawers is quick and effortless, so your storage can grow and adapt with you.

DECOR DRAWERS
This drawer features a modular face allowing you to install customizable faceplates on the front that you can change at any time. It also lets you print the majority of the drawer with less expensive material and use only your most precious filaments on the faceplate.

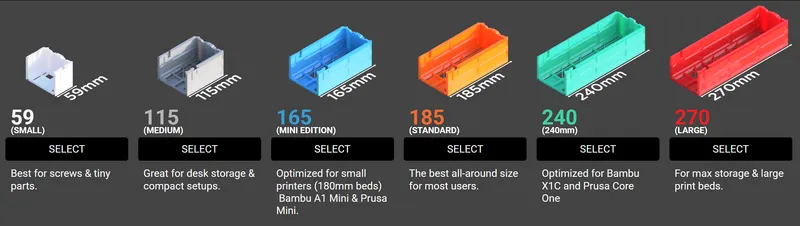

240 Collection

The 240 Collection is all about getting more out of your printer without changing a thing. Sized to match the build plates of popular machines like the Bambu X1C and Prusa Core One, these longer drawers give you extra storage in a single print, perfect for tools, parts, cables, or anything else that needs a dedicated space. Find all the 240 models HERE

STEP 1: Location

Decide how you would like to use your GEN2 storage. Keep in mind that the drawers are modular and can be easily swapped between under table and table top locations. All drawers are available for mounting under the table using rails, but you can also place them on top of any surface with table top kits.

Find these kits at JERRARI3D/gen2-modular-system

What You'll Need

Visit Jerrari3D.com for a list of all compatible drawers.

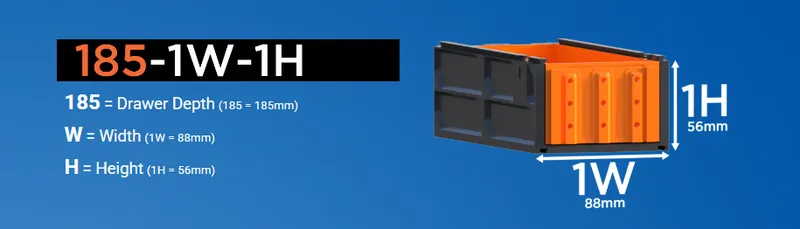

Understanding Part Names
GEN2 drawers are titled by length, width and height, such as in this example.

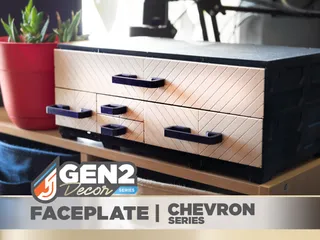

STEP 2: CHOOSE A FACEPLATE

Download and customize faceplates HERE


HARDWARE

Includes affiliated links to help support my projects
• Filament - PETG or PLA
• Screwdriver
• Magnets (Optional): 10x2mm or 6x2mm
• M3 nuts and screws: Stainless-Steel or Steel


UNDER TABLE (GEN2 RAILS) HARDWARE
 • Countersunk woodscrews: (SAE: #6 or #8 up to 1/2" or longer) or (Metric: 3.5x16mm or longer)
• Drill bit that is smaller diameter than the wood screws (My Recommendation)
• Pen, Marker, or Scratch Awl (for installing under tables)


INSTRUCTIONS

This model includes helper disks that help with bed adhesion. They can be easily removed by hand or toggled off in your slicer if not needed. Printing with cheaper filaments in a non enclosed printer may be challenging to prevent warping with a print of this size.

🔧Visit Jerrari3d.com for Step-By-Step Instructions

For basic instruction on assembly please check out the above videos

UPDATE:

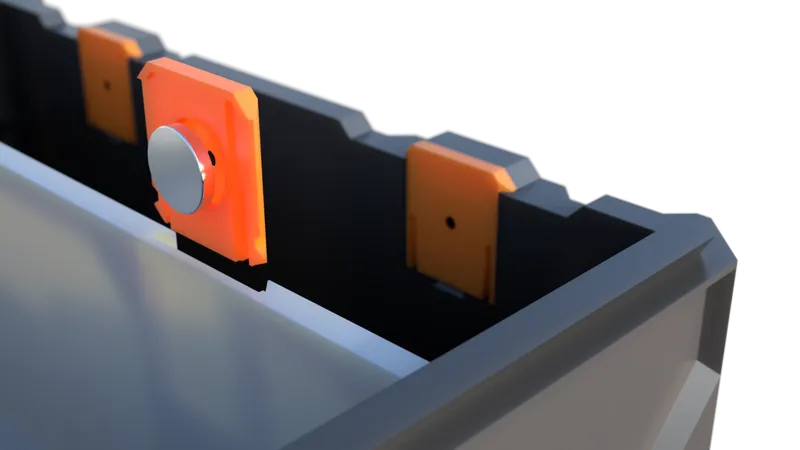

• NEW Magnet Clip - This replaces the magnet slots with a more reliable and universal design.

Tip:

Printing large models near the edge of a printer's build plate can sometimes lead to edge curling up deforming the rail. Here are some ways you can combat this:

- Clean your entire build sheet using detergent or 99% iso alcohol, additional adhesion can be achieved with glue sticks or adhesion promoters like Nano Adhesive
- Print with an enclosure to prevent drafts and cooler temperatures, preheat the enclosure for a few minutes prior to printing.
- After the print completes wait for the build plate to lower to room temp before removing the model.
- You can always print with materials that print easier and warp less during printing such as PLA

Please note: The Non-Commercial license refers specifically to selling prints. You're absolutely welcome to use my designs in commercial environments—I actually encourage you to use them anywhere you see fit! 👍
