Skadis to Kallax mount adapter

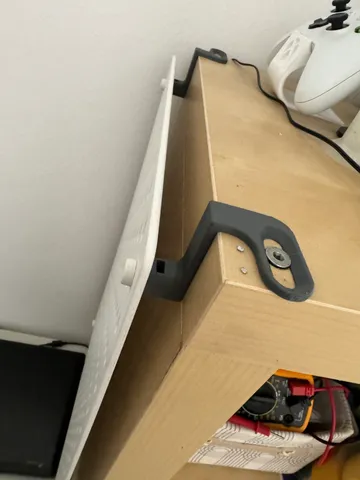

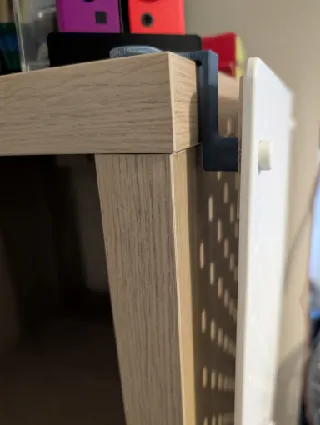

The Kallax seems to come in a few slightly different sizes, On mine the bracket has the gap others have mentioned on the long side, and on the short side the bracket is too small.

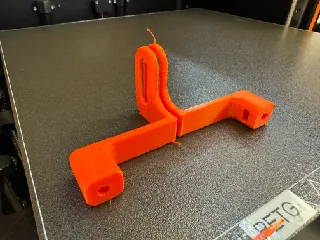

A must print in PETG, While the space can be concerning, I find the screw hole too big

Works well for me (edited)

Very good model, easy print, the hole for the nuts are perfectly sized.

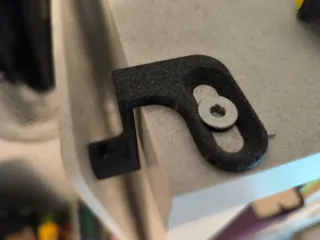

There is definitely some extra space behind the mounts, but so far no problem. It held all the force I was willing to try putting on the skadis board.

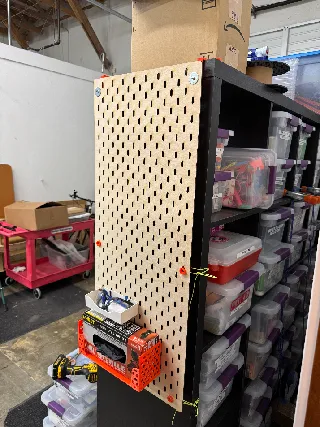

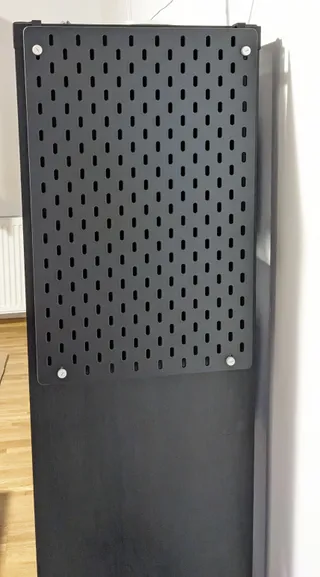

Absolutely "good enough" bracket for attaching our custom laser-cut Skadis panel to a 5xz5 Kallax shelf. The top oval slots for the heavy IKEA woodscrews seem flimsy, but apparently they won't experience much load. The connectors align with the skadis board's outermost slots of the second row. M4 nuts dropped right into the connectors despite printing without supports. I put washers under the M4 socket head cap screws for extra strength. The skadis rack needs spacers or standoffs on the bottom for support.

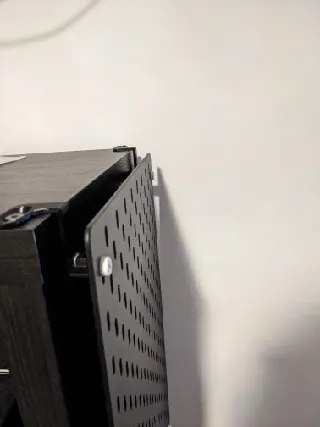

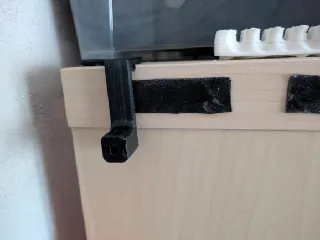

I thought it was just people having bad XYZ representation when I saw the pictures but nope, the model is just that bad. There's a big gap where the corner of the adapter is and it doesn't sit flush with the Kallax. Waste of filament.

Thanks!

funktionierert prima

Works great! Pla, 75% infill
