Description

PDF

I randomly found myself wishing that the SLAB had a ball detent system like many of SillyButts' other blasters(Not like it would be that useful, your hand keeps it closed already), but I realized that magnets are way easier. So this model has 5 holes in both the lever and the stock core A that keep the lever in. This takes 10 6x3mm magnets, but you don't have to fill all the holes if you want it to be weaker.

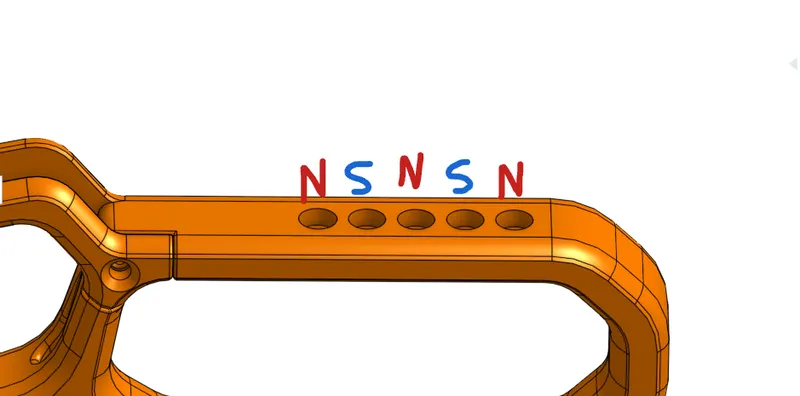

When gluing in the magnets, ensure that you alternate the polarity facing outward on each part.

When one side is glued, place the other set on top of the first set and push the lever and the stock core together, placing the other set with the correct polarity. (Make sure to put glue in beforehand.) and either let the glue dry before separating the parts, or slide them sideways from each other so that the magnets don't get pulled out.

Then just install and use the parts like normal.

Tags



Model origin

The author remixed this model.

Differences of the remix compared to the original

Added holes for magnets
