Gridfinity Modular Drawer System

🚨READ BEFORE PRINTING🚨

Gridfinity Modular Drawer System 🧩

Take your Gridfinity setup to the next level with this fully parametric modular drawer system, designed for customization, strength, and style.

Included Models 📦

Each drawer size includes:
- 🧺 Drawer – 1 version per grid size.
- 🧊 Shells – 4 types per size:
  - Bottom
  - Middle
  - Top
  - Single-piece
- 🦶 Universal Feet – One model fits all shells, and should be glued to its designated spot on the bottom drawer.
- 🍽 Gridfinity Top Plate - 1 version per grid size (for widths of 2 units or less, Gridfinity Top Plate is not possible)
Sizes range from 2×2 to 4×4 grid units (widths smaller than 2 units are not possible). The first number in the file name is its width, and the second one is its depth. All provided drawers are designed with:
- 100mm drawer height
- 20mm arc radius

Printing Tips 🖨

- Support-free design except for the drawer handle.
- Designed with efficient printing in mind — but expect large filament usage depending on your size.
- Print the shell and the drawer out of PLA, and the feet out of TPU.

Key Features 💡

Fully Parametric Design 📐

- In case the sizes I’ve provided don’t suit your needs, create drawers in any size you want — from a 2×1 all the way to ♾×♾.
- Easily tweak:
  - Drawer height
  - Arcs’ size (how wide they are). Note: when you change the arcs’ size, beware - if you will change it to half of the drawers’ height, in case you’ll want to change it to anything smaller, issues will occur.
  - Grid size

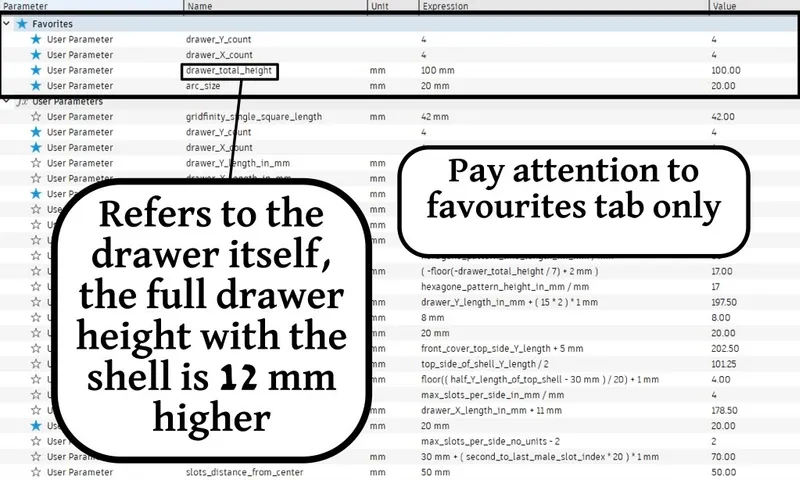

- All done via the included Fusion 360 file, with user-friendly parameters.

Sliding Locking Mechanism 🔐

- Drawers connect horizontally using a jigsaw puzzle-style sliding rail.
- Once connected, lock them in place with the built-in locking teeth — no accidental slide-outs.

Drawer Locking Mechanism 🛝

 Just slide the drawer all the way into its shell, drop it down, and it slides into a track that stops it from coming back out until lifted. Clean and satisfying.

Built-in Gridfinity Base 🧱

Every drawer comes with an integrated Gridfinity baseplate — this defines its size and makes it plug-and-play with your existing system.

Compatibility 🔗

All The sizes are compatible with one another.
