No. 11: Right Angle Belt Transition - 507 Mechanical Movements
The mechanism No. 11 from the book "507 Mechanical Movements"
9
14
0
84
updated
August 10, 2025
Description
PDFAll the parts are designed so that no post-processing is needed (removing supports, sanding...) and only 3D printed parts are needed (except for the belts).
Happy printing

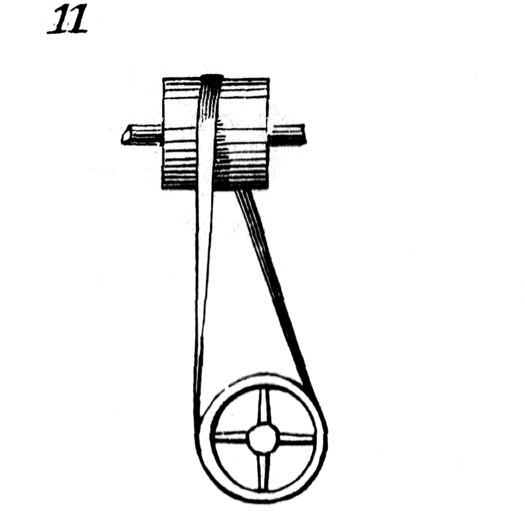

Another method of effecting the same result as No. 3, without guide-pulleys.
