HMSTR.0 - Toy Dart Blaster compatbile with X-Shot Skins Flux Internals

Let me know if you need other variants.

UPDATE 250722: added a replacment Pull Rod

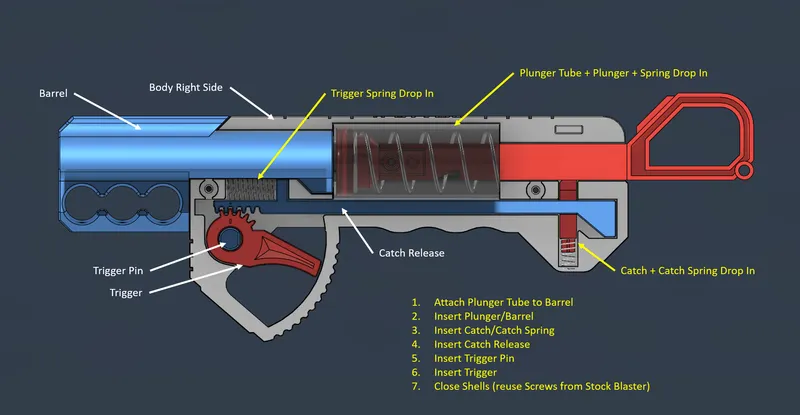

Included Files:

• Body Left Side
• Body Right Side (Versions for Heat Inserts or Plastic Screws)
• Trigger
• Trigger Pin
• Catch Release
• Halfdart Barrel
• Halfdart Barrel with Bottom and Top Rail (usable for Bayonet)
• 2x Inline Clip Barrel
• 3x Inline Clip Barrel with Bottom and Top Rail (usable for Bayonet)
• N1 Dart Barrel
• Mega Barrel with Bottom Rail (usable for Bayonet)
• Mega Barrel with Top and Bottom Rail (usable for Bayonet)
• Blade (please print in TPU for Safety!!!)
• Pica Pins to attach Blade

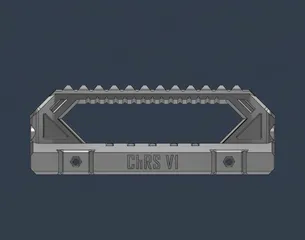

• Clamp Parts Left and Right to attach the HMSTR as Masterkey or Bayonet

additional Hardware needed:

• Internals and Screws of a X-Shots Skins Flux
• In Case you want to use Heat Inserts and M3 Screws instead of the plastic Screws: 2xM3x6mm Heat Insert + 2xM3x8mm Screw
• Clamp Files need 3x M3x30mm cylindrical Screws and Bolts
• Please add hot glue, E-Tape or a fitting O-Ring when assembling PlungerTube to barrel to ensure a good air seal

Since both shell parts are meant to be printed on the side surface, please ensure that you have your first layer parameters dialed in.

Please get in touch if you think the files need any adjustments.
