Portable Hangboard for Climbing

-------------------------------------------< Description >-------------------------------------------

Ever wanted to warmup your fingers at the crag?

Follow a routine for preventing finger related injuries or secretly train during a zoom meeting?

Then this device is for you!

It provides a comfy 20mm edge but can accept different width inserts (5 and 10mm) to make it more difficult!

The inserts are magnetically secured to the base to ensure they do not move or fall out during training or transport. They feature 2 holes; one for easy removal on the side and one for 2 finger pocket training.

The device is designed to accomodate a 5mm rope, that can be wrapped around an anchor or your feet for easy training or warmup.

-------------------------------------------< Intructions >-------------------------------------------

---Material---

The board is printed using PLA filament at 190-205°c.

---Settings---

Quality

• Layer Height: 0.14

Above 0.16 seem to reduce strength and should be avoided.

Strength

• Wall loops: 5
• Infill density: 100%

Supports

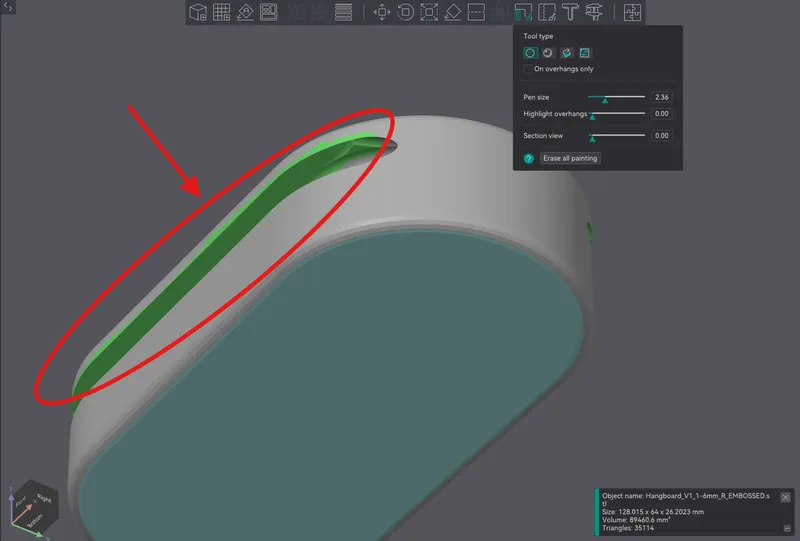

Only really necessary on the outside lip where the rope goes but not inside the tube like so:

In case of warping caused by poor bed adhesion, adding single layer cylinder next to each rounded sides of the piece can go a long way (they must be touching but not overlapping).

Magnets

The board and the inserts are designed to integrate 6x3mm magnets.

They should be added during printing (while paused ofc) for the inserts and after printing for the board (with a bit of glue). Feel free to modify the size of those holes for your magnets.

I cannot guarantee the rigidity of the device, but I hanged on it with my whole weight (around 70kg/154pounds) and it doesn't show any deformation or cracks.

Feel free to remix or suggest modifications.

Happy printing/climbing!
