Wolfbat (Cosmetic set for the Foxbat nerf blaster)

Wolfbat

You will need the original files for the foxbat, and if you want to replicate my build exactly, some pieces from Corvus's Foxbat muzzle system.

Besides just looking really cool, the Wolfbat slide actually has a slot for the ball detent while priming, which makes it much smoother. It still clicks into place to keep the slide shut when primed.

This also includes the split front block, allowing you to color it differently on the top and bottom, while keeping structural integrity thanks to some dovetails and the side panels.

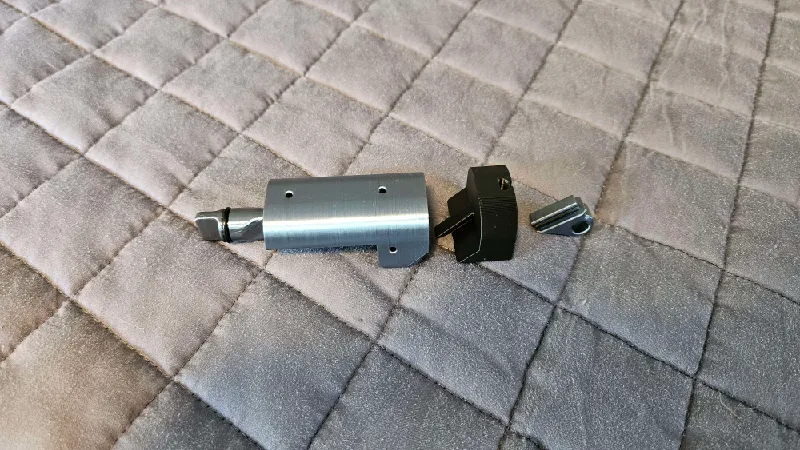

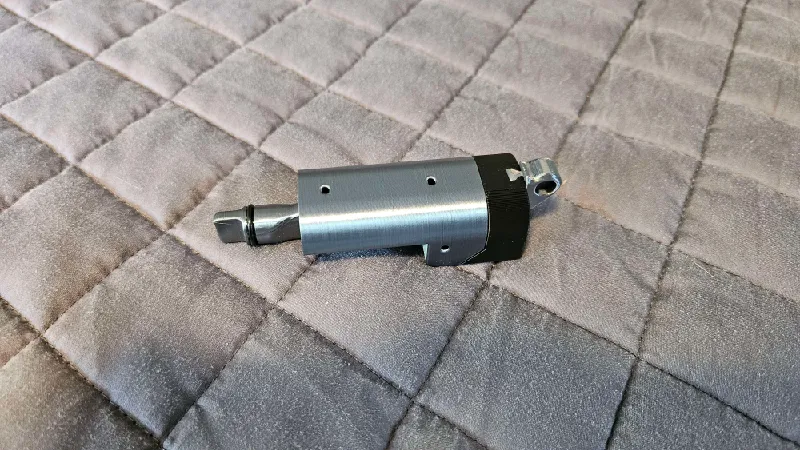

It also has a split ram, allowing easy color changes, a cool “hammer” cosmetic, and a version with a shroud that goes under the vent holes in the slide.

The coloring on the side panels can be done just by swapping the filament color above 6.5mm.

Printing

Pretty self-explanatory. The files are all oriented how you should print them. Really only the slide and side panels need supports.

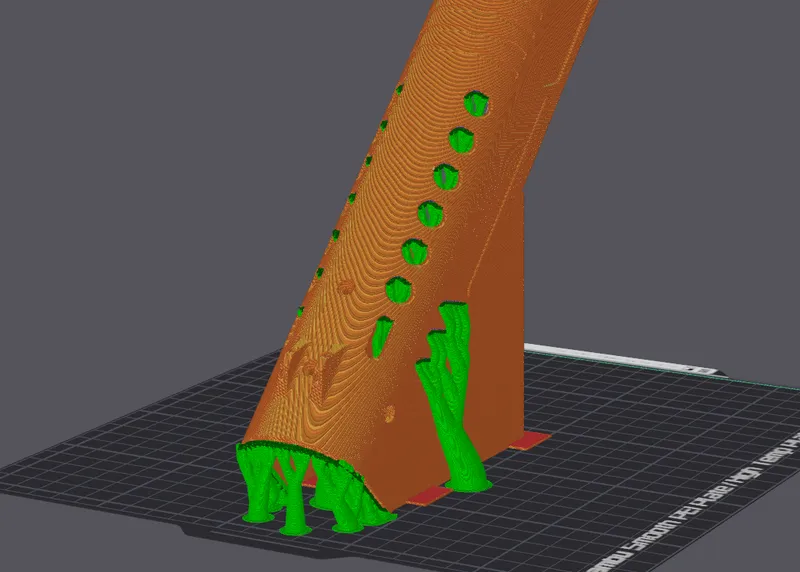

Supports on the slide should look like this:

Hardware

Just the Foxbat kit, you don't need anything extra for this. Actually you need less hardware, because you won't need to bolt the slide pieces together.

Assembly

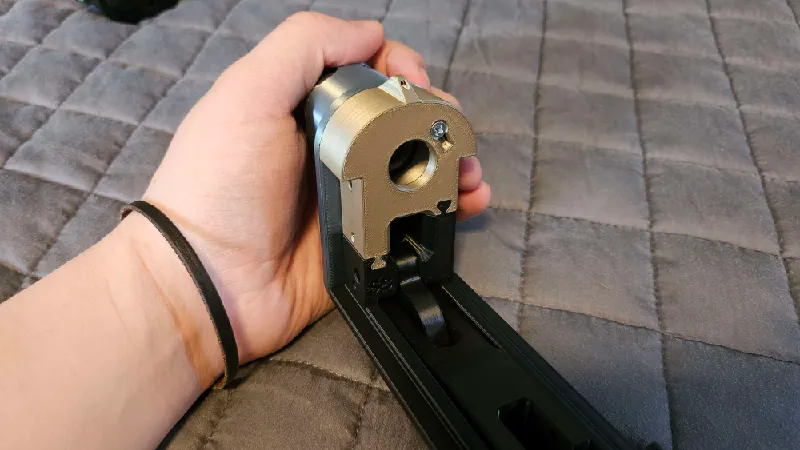

Most of it is super simple, you just slot the dovetail pieces together and then assemble your Foxbat. The slide drops down onto the handle assembly and you're set.

Significant changes to cosmetics, and some functionality.
