HP EliteDesk 800 G3, G4, and G5 PC 10-in Rack Bracket

A 1U bracket to mount an HP EliteDesk 800 G3 , G4, or G5 in a 10-inch rack

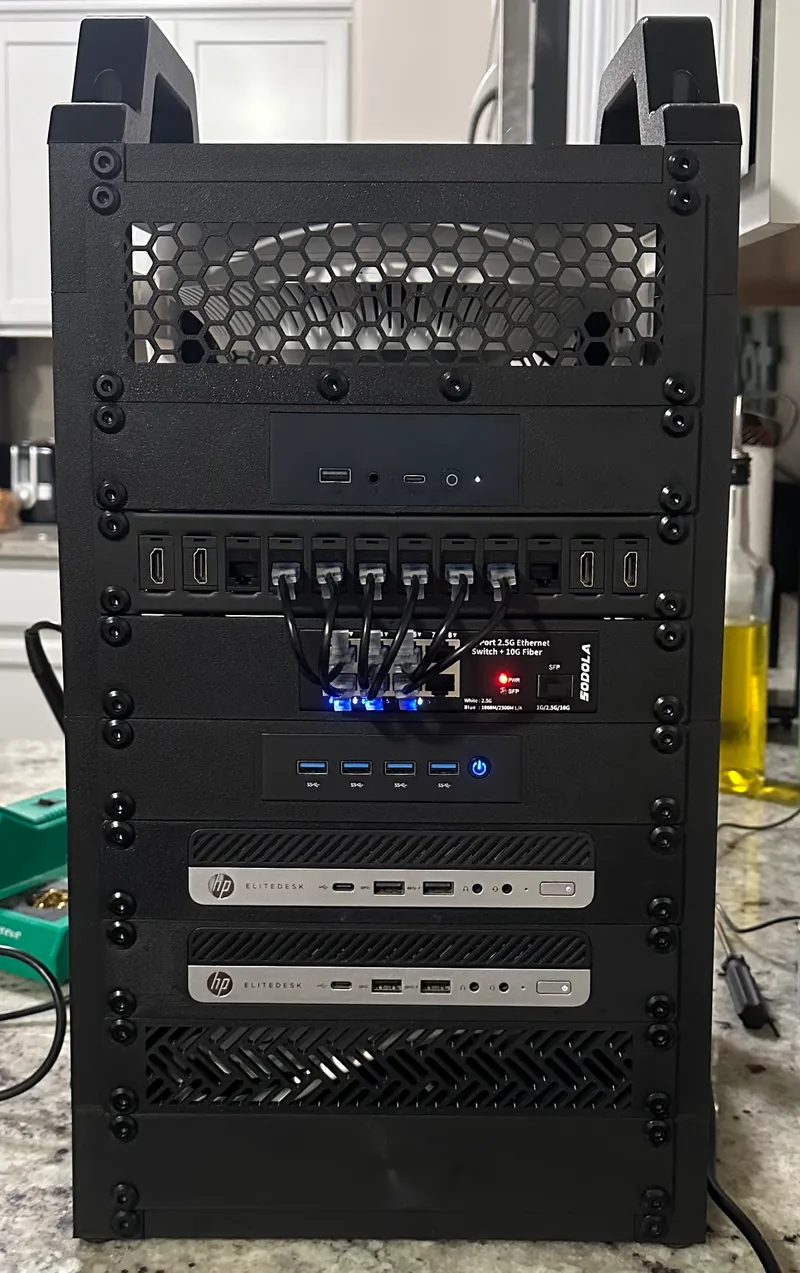

I designed and printed the Skeleten, a 10-inch rack to house my homelab. I wanted it to contain everything I needed, except maybe a NAS.

From top to bottom:

2U - Vented TP-Link EAP610 WiFi AP Bracket

1U - Beelink EQ14 (pfSense firewall)

1U - Patch panel from Amazon

1U - Sodola 8x2.5G + 1x10G SFP Switch Bracket

1U - Minisforum GK41 Bracket (low power Proxmox node)

1U - EliteDesk G3/G4/G5 Bracket (additional Proxmox nodes; one is a G3, one is a G5, both fit the same bracket.

1U - EliteDesk G3/G4/G5 Bracket (additional Proxmox nodes; one is a G3, one is a G5, both fit the same bracket.

1U - Vented blank

1U - Solid blank

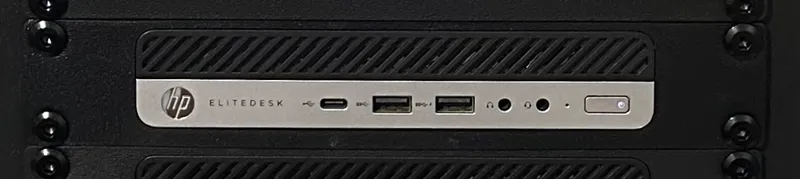

HP EliteDesk 800 G3, G4, and G5 PC Bracket

This bracket has slots on the tray that correspond to the VESA M4 screw holes on the bottom of the PC. It has a rounded opening that is shaped to match the mini-pc’s rounded edges, giving this a smooth flush fit with no gaps. With the calibration of my Bambu A1, this is a near perfect fit.


M4 x 8mm screws can be used to secure the PC to the bracket.
