Minisforum GK41 10-in rack mounting bracket

A 1U bracket to mount a Minisforum GK41 in a 10-inch rack

I designed and printed the Skeleten, a 10-inch rack to house my homelab. I wanted it to contain everything I needed, except maybe a NAS.

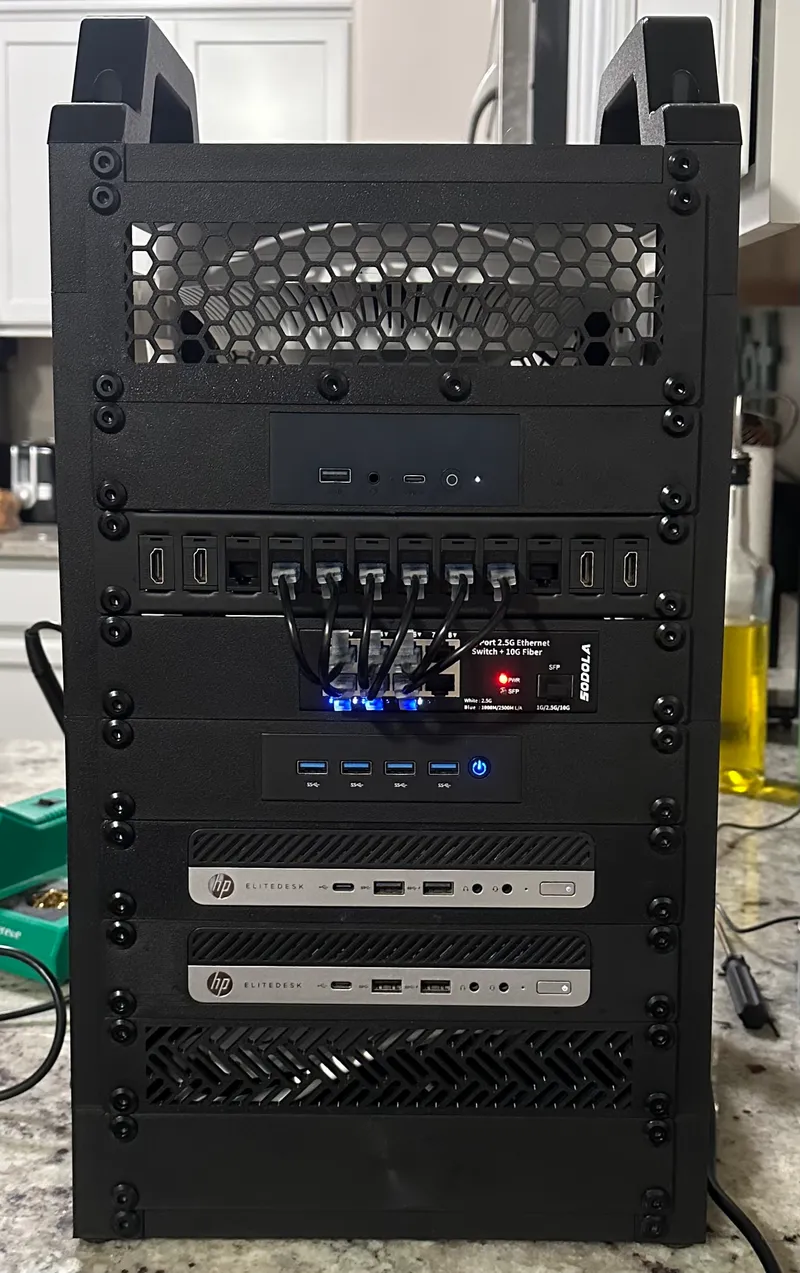

From top to bottom:

2U - Vented TP-Link EAP610 WiFi AP Bracket

1U - Beelink EQ14 (pfSense firewall)

1U - Patch panel from Amazon

1U - Sodola 8x2.5G + 1x10G SFP Switch Bracket

1U - Minisforum GK41 Bracket (low power Proxmox node)

1U - EliteDesk G3/G4/G5 Bracket (additional Proxmox nodes; one is a G3, one is a G5, both fit the same bracket.

1U - EliteDesk G3/G4/G5 Bracket (additional Proxmox nodes; one is a G3, one is a G5, both fit the same bracket.

1U - Vented blank

1U - Solid blank

Minisforum GK41 Bracket

The rubber feet must be removed before inserting the mini-pc into the bracket.

This bracket is a compression fit. If you prefer, it can be secured in the bracket by its mounting holes using commonly found computer screws. The bracket has a filleted recess that is shaped to match the mini-pc’s rounded corners, giving this a smooth flush fit. With the calibration of my Bambu A1, this is a perfect snug fit that allows for plugging and unplugging USB cables in the front and for operation of the power button without slipping in the bracket.
