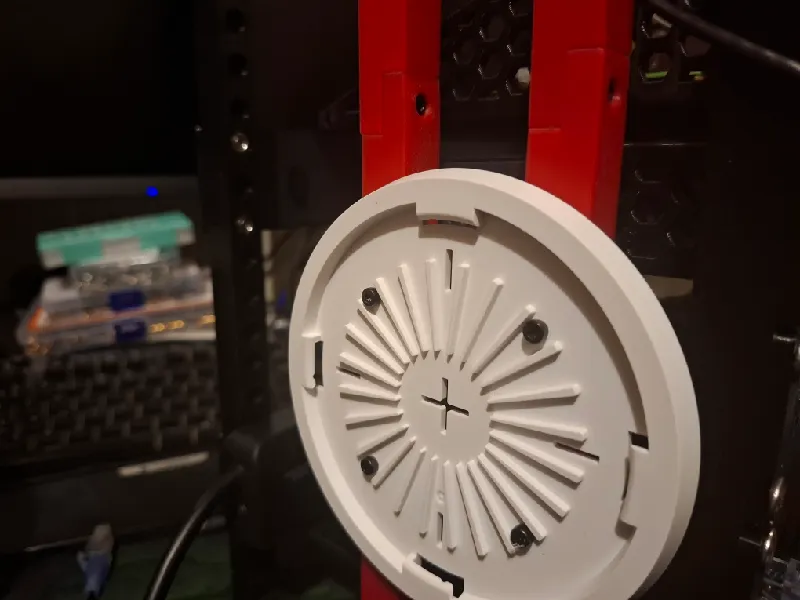

tp-link omada EAP620 side mount for 10 inch rack

I was making the 10 inch rack in 5u variant and wanted to mount a eap620 to the side for a all inclusive network i was building. it may fit other models as long as the spacing is about 53-54mm from outside to outside for mount holes on mount plate

My printer is not big enough to print it all in one, so I had to split the model up. I have attached the full model and both halves.

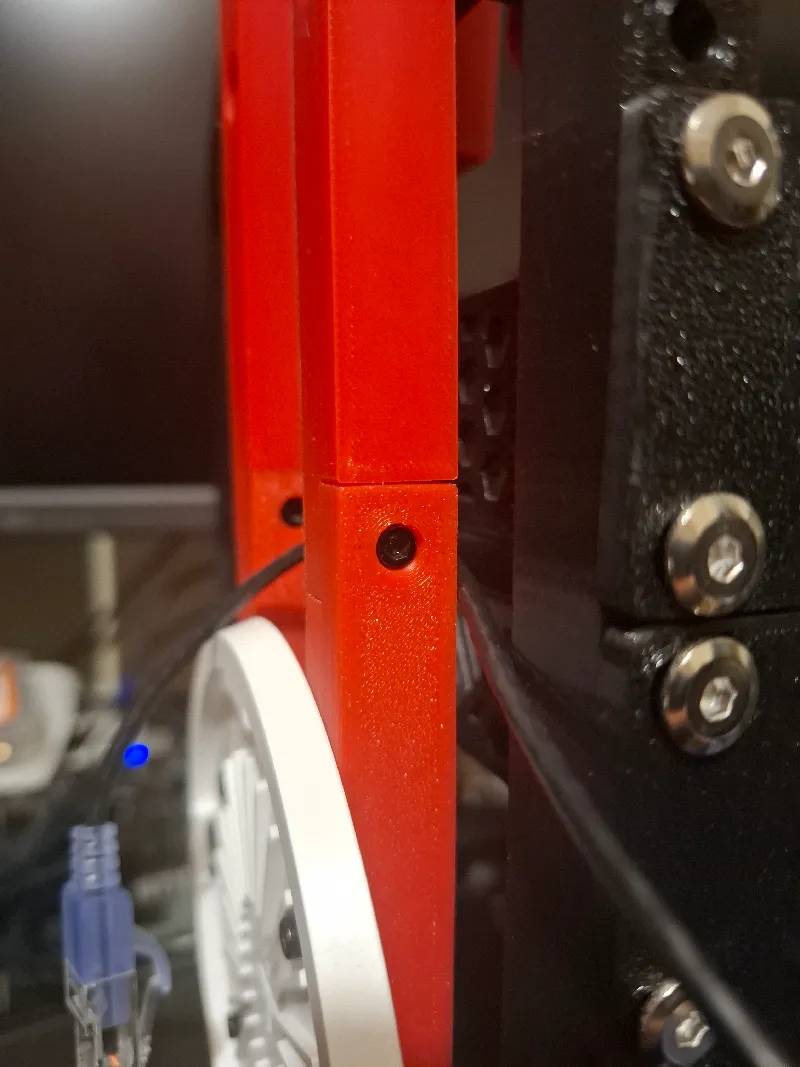

The hardware i used to put it together 1 was a m5 heat set thread and 35mm screw to lock the top over the handle bottom rail.

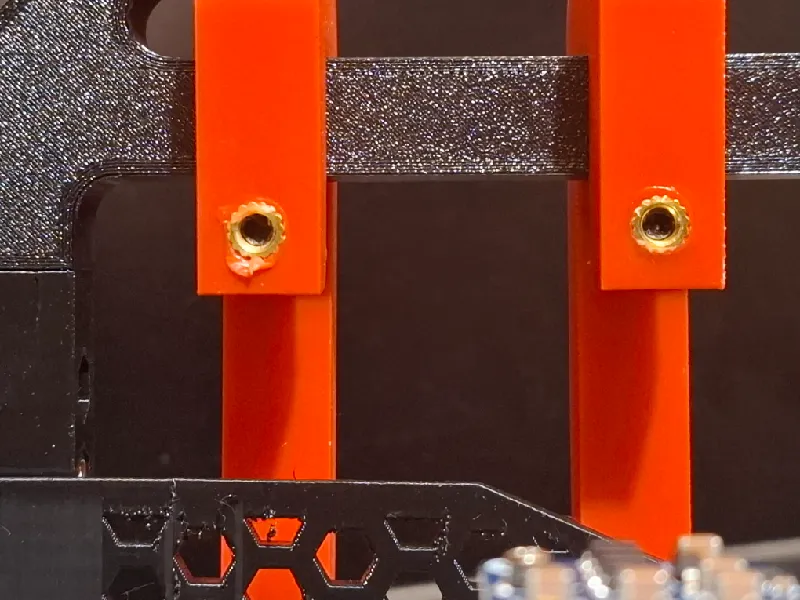

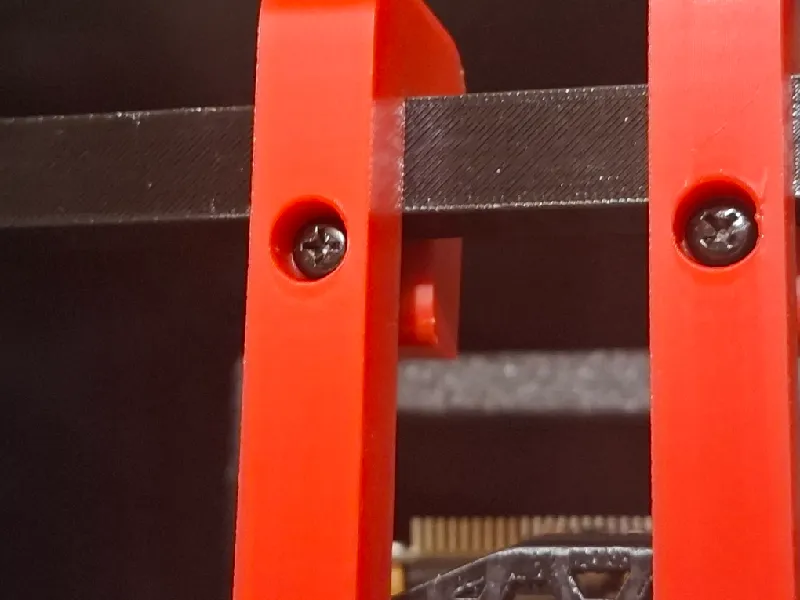

3x m3 heat set threads 1 to attach the 2 halves together and 2 used for the eap mount

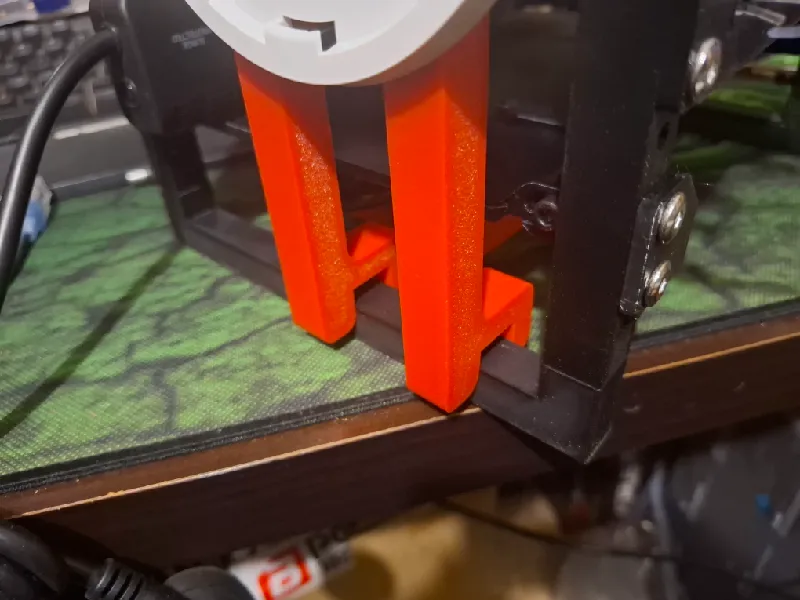

note: the pic of the feet on the bottom rail has been adjusted in the model so they should sit on the bottom rail now for a better fit.

Print Settings

Supports:

No.

Resolution:

0.2 or 0.24

Walls/Perimeters:

At least 3.

Infill:

15% or more.

Filament:

PLA+/PETG/ABS/ASA/PC/Nylon
