Sprite Extruder Toolhead Sensor and PTFE mount

Its a remix of the PTFE Mount for the Sprite Extruder, that includes a Toolhead sensor.
1
1
0
17
updated July 4, 2025

Description

PDF

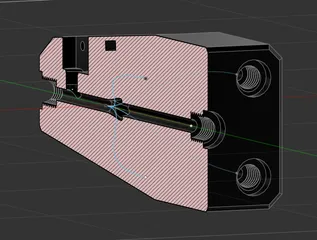

Its a remix of the PTFE Mount for the Sprite Extruder, that includes a Toolhead sensor.

For connection it uses a PC4-M10 Fitting and 2 2x20mm self tapping screws for the sensor.

You need a OMRON D2-F Switch without the Lever and a 5mm ball.

Tags



Model origin

The author remixed this model.

Differences of the remix compared to the original

added a mount for a toolhead / gate sensor.
