TP-Link TL-SG108(PE) | SF1006P 19-inch Rack Mount

A 19-inch, 2-part, modular rack mount for the TP-Link TL-SG108 | TL-SG108PE | TL-SF1006P switches.

I have included the 3MF file as well.

This mount is part of a 19-inch modular rack mount system I designed. You can mix and match the modules with other mounts. Take a look at my models here to find out the other 19-inch mount modules.

Do you like my models? Consider buying me a coffee ;)

Parts

• 3x M5 screws (Min size: 10mm, max size: 16mm).
• 3x M5 hex nuts.

Assembly

OBS.: The modules used in this tutorial are only for illustration purposes, and I'm using it for the whole series. It might not reflect the models you download at this page.

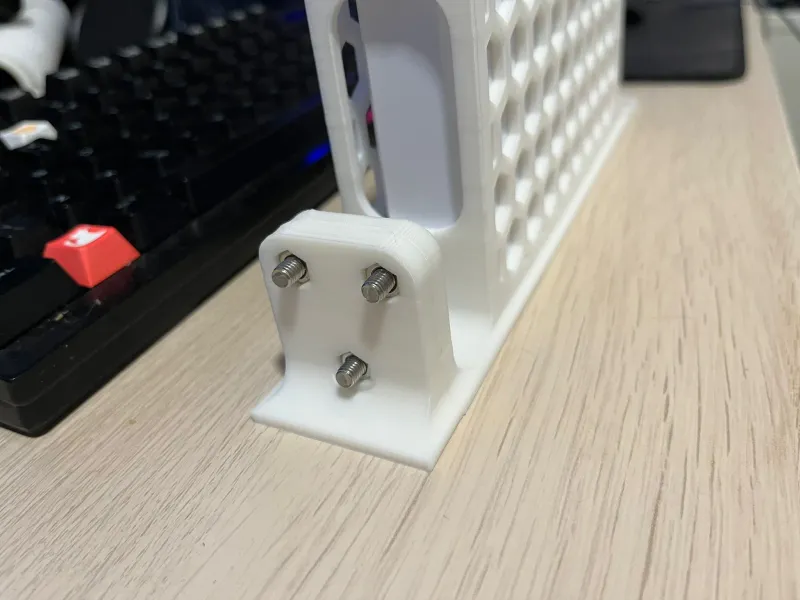

• To assemble the parts, insert the 3 screws into the Right module.

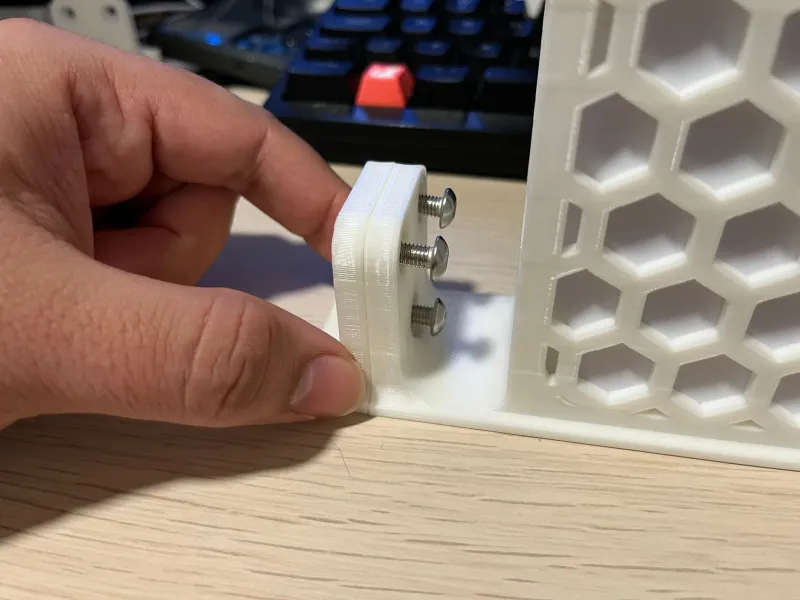

• Then align it with the Left module.

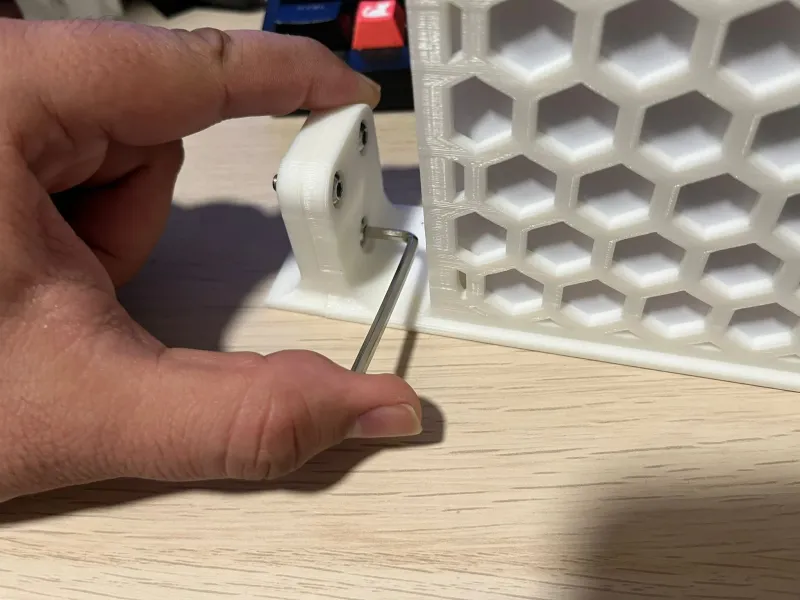

• After that, insert the hex nuts in the screws, and using a screwdriver or Allen key.

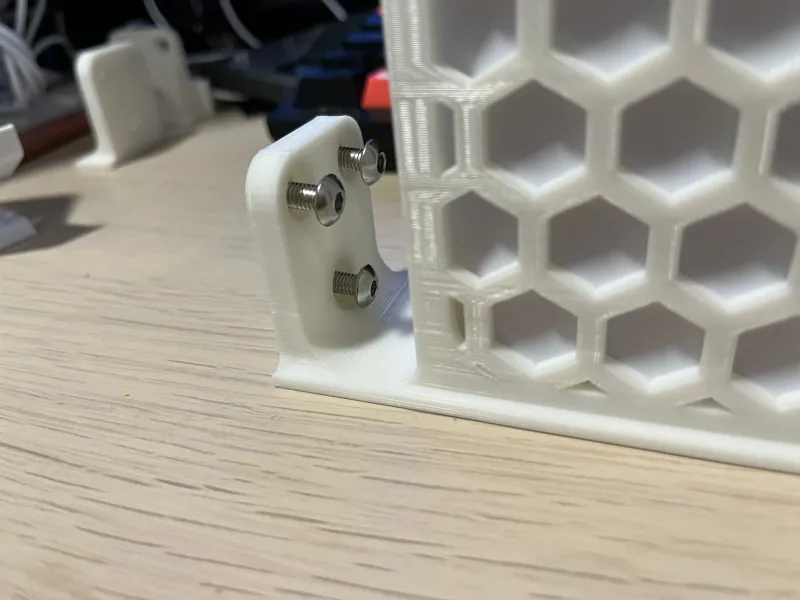

• Tighten the screws until you start feeling resistance and the nuts are securely into place. After that, you can install the mount in your rack.

Print Settings

Supports:
No.

Resolution:
0.2 or 0.24

Walls/Perimeters:
At least 4.

Infill:
20% or more.

Filament:
Any.
