PC in a PC on an AIO (pump cap for corsair design contest)

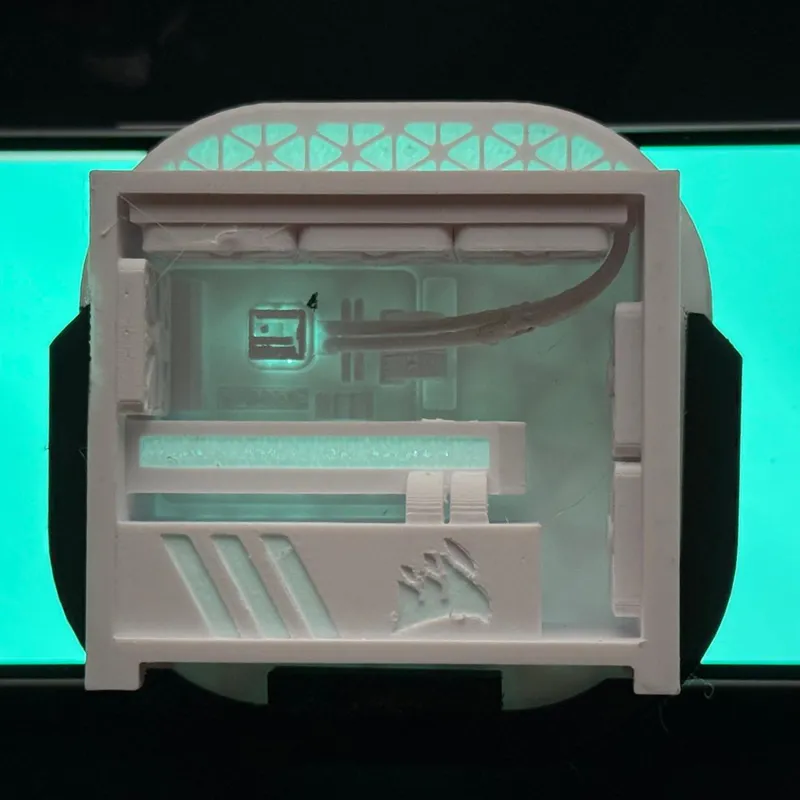

This miniature pc features a Corsair 4000D case, ICUE RX120 fans and an MP400 ssd, only the best for your AIO! It also features translucent sections to allow the AIO's rgb to shine through and give the illusion of rgb lighting within the small pc.

My cap is printed in three pieces, the front plate, bracket and mount. No supports, brim, glue or anything else required for assembly.

Please read:

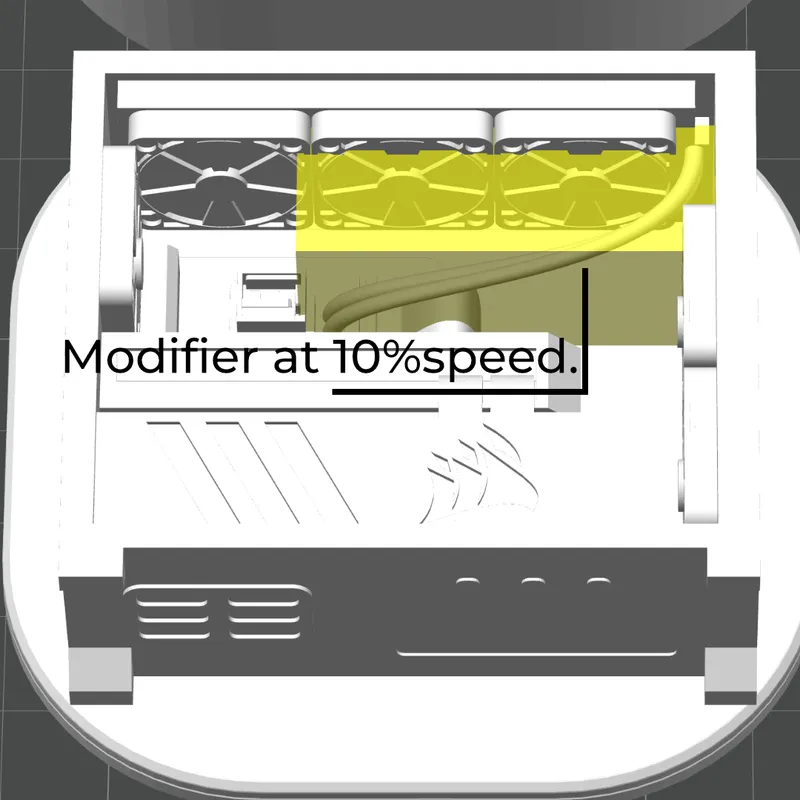

For printing please use bambu 3mf profile files if possible, due to the AIO pipe needing a very specific speed to print. If you need to use the raw model files , add a modifier around the pipe and set it to 10% speed on everything.

Print Settings

Parts how they should be oriented in the slicer:

• Ironing Enabled
• 0.08 mm layers
• Cubic infill
• Rectilinear surface and base patterns.
• Everything else left as default.

Instructions:

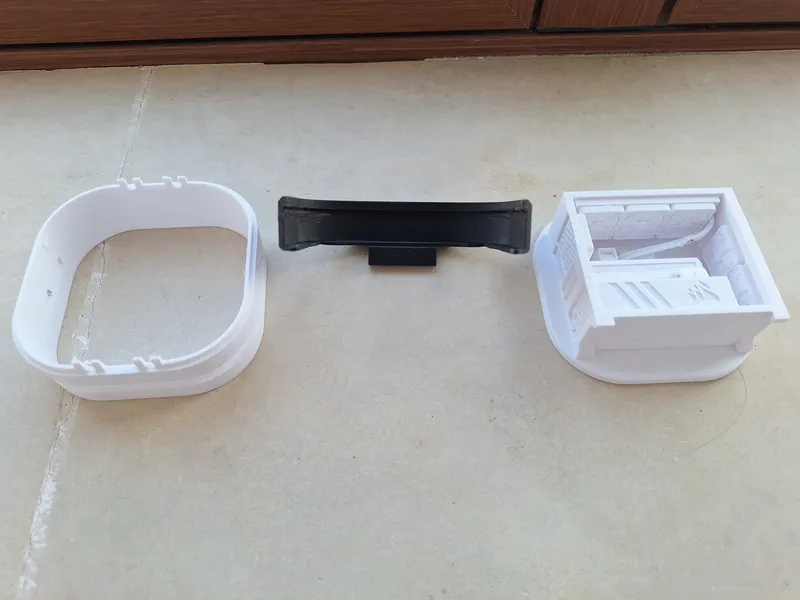

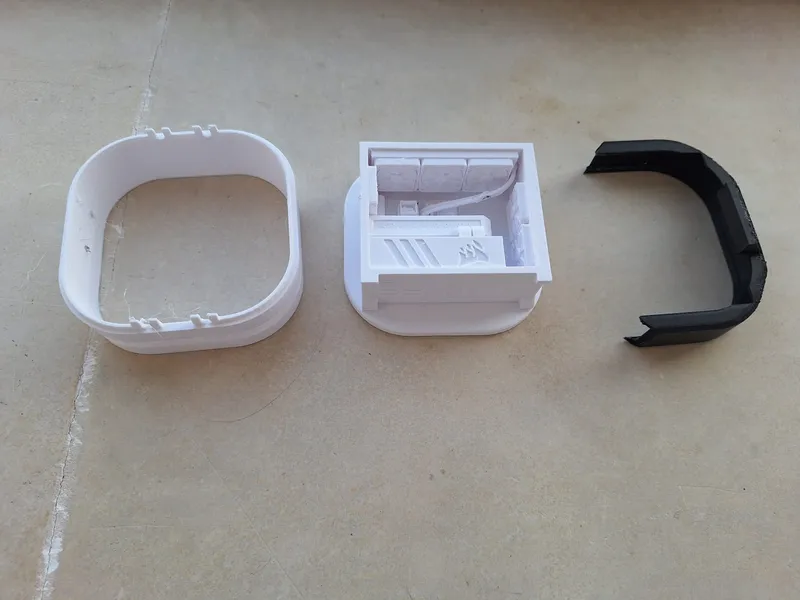

After printing you should be left with these pieces:

Step 1

Loosely put the plate on top of the mount:

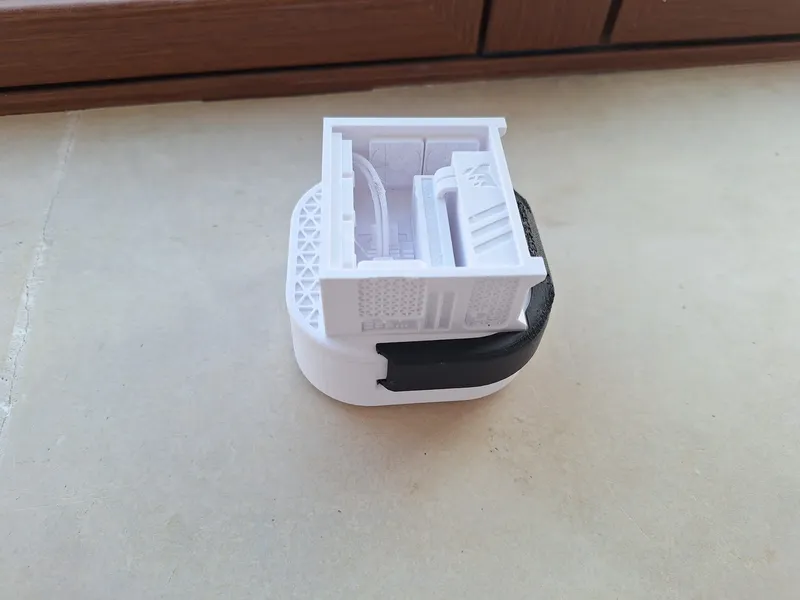

Step 2

Slide the bracket on:

I added the computer, and almost completely overhauled it for the competition.
