Centauri Carbon Cantilever Drop-Pin Panel Hinges v1.0 Beta 0
Hinges allow for quick and easy panel removal.
This is an exclusive model available only to supporters of the creator.
Your funds support the creator's further activity.
2
0
85
updated July 4, 2025
Description

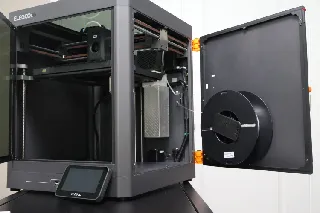

This Centauri Carbon panel hinge set is an improvement over our original version. The most significant improvement is the drop-pin feature, which now enables the panel to be quickly and easily removed. Designed for a 7.5 mm spacer.
Here's a list of notable features:
- Cantilever truss-like design improves vertical stiffness
- Quick panel removal via drop-pins
- Fewer parts with pins integrated
- Lower profile relative to the panel
- More stylish looking?
I am still working on some of the fine details. Regardless, I wanted to make this available to Club members.
