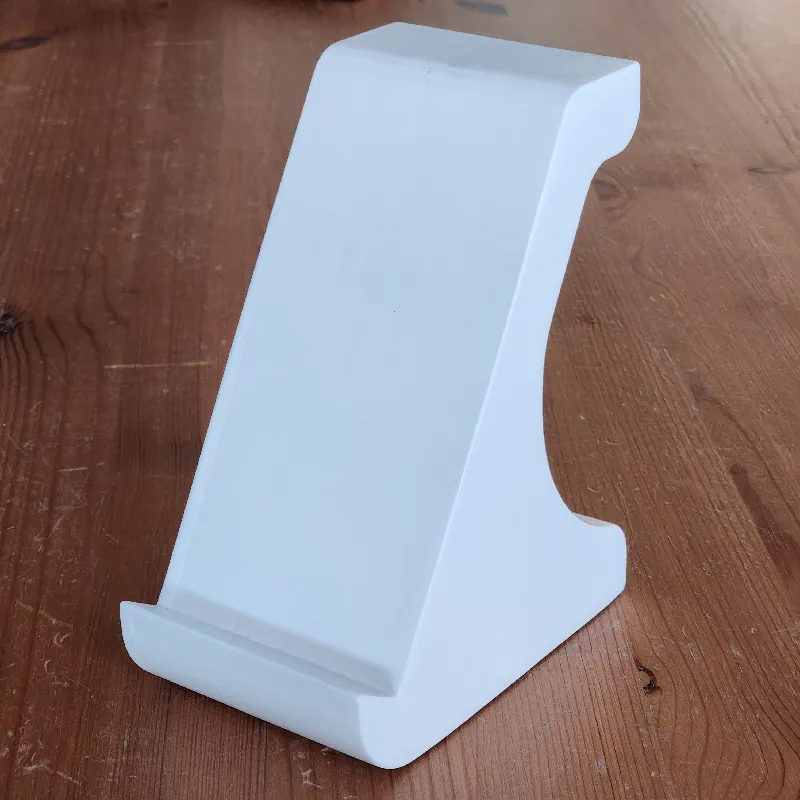

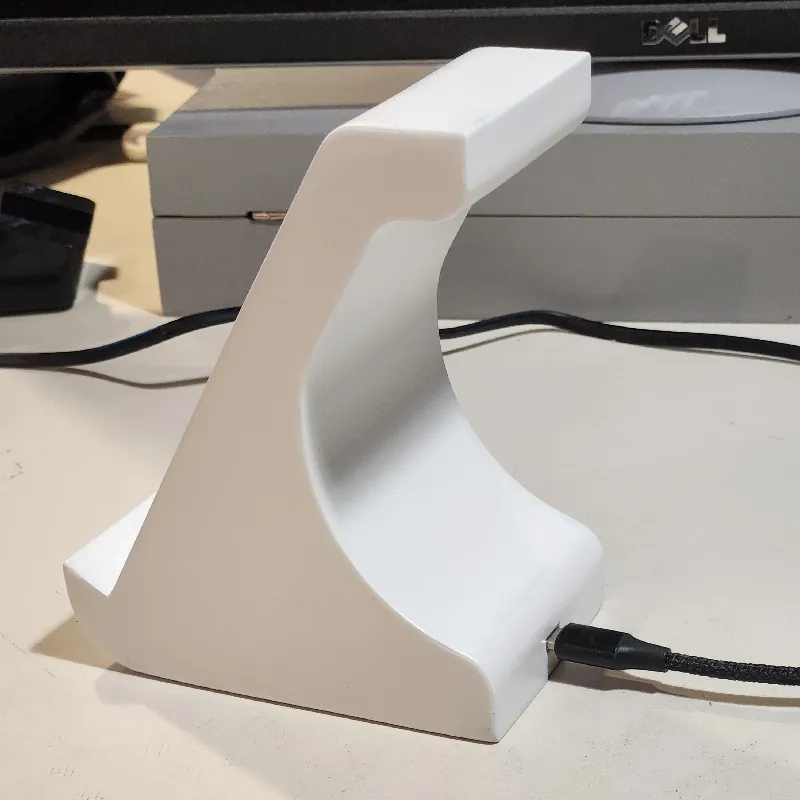

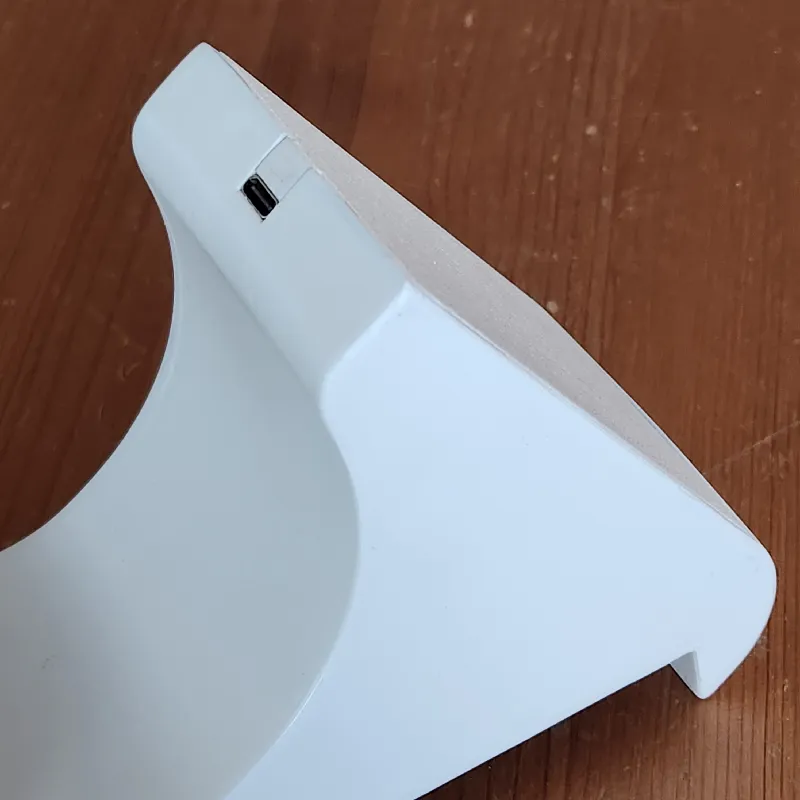

Glyph - Phone Charging Dock

A wireless charging dock for phones. Tested with Samsung S10 and S22.

IMPORTANT: Check wireless phone charging capabilities and phone size before printing.

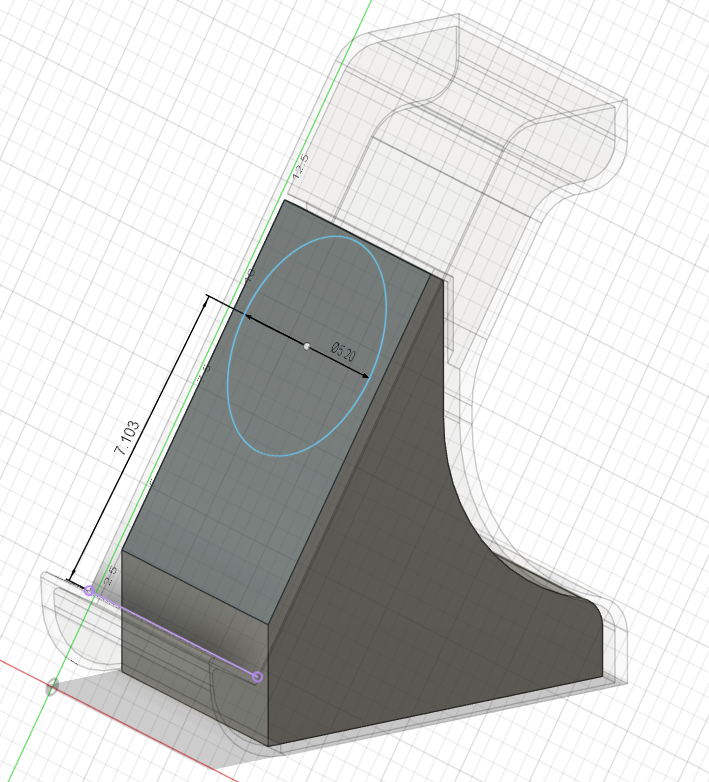

Center of charging coil is located ~7cm up from ledge where phone sits. Make sure that this is compatible with your device.

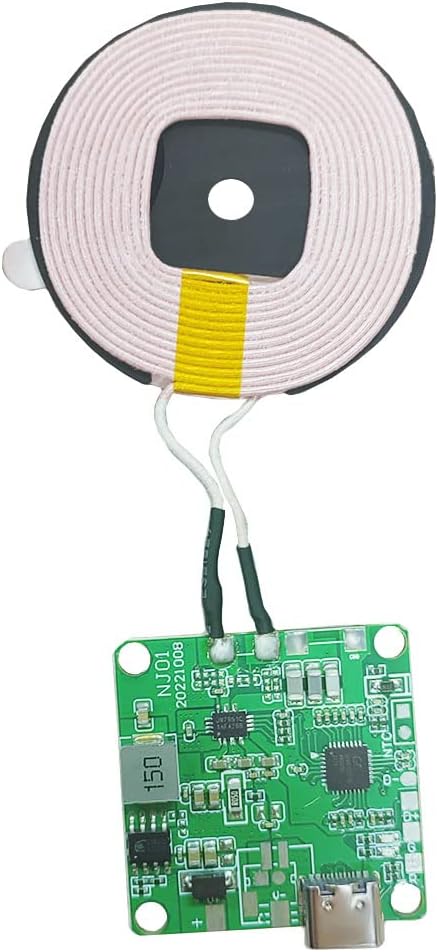

Charger module on Amazon: https://amzn.to/40x2IC3

How to assemble:

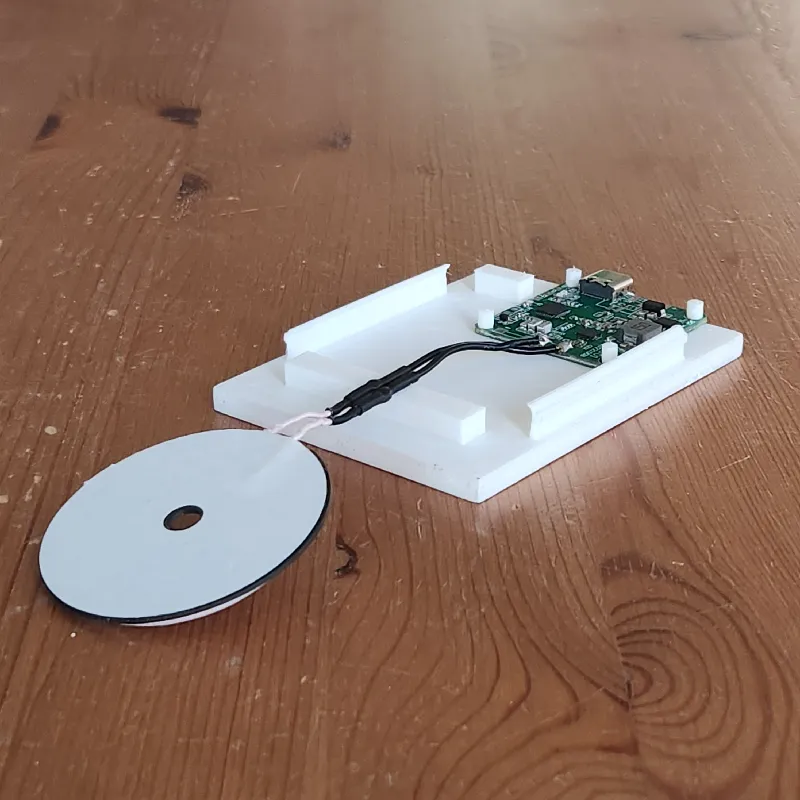

1. Insert PCB into Base.

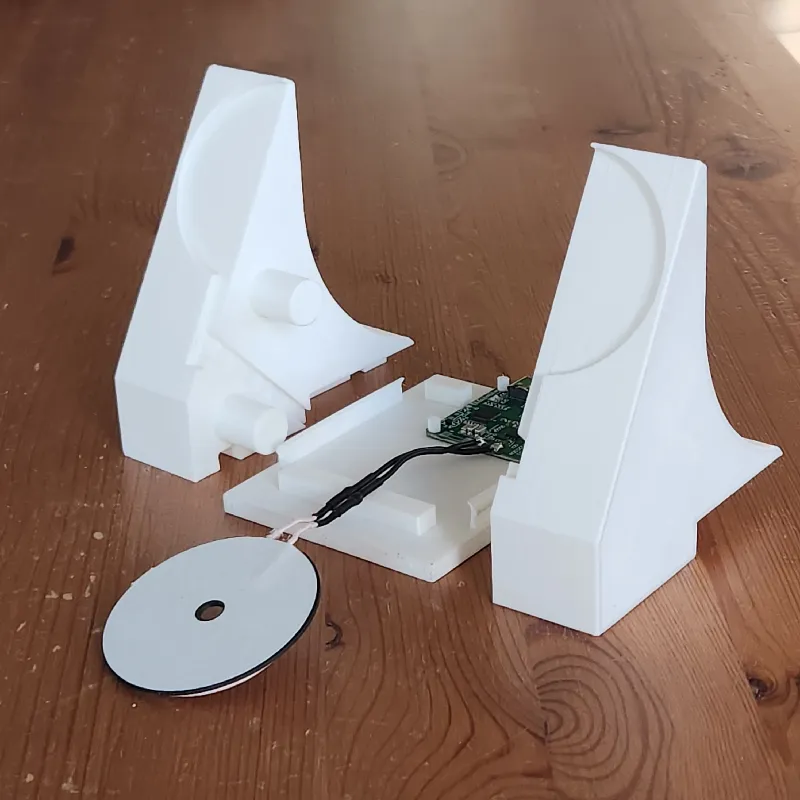

2. Thread wires through inside parts. Then connect these 2 parts.

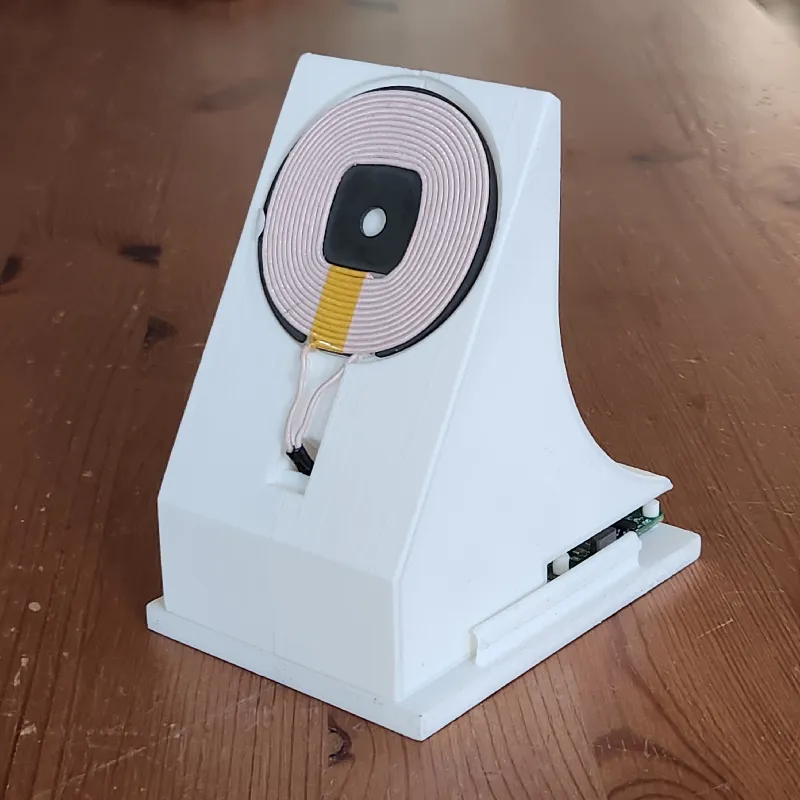

3. Set inner parts on top of the Base.

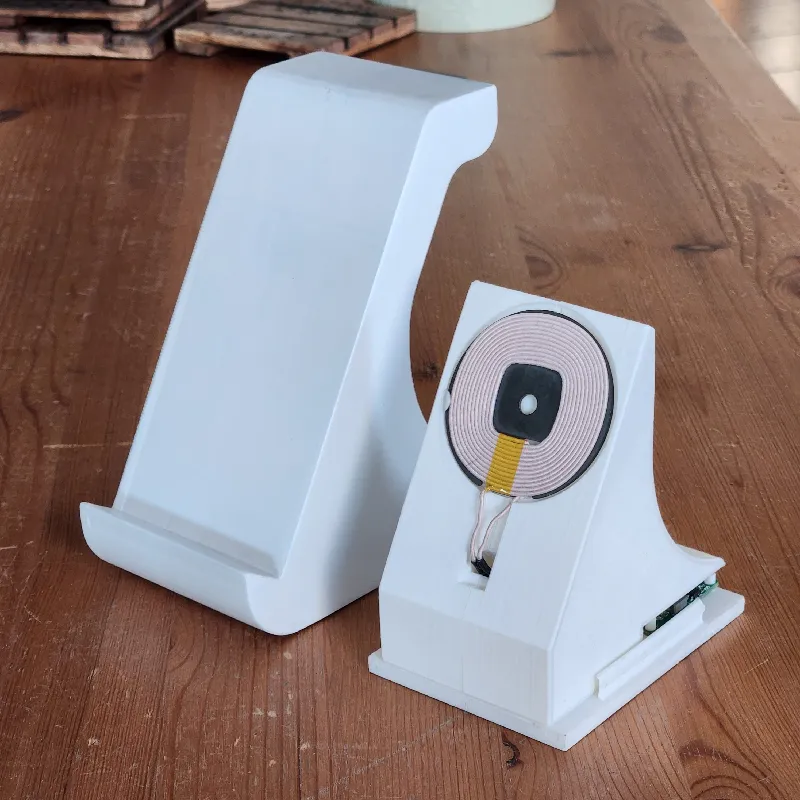

4. Simply slide inner block inside the outer shell. The inner block should click into place once fully inserted.
