Mini woodworking trimming plane with full functions

Mini woodworking trimming plane with full functions

This is a low-angle mini woodworking trimming plane. It has gone through 4 rounds of iterations and finally finalized. It realizes all the standard functions of European woodworking planes and the planing is very smooth.

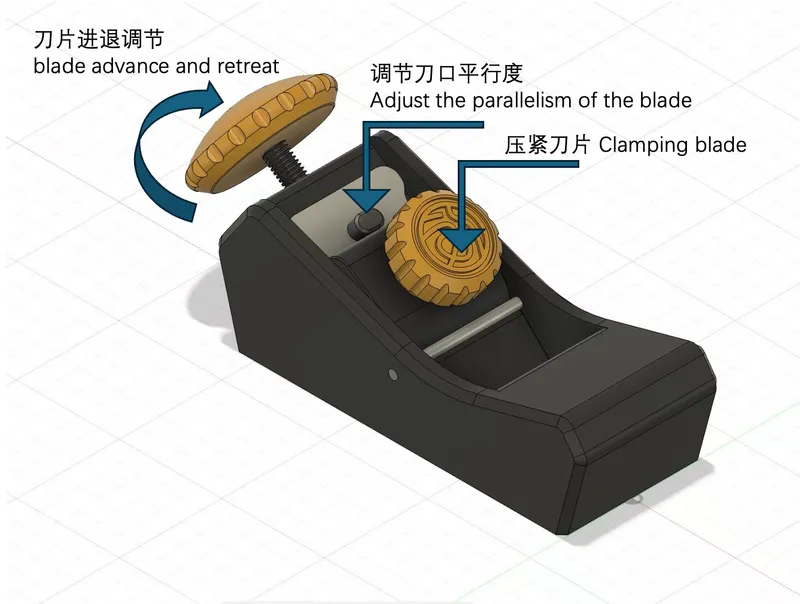

· Curved design modeling suitable for finger pressure and palm push
· The blade advance and retreat is precisely adjusted by the rear nut
· The parallelism of the blade is slightly adjusted by the lever of the sliding pin
· 35-degree frog seat, 25-degree blade edge
· The upright planer blade（bevel down） will obtain a 35-degree low-angle planing
· The reverse planer blade（bevel up）  can obtain a 60-degree high-angle planing (scraping)
Please press the blade appropriately when adjusting the blade

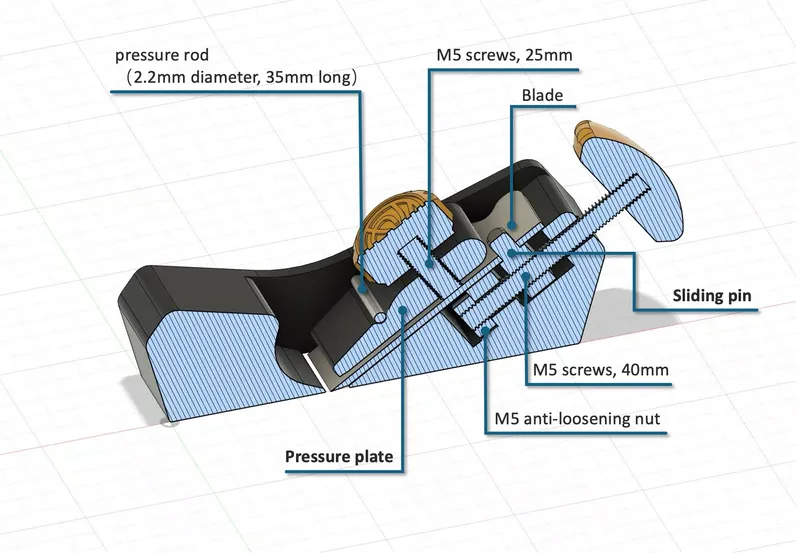

Other materials to be prepared:

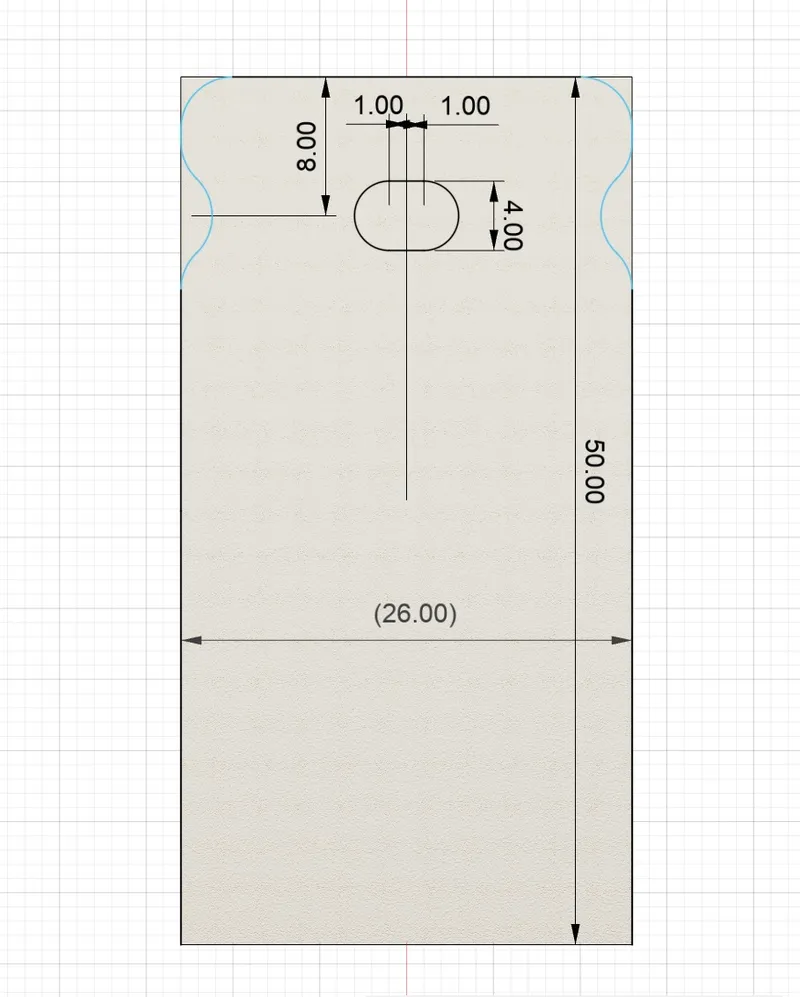

1. Blade (I bought it at Home Depot), 26mmX50mm, thickness 1.5mm, edge angle is 25 degrees, the opening size is as follows:

2. Two M5 (5mm) screws, 25mm and 40mm long respectively

3. 2.2mm diameter, 35mm long steel rod as the pressure rod

4. M5 anti-loosening nut
5. If the threads of the pressure plate and sliding pin feel tight, please use M5 tapping tap to tap

The matching design box is here：https://www.printables.com/model/1333556-box-for-mini-woodworking-trimming-plane
