Thor Zone Mjolnir: Retainer for ASUS Dual NVIDIA RTX 4070

Instructions

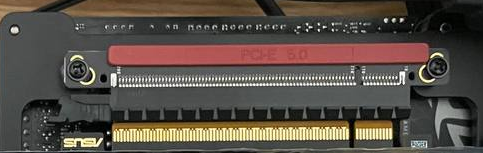

1. The standoffs for the riser cable must be raised a little bit, since it will put force onto the back side of the graphics card. It also reduces the risk of the riser cable touching the CPU mounting backplate. You need 2 x ThorZoneMjolnir_RiserCableStandoffRaisers.3mf:

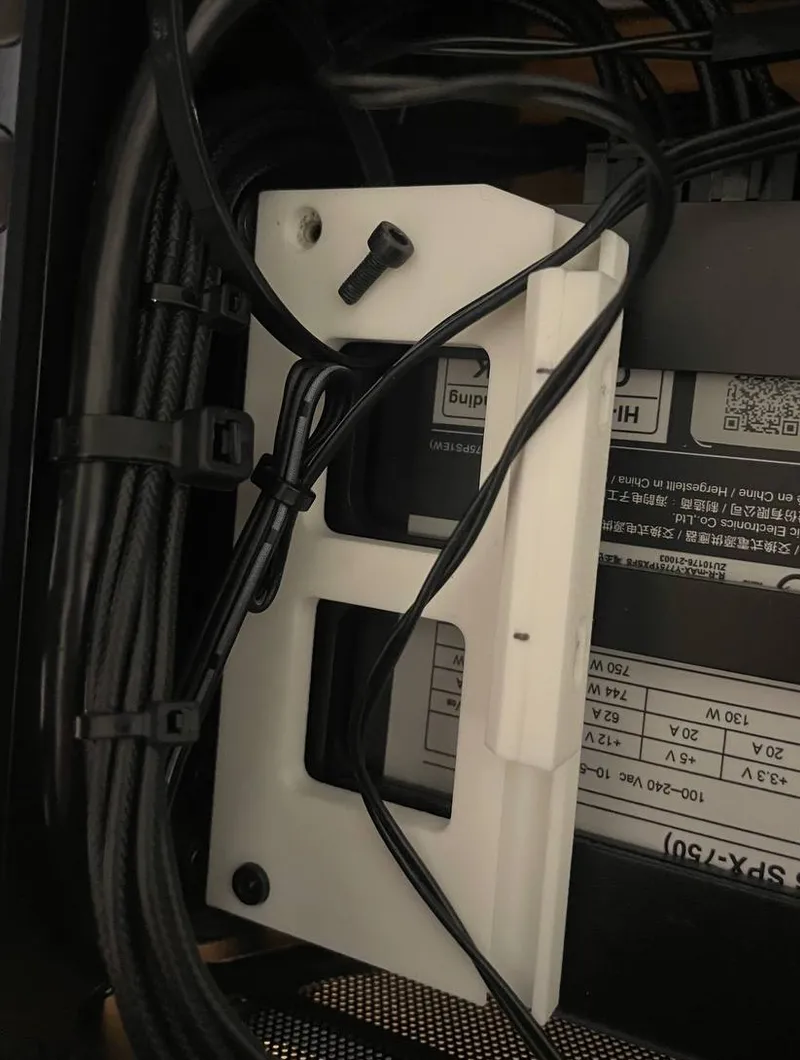

2. For this retainer, you will need to replace two screws which hold the inner frame of the case together with 2 x M3 x 8 mm (thread length) cylinder head bolts:




3. Then, you can mount the graphics card using its three retainer threads using two M3 x 10 mm (thread length) cylinder head bolts.

Warning

The graphics card will fit, but you will likely scratch it a little bit once you put the frame into the outer shell of the Thor Zone Mjolnir.
